AXIS D2123-VE Radar — Black
AI-powered 270° outdoor perimeter radar — 30,000 m² coverage, 24/7
- 270° horizontal field of detection — wider coverage from a single unit
- Human recognition zone of 30,000 m² (323,000 sq ft)
- Vehicle detection up to 200 m (650 ft)
- AI classification of humans, vehicles, and unknown objects
- Radar-video fusion with ARTPEC-9 PTZ cameras for verified alarms
- IP66/IP67, IK09/IK10 — operates in darkness, fog, and adverse weather
- PoE powered with PoE out — single cable drop, no extra run needed
- Dynamic RGB LED strip for deterrence — visible 60 m in daylight
AXIS D2123-VE Radar delivers AI-powered 270° perimeter detection across up to 30,000 m², 24/7, with radar-video fusion for verified alarms and minimal false positives.
$4,499.00 USD
AXIS D2123-VE Radar — 270° AI-Powered Perimeter Detection, 24/7
The AXIS D2123-VE Radar (Black) is a professional outdoor perimeter security radar built on the ARTPEC-9 processor with a dedicated deep learning processing unit (DLPU). It delivers a 270° horizontal field of detection and covers up to 30,000 m² (323,000 sq ft) for human detection — operating reliably 24/7 in complete darkness, fog, rain, and adverse weather conditions where conventional cameras fail.
Radar-Video Fusion for Fewer False Alarms

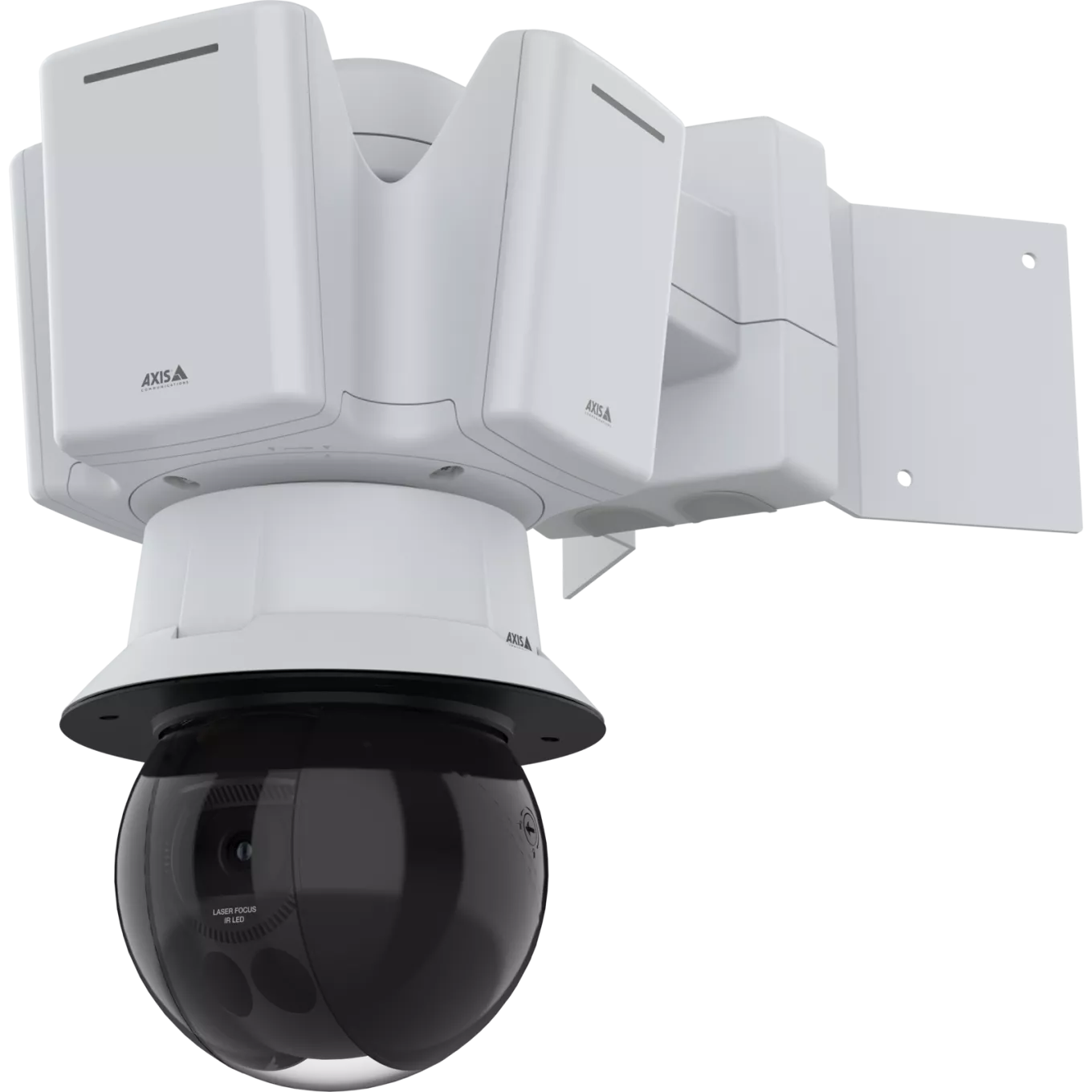

AXIS D2123-VE integrates seamlessly with ARTPEC-9 PTZ cameras for radar-video fusion — a two-layer detection approach where the radar first detects and AI-classifies an object, then a second layer of video analytics validates the trigger before an alarm is raised. This dramatically reduces false alarms and ensures security teams act on verified events only. The radar can also trigger automated responses such as activating a strobe siren, initiating PTZ autotracking, or sending notifications via HTTP/HTTPS/MQTT.
Box-Shaped Detection Zones for Precise Coverage Planning
Unlike traditional radial radar zones, AXIS D2123-VE uses box-shaped detection and recognition zones — enabling precise, gap-free coverage of defined areas such as building perimeters, parking lots, yards, and critical infrastructure boundaries. Multiple configurable zones support line-crossing detection, exclusion zones, speed and object-type filters, and adjustable trigger durations.
Designed for Easy Installation

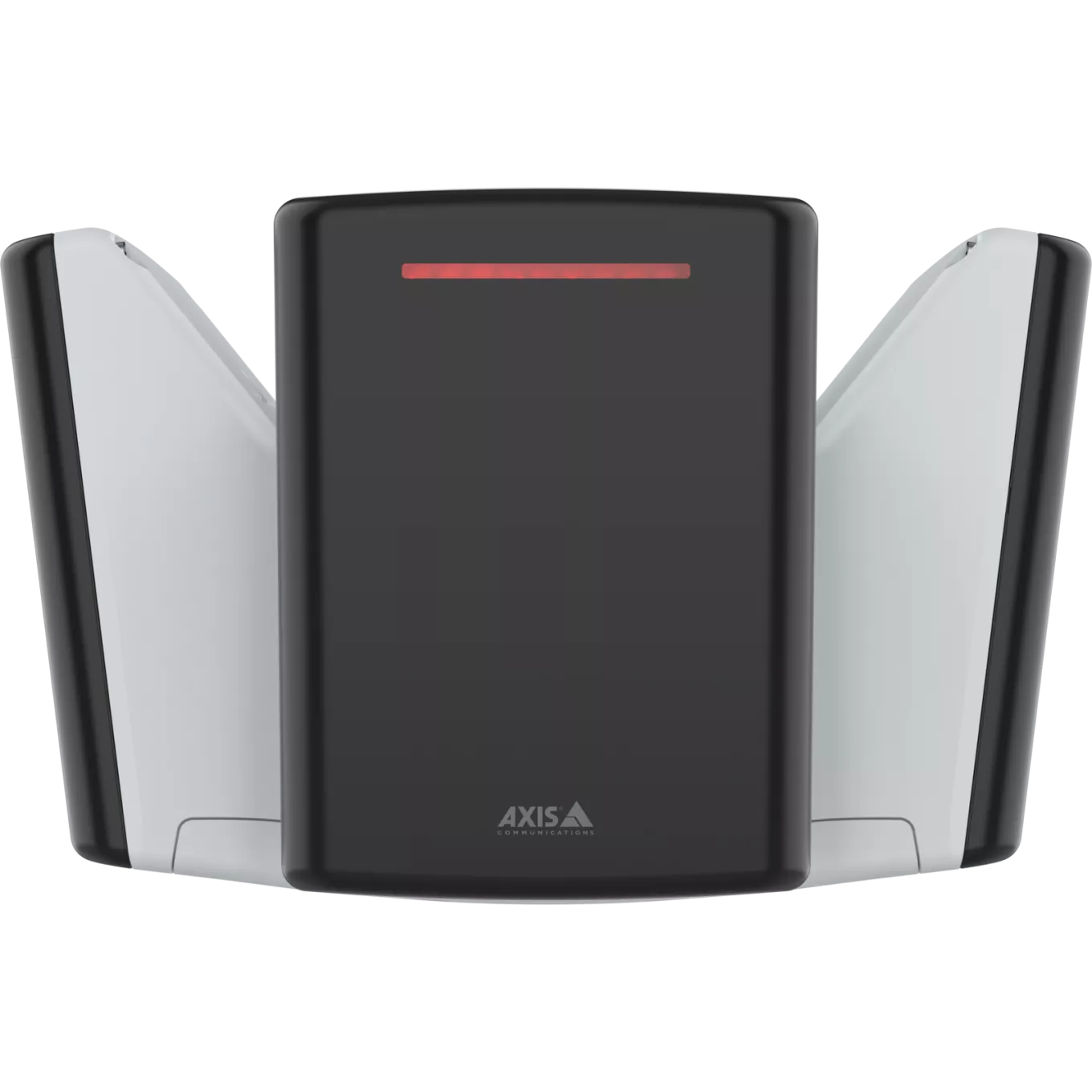

AXIS D2123-VE uses the same mounting interface as Axis PTZ cameras, simplifying integration into existing infrastructure. A single PoE cable carries both power and data, and the built-in PoE output means you can power an adjacent PTZ camera without running a second cable drop. The dynamic RGB LED strip provides daylight-visible deterrence up to 60 m and can be configured with custom light patterns for alerting or warning.
Enterprise-Grade Cybersecurity
Powered by Axis Edge Vault — the hardware-based cybersecurity platform with a FIPS 140-3 Level 3 certified secure element — AXIS D2123-VE protects device identity, cryptographic keys, and the integrity of all video and data. Signed OS, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit), IEEE 802.1X/MACsec network security, and support for OAuth 2.0 and OpenID are all built in. TAA compliant for government and public-sector deployments.
Technical Specifications
| Field of Detection | Horizontal: 270° |
| Human Recognition Zone | 30,000 m² (323,000 sq ft) |
| Vehicle Detection Range | Up to 200 m (650 ft) |
| Person Recognition Range | Up to 140 m (450 ft) |
| Radial Speed | Up to 80 km/h (50 mph) |
| Sensor Type | FMCW (Frequency Modulated Continuous Wave) |
| Frequency | 24.05–24.25 GHz, license-free |
| AI Classification | Humans, vehicles, unknown |
| SoC | ARTPEC-9 with Deep Learning Processing Unit (DLPU) |
| Memory | 2 GB RAM, 8 GB Flash |
| Power | PoE IEEE 802.3bt Type 2 Class 4 — Typical 11.5 W, Max 19.6 W |
| Dynamic LED Strip | RGB LEDs (red pattern shown) — visible up to 60 m in daylight |
| Housing / IP Rating | IP66/IP67, IK09/IK10, NEMA 4X — aluminum and plastic |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Mounting Height | Recommended 4–10 m (13–33 ft) |
| Weight | 5,200 g (11.5 lb) |
| Storage | microSD/SDHC/SDXC, NAS |
| Cybersecurity | Axis Edge Vault — FIPS 140-3 Level 3, signed OS, secure boot |
| Certifications | CE, FCC, UL, RCM — TAA Compliant |
| Warranty | 5-year warranty |
| Part Number | 03125-001 |
Typical Applications
AXIS D2123-VE is suited for perimeter protection at critical infrastructure, airports, ports, data centers, utility facilities, campuses, and city surveillance deployments where large-area 24/7 detection is required regardless of lighting or weather conditions.
Also available in White (03126-001). For 180° narrower coverage, see the AXIS 180° Radar (03123-001).
