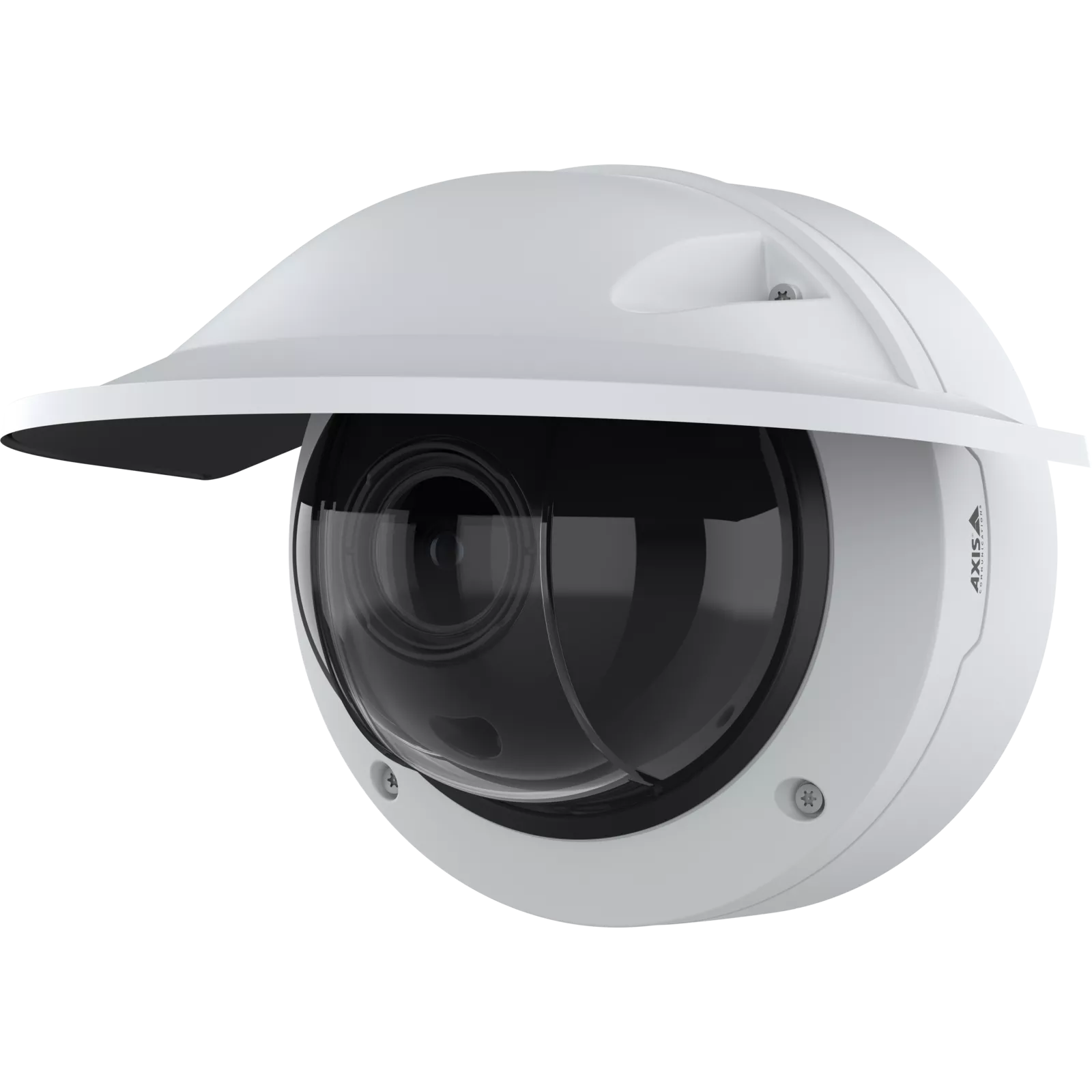

AXIS Q3556-LVE Dome Camera
Advanced 4 MP AI-powered dome with audio analytics
- Outstanding image quality in 4 MP
- Next-generation AI-powered analytics
- IR-shielded dome to prevent reflections
- AXIS Audio Analytics preinstalled
- Built-in cybersecurity with Axis Edge Vault
Part Numbers:-
AXIS Q3556-LVE 51 mm: 03205-001
AXIS Q3556-LVE 10 mm: 03204-001
$1,489.00 USD
Advanced 4 MP dome camera with AI analytics. Outstanding image quality thanks to Forensic WDR, Lightfinder 2.0 and Optimized IR with IR shielded dome.
Robust, IP66/IP6K9K/IK10 aluminum casing and included weather shield.
Varifocal 14-51mm P-iris lens.
Multiple, individually configurable streams, AV1/H.264/H.265 with zipstream in up to 4MP @ 120fps.
Acoustic sensors for audio analytics. Supervised digital input and output. Electronic Image Stabilization. Case-open sensor. Shock detector. Level assistant.
Axis Edge Vault with FIPS 140-3 level 3 certified. Support for SD card storage.
Advanced AI analytics for object classification, counting, audio detection, masking and more.
Powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy.
Part Numbers:-
AXIS Q3556-LVE 51 mm: 03205-001
AXIS Q3556-LVE 10 mm: 03204-001
Technical specifications
Key specifications: video resolution up to 2688×1512; IP66, IP6K9K rated; IK10 vandal-resistant; operating range -50 to 55 °C; PoE Class 4 powered; Forensic WDR. Manufacturer part number .
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/1.8" |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) * | 0.04 / 0.01 lux |
| Min illumination/ light sensitivity (B/W) | 0 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 2688×1512 |
| Max frames per second | 100/120 |
| Day and Night functionality | Yes |
| Electronic image stabilization | Yes |
Lens
| Specification | Value |
|---|---|
| Focal length * | 13 – 51 / 4.7 – 10 mm |
| Horizontal field of view * | 33.1 – 8.5 / 101.8 – 44.0 ° |
| Vertical field of view * | 18.5 – 4.8 / 54.0 – 24.6 ° |
Pan Tilt Zoom
| Specification | Value |
|---|---|
| Remote PTRZ | – |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| AV1 | On |
Audio
| Specification | Value |
|---|---|
| Audio Support | – |
| Built-in microphone | – |
Network
| Specification | Value |
|---|---|
| PoE Class | 4 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
| Axis Edge Vault | Yes |
General
| Specification | Value |
|---|---|
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | -50 to 55 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66, IP6K9K |
| Designed for repaint | Yes |
| Sustainability | PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | 6.39 lbs |
|---|---|
| Dimensions | 9.72 × 10.71 × 7.99 in |
| Product Number | 03204-001, 03205-001 |
| Warranty | 5 Year Warranty |
| Manufacturer | Axis Communications |
