AXIS D2122-VE Radar
,

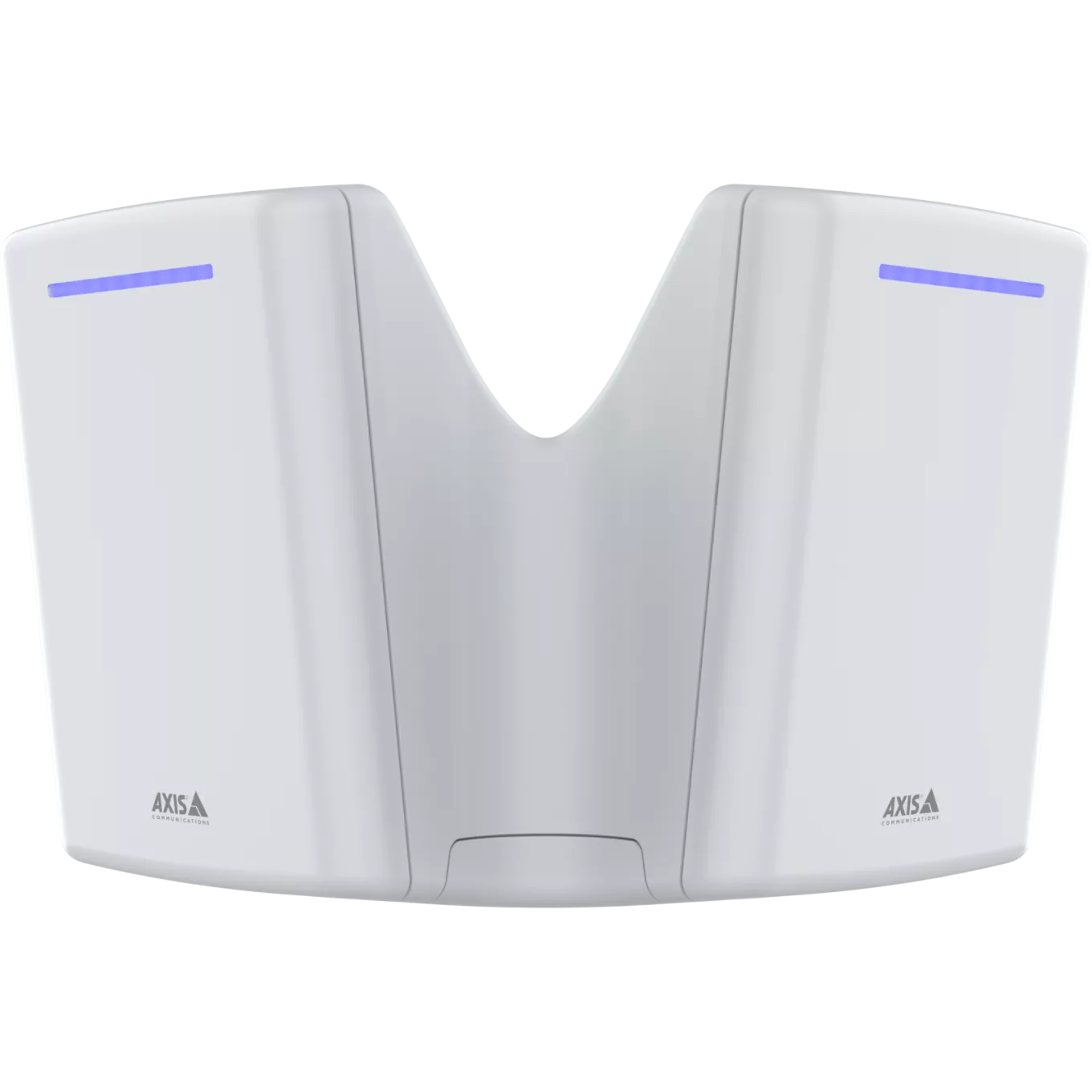

AXIS D2122-VE Radar — White

AI-powered 180° outdoor perimeter radar — 20,000 m² coverage, 24/7

  • 180° horizontal field of detection for wide-area perimeter coverage
  • Human recognition zone of 20,000 m² (215,000 sq ft)
  • Vehicle detection up to 200 m (650 ft)
  • AI classification of humans, vehicles, and unknown objects
  • Radar-video fusion with ARTPEC-9 PTZ cameras for verified alarms
  • IP66/IP67, IK09/IK10 — operates in darkness, fog, and adverse weather
  • PoE powered with PoE out — single cable drop, no extra run needed
  • Dynamic RGB LED strip for deterrence — visible 60 m in daylight

AXIS D2122-VE Radar delivers AI-powered 180° perimeter detection across up to 20,000 m², 24/7, with radar-video fusion for verified alarms and minimal false positives.

$3,499.00 USD

AXIS D2122-VE Radar — 180° AI-Powered Perimeter Detection, 24/7

The AXIS D2122-VE Radar (White) is a professional outdoor perimeter security radar built on the ARTPEC-9 processor with a dedicated deep learning processing unit (DLPU). It delivers a 180° horizontal field of detection and covers up to 20,000 m² (215,000 sq ft) for human detection — operating reliably 24/7 in complete darkness, fog, rain, and adverse weather conditions where conventional cameras fail.

Radar-Video Fusion for Fewer False Alarms

AXIS D2122-VE integrates seamlessly with ARTPEC-9 PTZ cameras for radar-video fusion — a two-layer detection approach where the radar first detects and AI-classifies an object, then a second layer of video analytics validates the trigger before an alarm is raised. This dramatically reduces false alarms and ensures security teams act on verified events only. The radar can also trigger automated responses such as activating a strobe siren, initiating PTZ autotracking, or sending notifications via HTTP/HTTPS/MQTT.

Box-Shaped Detection Zones for Precise Coverage Planning

Unlike traditional radial radar zones, AXIS D2122-VE uses box-shaped detection and recognition zones — enabling precise, gap-free coverage of defined areas such as building perimeters, parking lots, yards, and critical infrastructure boundaries. Multiple configurable zones support line-crossing detection, exclusion zones, speed and object-type filters, and adjustable trigger durations.

Designed for Easy Installation

AXIS D2122-VE uses the same mounting interface as Axis PTZ cameras, simplifying integration into existing infrastructure. A single PoE cable carries both power and data, and the built-in PoE output means you can power an adjacent PTZ camera without running a second cable drop. The dynamic RGB LED strip provides daylight-visible deterrence up to 60 m and can be configured with custom light patterns for alerting or warning.

Enterprise-Grade Cybersecurity

Powered by Axis Edge Vault — the hardware-based cybersecurity platform with a FIPS 140-3 Level 3 certified secure element — AXIS D2122-VE protects device identity, cryptographic keys, and the integrity of all video and data. Signed OS, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit), IEEE 802.1X/MACsec network security, and support for OAuth 2.0 and OpenID are all built in. TAA compliant for government and public-sector deployments.

Technical Specifications

Field of Detection Horizontal: 180°
Human Recognition Zone 20,000 m² (215,000 sq ft)
Vehicle Detection Range Up to 200 m (650 ft)
Person Recognition Range Up to 140 m (450 ft)
Radial Speed Up to 80 km/h (50 mph)
Sensor Type FMCW (Frequency Modulated Continuous Wave)
Frequency 24.05–24.25 GHz, license-free
AI Classification Humans, vehicles, unknown
SoC ARTPEC-9 with Deep Learning Processing Unit (DLPU)
Memory 2 GB RAM, 8 GB Flash
Power PoE IEEE 802.3bt Type 2 Class 4 — Typical 9 W, Max 15 W
Dynamic LED Strip RGB LEDs (blue pattern shown) — visible up to 60 m in daylight
Housing / IP Rating IP66/IP67, IK09/IK10, NEMA 4X — aluminum and plastic
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Mounting Height Recommended 4–10 m (13–33 ft)
Weight 4,200 g (9.3 lb)
Storage microSD/SDHC/SDXC, NAS
Cybersecurity Axis Edge Vault — FIPS 140-3 Level 3, signed OS, secure boot
Certifications CE, FCC, UL, RCM — TAA Compliant
Warranty 5-year warranty
Part Number 03124-001

Typical Applications

AXIS D2122-VE is suited for perimeter protection at critical infrastructure, airports, ports, data centers, utility facilities, campuses, and city surveillance deployments where large-area 24/7 detection is required regardless of lighting or weather conditions.

Also available in Black (03123-001). For 270° wider coverage, see the AXIS 270° Radar (03125-001).

Product Number: 03124-001

SKU: 03124-001 Categories: , Brand:
