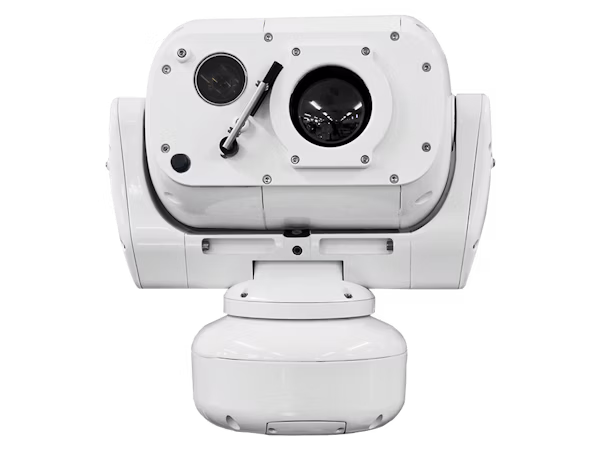

Silent Sentinel Aeron EVO2 Thermal PTZ Camera

Silent Sentinel Aeron EVO2 Dual-Sensor Thermal PTZ Camera

The Aeron EVO2 is a continuous-rotation dual-sensor PTZ designed for high-security perimeter surveillance on borders, coastlines, industrial facilities and mobile platforms. An uncooled LWIR thermal sensor (640×512, 12µm) delivers 20mK sensitivity while a 30× optical zoom HD visible camera (1920×1080) enables target verification at long range. The system is housed in a compact, hard-anodized IP67 enclosure weighing just 10.6 kg — equally at home on a fixed tower, a vessel or a vehicle mount.

• Dual-sensor system: uncooled LWIR thermal (640×512, 12µm pixel pitch) + HD visible 30× optical zoom camera (1080p, 4.3–129mm, F1.6–F4.7)
• Long-range detection — people up to 4.6 km, vehicles up to 14.4 km (lens dependent); visible DORI detect at 1896m
• 360° continuous pan; tilt –30° to +90°; up to 160°/s pan/tilt speed; 0.01° positioning accuracy
• IP67 rated, hard-anodized aluminium housing; –20°C to +65°C (–30°C with optional heater)
• Compact form factor — 10.6 kg, 340mm turning diameter — suitable for fixed towers, masts, vehicles and marine assets
• 256 preset positions, 8 preset tours; ONVIF Profile-S, H.264 RTSP, RS485/Ethernet
• Built-in wiper on visible sensor (standard); thermal: NUC, DDE, 10× colour palettes, white hot/black hot
• NDAA compliant; 5-year warranty

Thermal Lens Options & Detection Ranges

DRI figures per Johnson’s Criteria (50% probability). Human at 1.8m × 0.5m; vehicle at 2.3m².

Visible Camera Specifications

Focal length 4.3–129mm (30× optical, 12× digital); 1/2.8″ CMOS Exmor 1080p; F1.6–F4.7; 63.7° HFOV wide / 2.32° tele; colour 0.01 lux / mono 0.0008 lux; de-fog, WDR, digital noise reduction, image stabilisation. DORI detect at 1,896m, observe at 753m, recognise at 379m, identify at 190m.

NDAA compliant. 5-year warranty. Suitable for maritime, border, aviation and vehicle-mounted applications.
