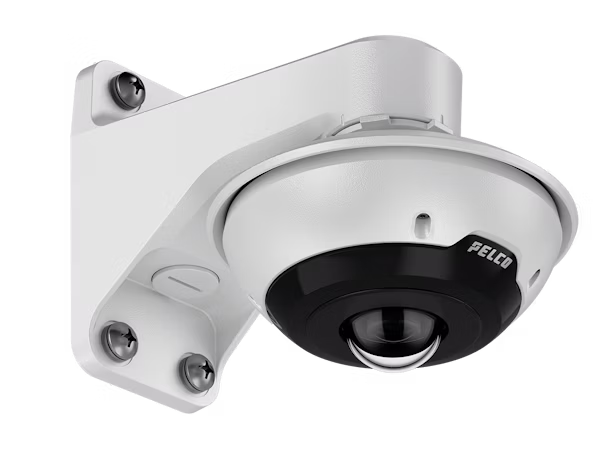

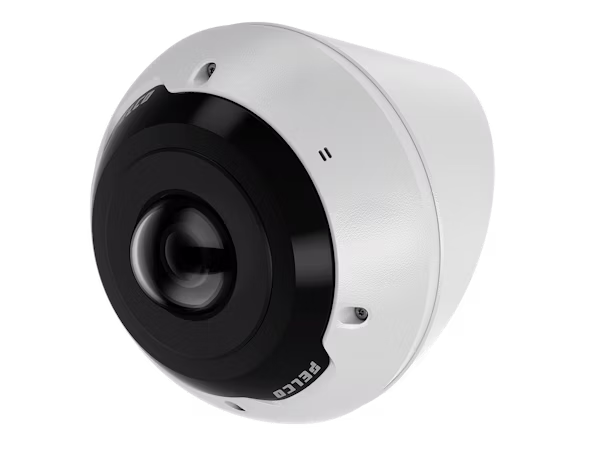

Pelco Sarix Fisheye 3 – Outdoor 180° Surface Mount Camera

The Pelco Sarix Fisheye 3 Outdoor Surface Mount 180° focuses your coverage where it matters most — ideal for wall-mount deployments covering hallways, building entrances, and perimeters where a full 360° view would include unnecessary ceiling or ground area. 8MP sensor with 188° horizontal field of view and automatic dewarping. Optional IR illumination up to 17m.

IP66/IP67, IK10, NEMA 4X rated. Operating range -40°C to +60°C. PoE 802.3af Class 3 (12W without IR) or PoE+ 802.3at Class 4 (26W with IR). Aluminum housing, 153.5mm diameter × 71.3mm height, 0.916 kg.

Key Features

• 8MP or 12MP fisheye sensor (1/1.8″ or 1/1.6″ CMOS) — 30% more pixel resolution on 12MP models
• 360° panoramic or 180° wide-angle field of view with automatic dewarping to natural proportions
• Fisheye-optimized Smart Analytics — detects individuals from head/shoulder silhouettes even directly below the camera
• Audio analytics: gunshot detection up to 100m, glass break, scream, car alarm, smoke alarm, loud noise
• Built-in microphone with hardware disable switch; line-level audio I/O
• Up to 120 dB WDR; HDSM SmartCodec for bandwidth efficiency; H.264/H.265/MJPEG
• NDAA 2019 Section 889 compliant; FIPS 140-3 Level 3 (onboard TPM); Secure Boot
• Dual microSD/SDXC slots — up to 1.5TB tested; 4GB RAM / 4GB Flash
• ONVIF Profile S/T/G/M; compatible with VideoXpert, Milestone, and Genetec VMS
• Pelco Elevate Enabled — automated firmware management, image health monitoring
• 5-year warranty

Part Number Reference

Use the Infrared dropdown above to select IR or No IR. Both models are 8MP with a 1.74mm lens.

Part numbers covered: SRXF3-8180-ERS, SRXF3-8180-ES

Need help selecting the right Pelco fisheye model? CamCentral can assist with design guidance, availability, and project pricing.
