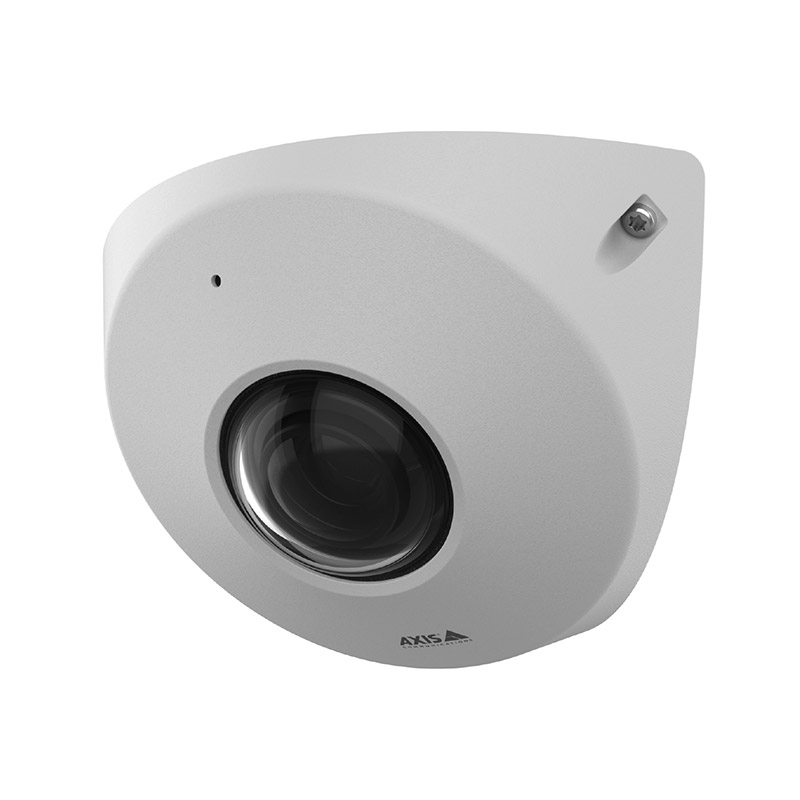

AXIS P9117-PV Panoramic Camera
6 MP corner camera with no blind spots
- Full coverage and no blind spots
- 6 MP with stereographic lens
- Built-in microphone and AXIS Audio Analytics
- Vandal-resistant (IK10) and IP66-rated dust protection
- Built-in cybersecurity with Axis edge vault
This indoor ligature-resistant (anti-ligature) corner camera delivers 360° panoramic view with no blind spots. Compact and vandal-resistant, it’s easy to clean and install.
$849.00 USD
AXIS P9117-PV indoor corner mounted camera with 6 MP sensor and stereographic lens, that can deliver multiple 360° or 180° panoramic views at up to 30 fps with no blind spots. Built on ARTPEC-8, it offers powerful artificial intelligence and deep learning analytics on the edge. including AXIS Object Analytics, it can accurately detect and classify moving objects for more effective monitoring. The camera can stream multiple, individually configurable H.264, H.265 and Motion JPEG streams, with support for digital PTZ. The product as well has a in built mic supporting audio analytics out of the box. Has an elevator door state detector ACAP pre-installed. Vandal-resistant (IK10) and IP66-rated dust protection. Product comes in white. A stainless steel variant cover can be purchased in a 4 pack separately using part number 02865-001.
Product Number: 02864-001
SKU: 7331021085510

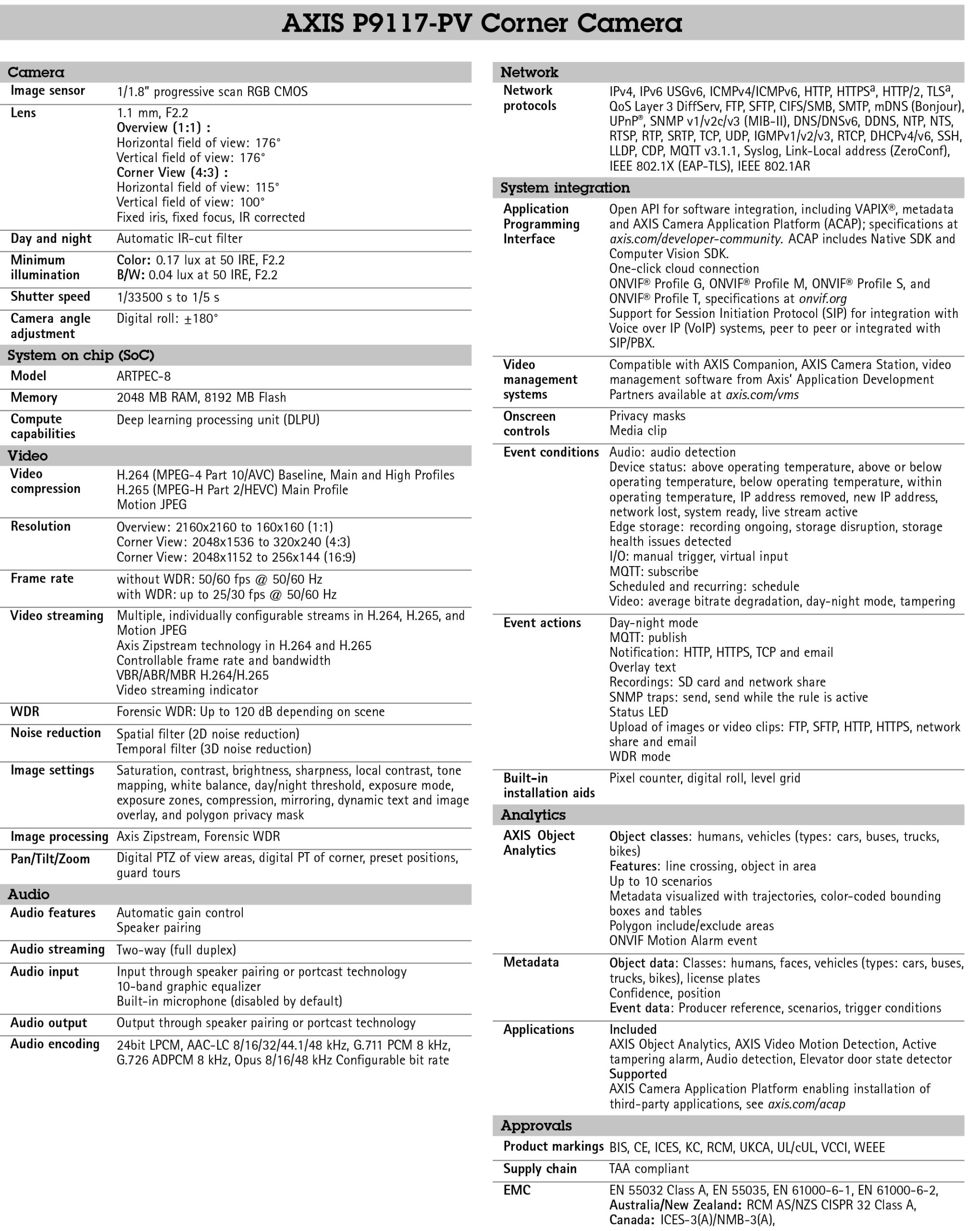

Technical specifications
Key specifications: video resolution up to 2160×2160; IP66 rated; IK10 vandal-resistant; operating range -15 to 50 °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 02864-001.
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/1.8" |
| Lightfinder | Lightfinder |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.17 lux |
| Min illumination/ light sensitivity (B/W) | 0.04 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 2160×2160 |
| Max frames per second | 50/60 |
| Day and Night functionality | Yes |
| Electronic image stabilization | – |
Lens
| Specification | Value |
|---|---|
| Focal length | 1.1 mm |
| Horizontal field of view | 176 ° |
| Vertical field of view | 176 ° |
Pan Tilt Zoom
| Specification | Value |
|---|---|
| Remote PTRZ | – |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| AV1 | – |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| PoE Class | 3 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+) |
| Axis Edge Vault | Yes |
General
| Specification | Value |
|---|---|
| Remote focus | – |
| Remote zoom | – |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -15 to 50 °C |
| Outdoor Ready | – |
| Vandal rating | IK10 |
| IP rating | IP66 |
| Designed for repaint | Yes |
| Sustainability | BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | 2.11 lbs |
|---|---|
| Dimensions | 6.3 × 7.09 × 4.33 in |
| Product Number | 02864-001 |
| Warranty | 5 Year Warranty |
| Manufacturer | Axis Communications |
