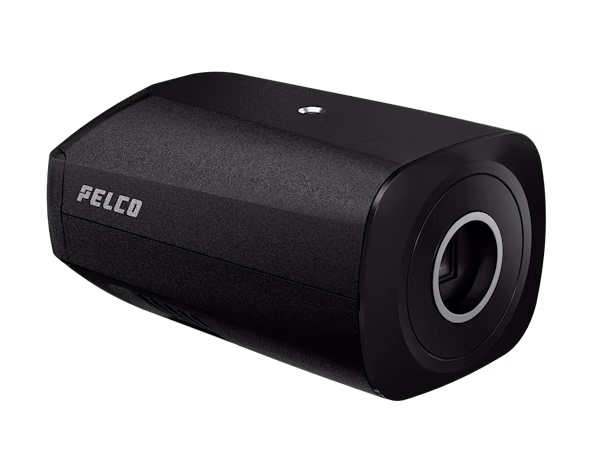

Pelco Sarix Enhanced 4P – Box Camera

The Pelco Sarix Enhanced 4P Box Camera is designed for critical infrastructure deployments where flexibility and compliance are paramount. Accepts standard CS and iCS lenses (sold separately), making it ideal for specialized fields of view or long-range telephoto applications. Available in 2MP, 4MP, 6MP, and 8MP (4K Ultra HD).

Compact form factor: 122 × 75 × 63mm, 0.55kg. Operating range -10°C to +65°C. 1000BASE-T Gigabit PoE (802.3bt Class 4) with seamless 12–24 VDC auxiliary failover. RS-485 terminal for PTZ lens control, relay I/O, and 12VDC auxiliary output. No built-in lens — bring your own CS or iCS optic for complete flexibility.

Key Features

• 4MP or 8MP (4K Ultra HD) — 1/1.8″ CMOS; up to 30 fps
• True WDR up to 130 dB; Pelco Smart Analytics (human/vehicle classification)
• NDAA/TAA compliant; FIPS 140-3 Level 1 & Level 3 TPM; Secure Boot; CC EAL6+
• Redundant power: seamless failover between PoE (802.3bt Class 4) and 12–24 VDC auxiliary
• Dual microSD slots — up to 1.5TB onboard edge recording; 4GB RAM / 4GB Flash
• No built-in microphone — privacy-by-design for compliance-sensitive deployments
• 1000BASE-T Gigabit Ethernet; RS-485, Relay In/Out, 12VDC auxiliary output
• ONVIF Profile S/T/G/M; compatible with VideoXpert, Milestone, and Genetec VMS
• Pelco Connect (Elevate Enabled) — cloud-based ML camera health monitoring
• 5-year warranty

Part Number Reference

Use the Resolution dropdown above to select your configuration. All box models use CS/iCS lens mount (lens not included).

Part numbers covered: SRXE4P-2-IBX-1, SRXE4P-4-IBX-1, SRXE4P-6-IBX-1, SRXE4P-8-IBX-1

Need help selecting the right Pelco model or compatible lens? CamCentral can assist with design guidance, availability, and project pricing.
