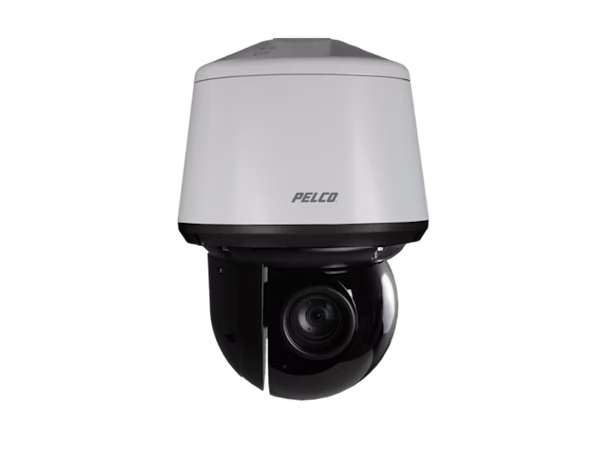

Pelco Spectra Pro IR Outdoor PTZ Camera

Pelco Spectra Pro IR Outdoor PTZ Camera (P2230L)

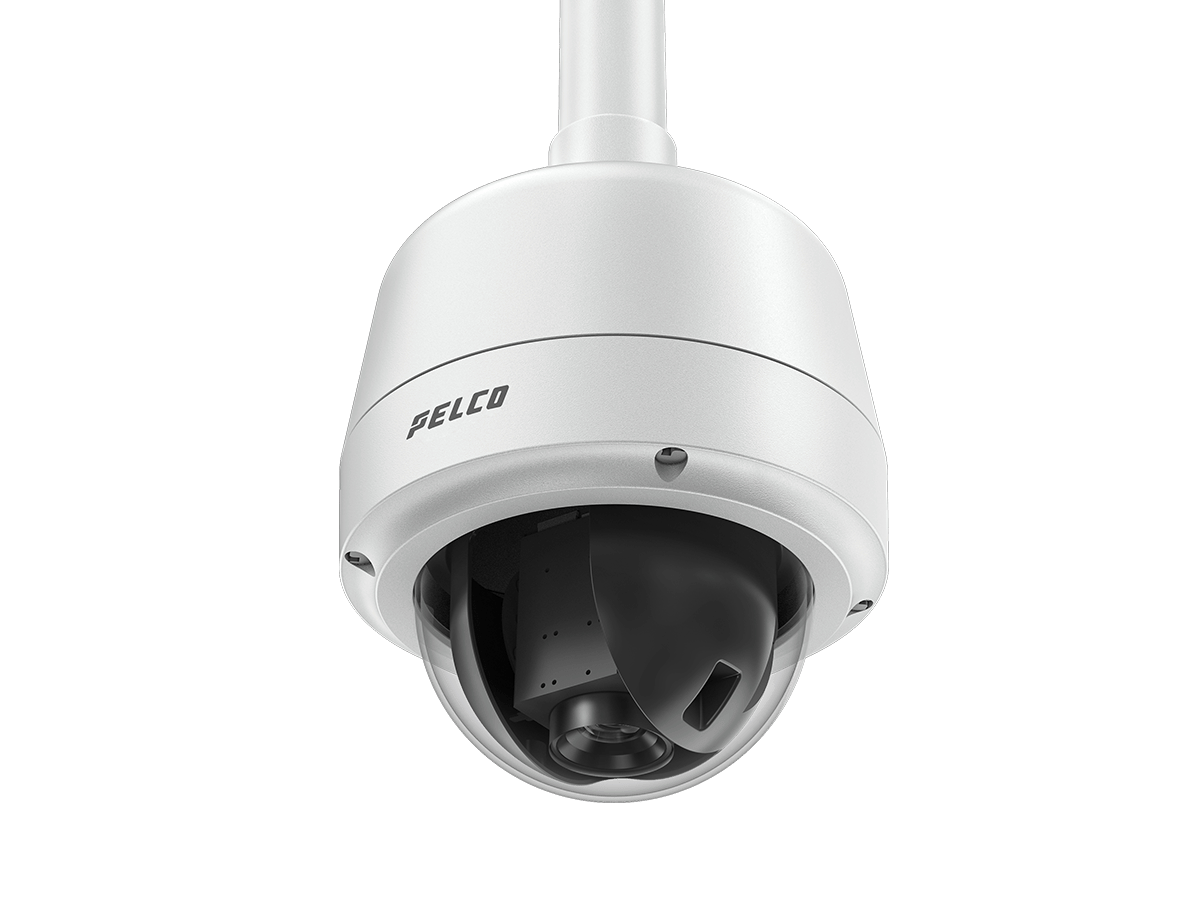

The P2230L outdoor pendant PTZ delivers 2MP clarity with 30X optical zoom and a wide –40°C to +60°C operating range. The ESR (IR Gray) variant adds built-in IR illumination reaching up to 150 metres and a unique +15° lookup tilt, making it ideal for license plate capture or ceiling-mount installations. All variants carry IP66/NEMA 4X ratings and IK10 impact protection.

• 2MP 1/2.8″ CMOS, 30X optical zoom (4.3–129mm, F1.6–F4.7); 63.7° HFOV wide / 2.3° tele
• IR illumination up to 150m (ESR IR Gray variant); +15° lookup tilt capability (ESR only)
• IP66/NEMA 4X rated; IK10 impact resistance; –40°C to +60°C operating range
• PoE++ 802.3bt Class 8 (up to 60W); 300 presets, guard tours, auto-flip
• H.265/H.264 dual-stream; ONVIF Profile S/T/G/M; microSD slot
• NDAA Section 889 compliant

Models & Specifications

NDAA Section 889 compliant. Compatible with Pelco VideoXpert, Milestone, and Genetec VMS platforms.
