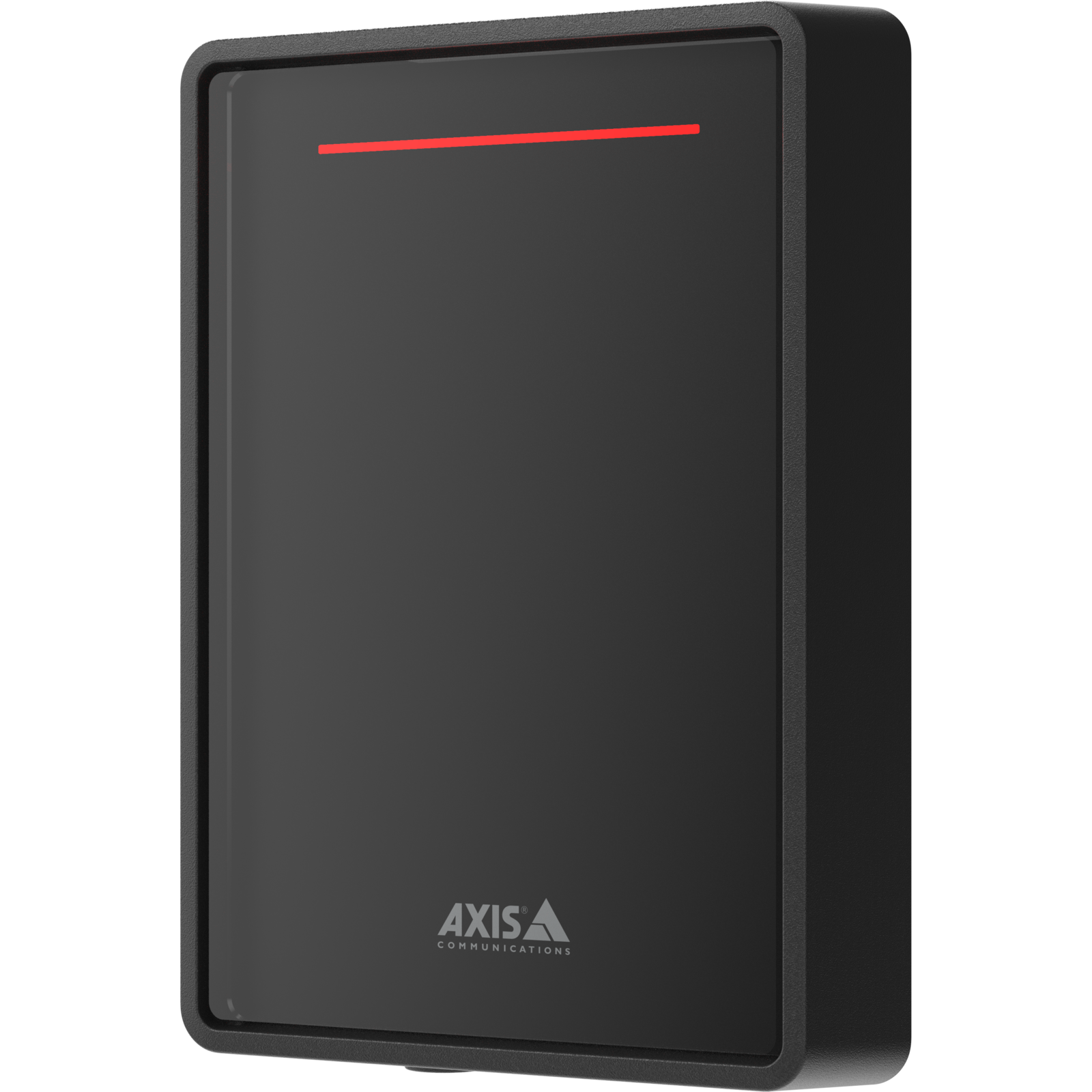

AXIS A4130-E Reader
Compact RFID reader with OSDP Secure Profile
- Easy installation on single-gang boxes or directly on wall
- Supports 13.56 MHz smart RFID standards for touch-free entry
- OSDP Secure Profile verified for strong interoperability
- EAL6+ certified secure element for enhanced protection
- Remote management via Axis door controllers
- Transparent mode with end-to-end encryption
The AXIS A4130-E Reader delivers secure, seamless touch-free entry with flexible mounting on single-gang boxes or walls, combining OSDP Secure Profile with EAL6+ security.
$299.00 USD
AXIS A4130-E Reader supports 13.56 MHz smart RFID standards for secure, seamless touch-free entry. It installs easily on single-gang boxes or directly on the wall. OSDP Secure Profile verification ensures strong interoperability with Axis and third-party OSDP systems, while remote management via Axis door controllers enables configuration, feature updates, and security patches from anywhere. An EAL6+ certified secure element enhances protection, and transparent mode delivers end-to-end encryption by storing encryption keys on the controller rather than on the reader.
Product Number: 03424-001
SKU: 03424-001
Technical specifications
Key specifications: IP66 rated; operating range -40 to 65 °C. Manufacturer part number 03424-001.
Spec
| Specification | Value |
|---|---|
| Reader protocol | OSDP |
| Credential technologies | MIFARE Classic, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE Plus |
| Credentials | – |
| Integrated keypad | – |
| DC input voltage | 12-12 V |
| Power over Ethernet | – |
| DC Output – Max | – |
| Cable (length) | – |
| IP rating | IP66 |
| Alarm inputs/outputs | – |
| Relays | – |
| Height | 121 mm |
| Width | 85 mm |
| Depth/length | 27 mm |
| Weight of sales unit (without box) | 258g |
| Safety approvals | CAN/CSA C22.2 No. 62368-1 ed.3, IEC/EN 62368-1 ed.3, UL 294, UL 62368-1 ed.3 |
| Product label markings | CE, FCC, ICES, UL, WEEE |
| Sustainability | – |
| Operating temperature | -40 to 65 °C |
| Outdoor Ready | Yes |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
