AXIS Q6411-LE 30 fps

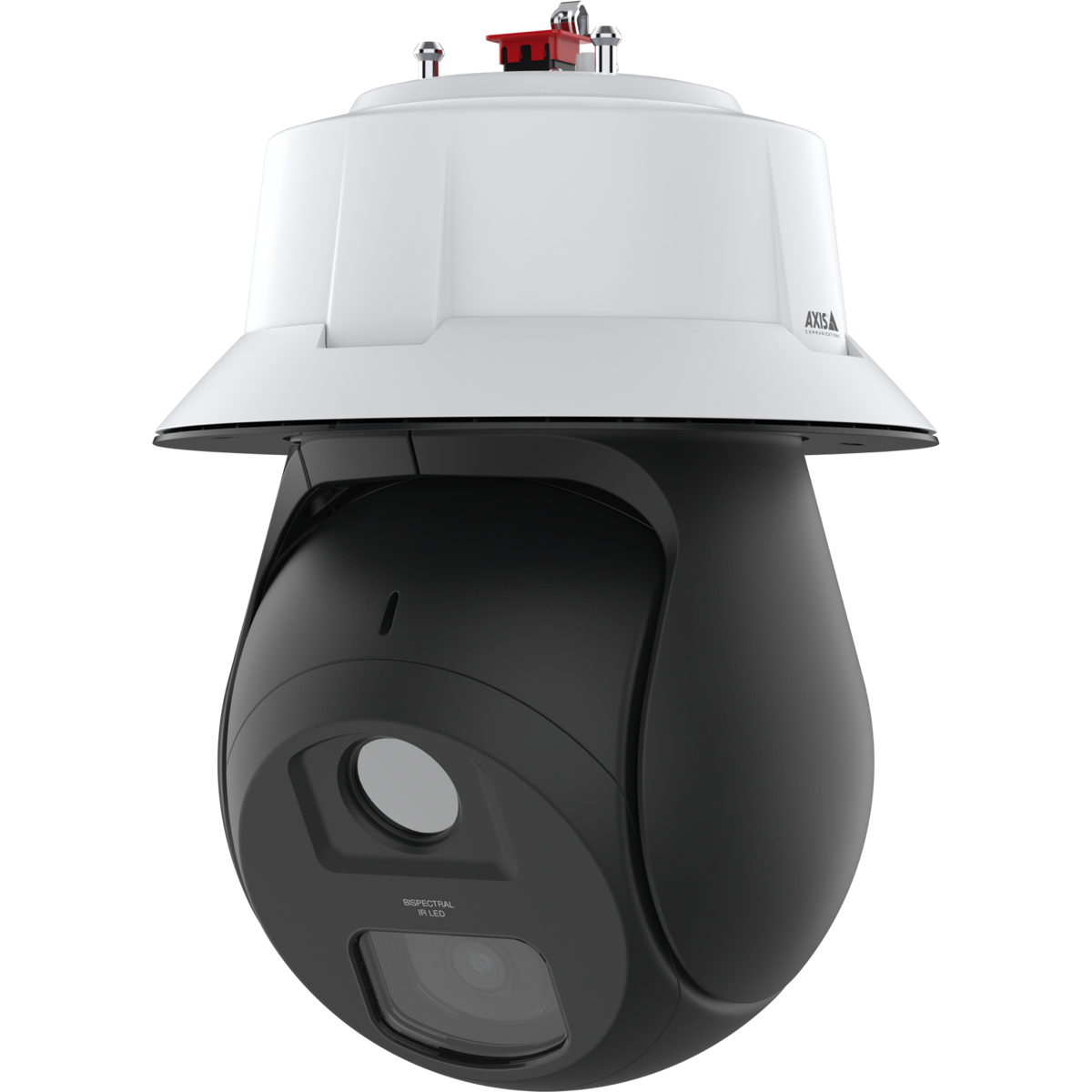

The AXIS Q6411-LE (part number 03145-001) is an AI-powered bispectral PTZ camera that combines a thermal detection channel and a 31x optical zoom visual channel in one outdoor-ready pan-tilt-zoom unit. The thermal sensor detects people and vehicles in total darkness, fog and glare, while the light-sensitive visual camera confirms and identifies what the thermal channel finds — one camera doing the work of a thermal fixed camera plus a visual PTZ.

AXIS Q6411-LE at a glance

• The AXIS Q6411-LE pairs a 384×288 thermal sensor (7 mm lens, 55° field of view, NETD <20 mK) with a 2 MP visual camera on a 1/2″ light-sensitive sensor.
• It runs AI analytics on the edge: ARTPEC-9 chip with deep learning processing unit, AXIS Object Analytics preinstalled to detect, classify, track and count humans and vehicles, and optional AXIS Perimeter Defender for high-security perimeter protection.
• OptimizedIR illumination reaches up to 150 m (500 ft) in complete darkness; 31x optical zoom with Autotracking 2 follows moving objects automatically.
• 360° endless pan and +20° to −90° tilt give a ground-to-sky view; Zipstream with AV1, H.265 and H.264 cuts bandwidth and storage.
• Built for harsh sites: IP66, IK10 vandal rating, NEMA 4x, operating range −40 °C to 55 °C, with shock detection.
• Axis Edge Vault hardware cybersecurity with FIPS 140-3 Level 3 certified key storage, signed OS and secure boot.
• Backed by the standard AXIS 5-year warranty.

Thermal channel

Visual channel

Pan-tilt-zoom

AI & analytics

Video & compression

Cybersecurity

Environmental & mechanical

Common questions

What is a bispectral PTZ camera? A bispectral camera combines two imaging channels in one housing: a thermal sensor that detects heat signatures regardless of lighting, and a visual camera that identifies what was detected. The AXIS Q6411-LE adds full PTZ movement, so a single unit can watch a wide area thermally and zoom in optically for identification.

Where is the AXIS Q6411-LE typically deployed? Perimeter security for critical infrastructure, ports and waterfronts, solar farms and substations, airports, and any wide open area where detection must work in total darkness, fog or glare — conditions where conventional cameras fail.

Does the 30 fps thermal model require export documentation? Thermal imagers above 9 fps are subject to export-control rules, so end-user documentation may be required for this 30 fps model (03145-001). AXIS also makes an 8.3 fps variant (AXIS Q6411-LE 8.3 fps, part number 03146-001) that avoids export paperwork — contact us if that variant suits your project better.

Manufacturer part number: 03145-001. Genuine AXIS Communications product, backed by the AXIS 5-year warranty and available from CamCentral Systems, an authorized AXIS partner in Canada and the USA. Midspan, AXIS Perimeter Defender licences and mounting accessories are sold separately.
