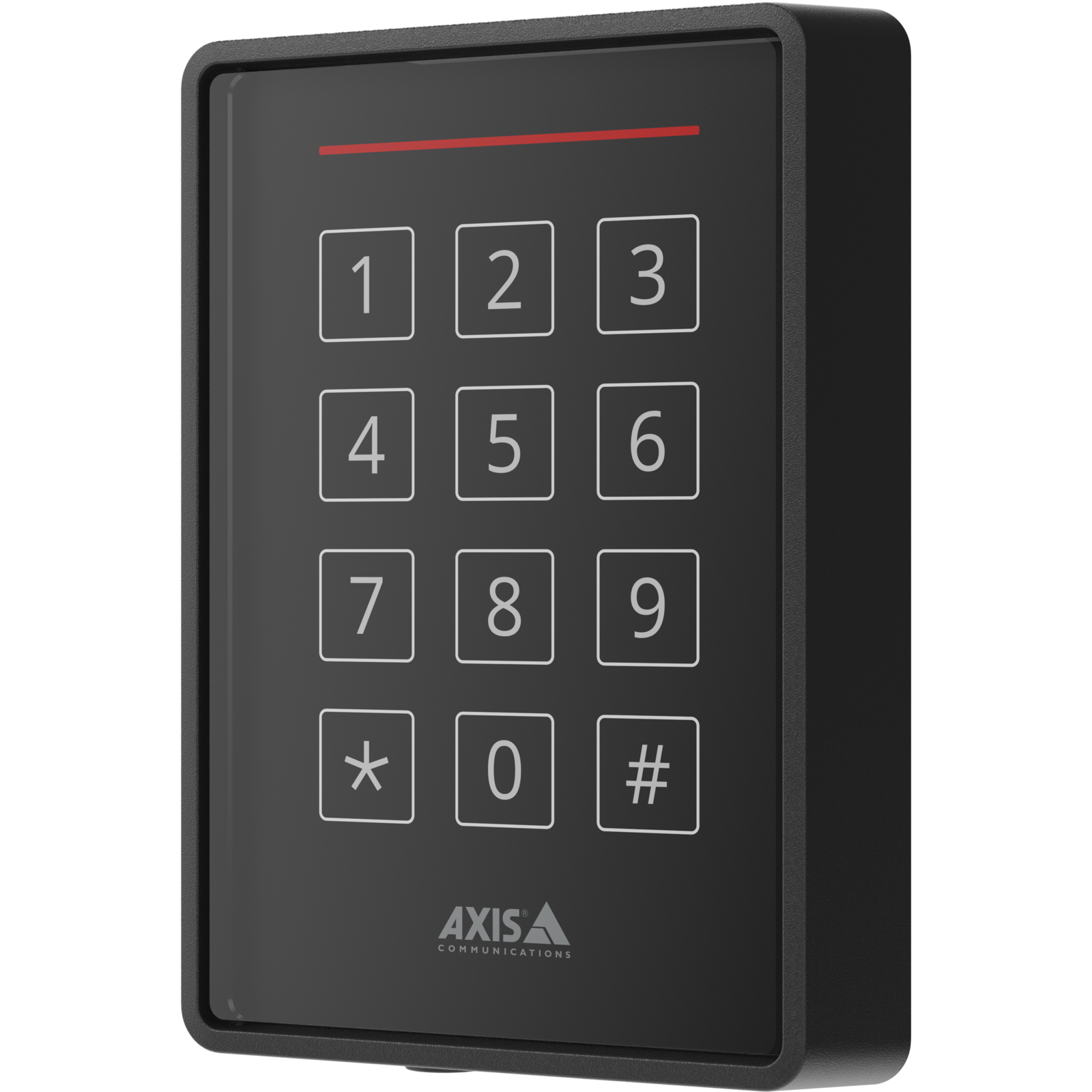

AXIS A4131-E Reader with Keypad
RFID reader with touch keypad and OSDP Secure Profile
- Intuitive touch keypad for PIN and card-based authentication
- Easy installation on single-gang boxes or directly on wall
- Supports 13.56 MHz smart RFID standards
- OSDP Secure Profile verified for strong interoperability
- EAL6+ certified secure element for enhanced protection
- Transparent mode with end-to-end encryption
The AXIS A4131-E Reader with Keypad offers secure RFID plus PIN entry in a flexible form factor, with OSDP Secure Profile and EAL6+ certified protection.
$369.00 USD
AXIS A4131-E Reader with Keypad supports 13.56 MHz smart RFID standards for secure, seamless entry and features an intuitive touch keypad. It installs easily on single-gang boxes or directly on the wall. OSDP Secure Profile verification ensures strong interoperability with Axis and third-party OSDP systems, while remote management via Axis door controllers enables configuration, feature updates, and security patches from anywhere. An EAL6+ certified secure element enhances protection, and transparent mode delivers end-to-end encryption by storing encryption keys on the controller rather than on the reader.
Product Number: 03425-001
SKU: 03425-001
Technical specifications
Key specifications: IP66 rated; operating range -40 to 65 °C. Manufacturer part number 03425-001.
Spec
| Specification | Value |
|---|---|
| Reader protocol | OSDP |
| Credential technologies | MIFARE Classic, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE Plus |
| Credentials | – |
| Integrated keypad | Yes |
| DC input voltage | 12-12 V |
| Power over Ethernet | – |
| DC Output – Max | – |
| Cable (length) | – |
| IP rating | IP66 |
| Alarm inputs/outputs | – |
| Relays | – |
| Height | 121 mm |
| Width | 85 mm |
| Depth/length | 27 mm |
| Weight of sales unit (without box) | 258g |
| Safety approvals | CAN/CSA C22.2 No. 62368-1 ed.3, IEC/EN 62368-1 ed.3, UL 294, UL 62368-1 ed.3 |
| Product label markings | CE, FCC, ICES, UL, WEEE |
| Sustainability | – |
| Operating temperature | -40 to 65 °C |
| Outdoor Ready | Yes |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
