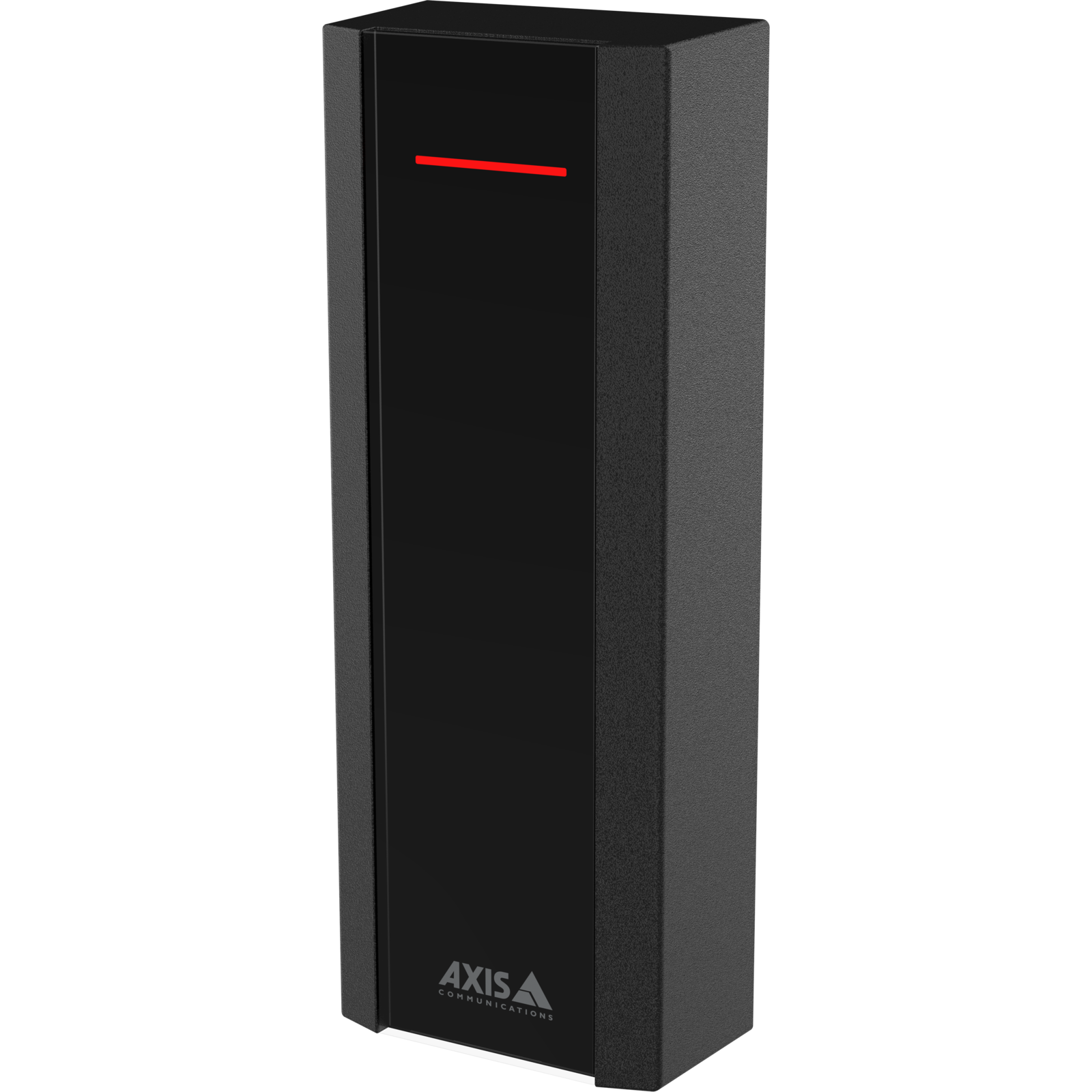

AXIS A4610 Network Reader

AXIS A4610 Network Reader

Intelligent all-in-one network reader with complete door control

  • All-in-one door control — manages lock, REX and position sensors
  • Single PoE cable for both power and data — reduces cabling costs
  • Easy scalability for small and large installations
  • Remote access management — grant rights and update software from anywhere
  • Streamlined installation with simplified architecture

The AXIS A4610 Network Reader is an intelligent all-in-one solution that handles complete door control over a single PoE connection, simplifying installation and enabling remote management.

$399.00 USD

Request a quote

The AXIS A4610 is an intelligent, all-in-one network reader that manages complete door control, including the lock, REX and position sensors. It streamlines installation by using a single Power over Ethernet (PoE) cable for both power and data, reducing cabling and costs. This simplified architecture also makes it easy to scale your system. Plus, with remote management capabilities, you can grant access rights, update software, and manage the device from anywhere.

Product Number: 03502-001
SKU: 03502-001

Technical specifications

Key specifications: IP54 rated; operating range -40 to 60 °C. Manufacturer part number 03502-001.

Spec

Specification Value
Reader protocol IP
Credential technologies MIFARE Classic, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE DESFire EV3, MIFARE Plus
Credentials CardNr, Tag
Integrated keypad –
DC input voltage 12-12 V
Power over Ethernet Yes
DC Output – Max 12
Cable (length) 2900 mm
IP rating IP54
Alarm inputs/outputs 2/0
Relays 1
Height 133 mm
Width 50 mm
Depth/length 27 mm
Weight of sales unit (without box) 265g
Safety approvals EN: 62311, IEC/EN 62368-1 ed.3
Product label markings CE, FCC, ICES
Sustainability –
Operating temperature -40 to 60 °C
Outdoor Ready –

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
