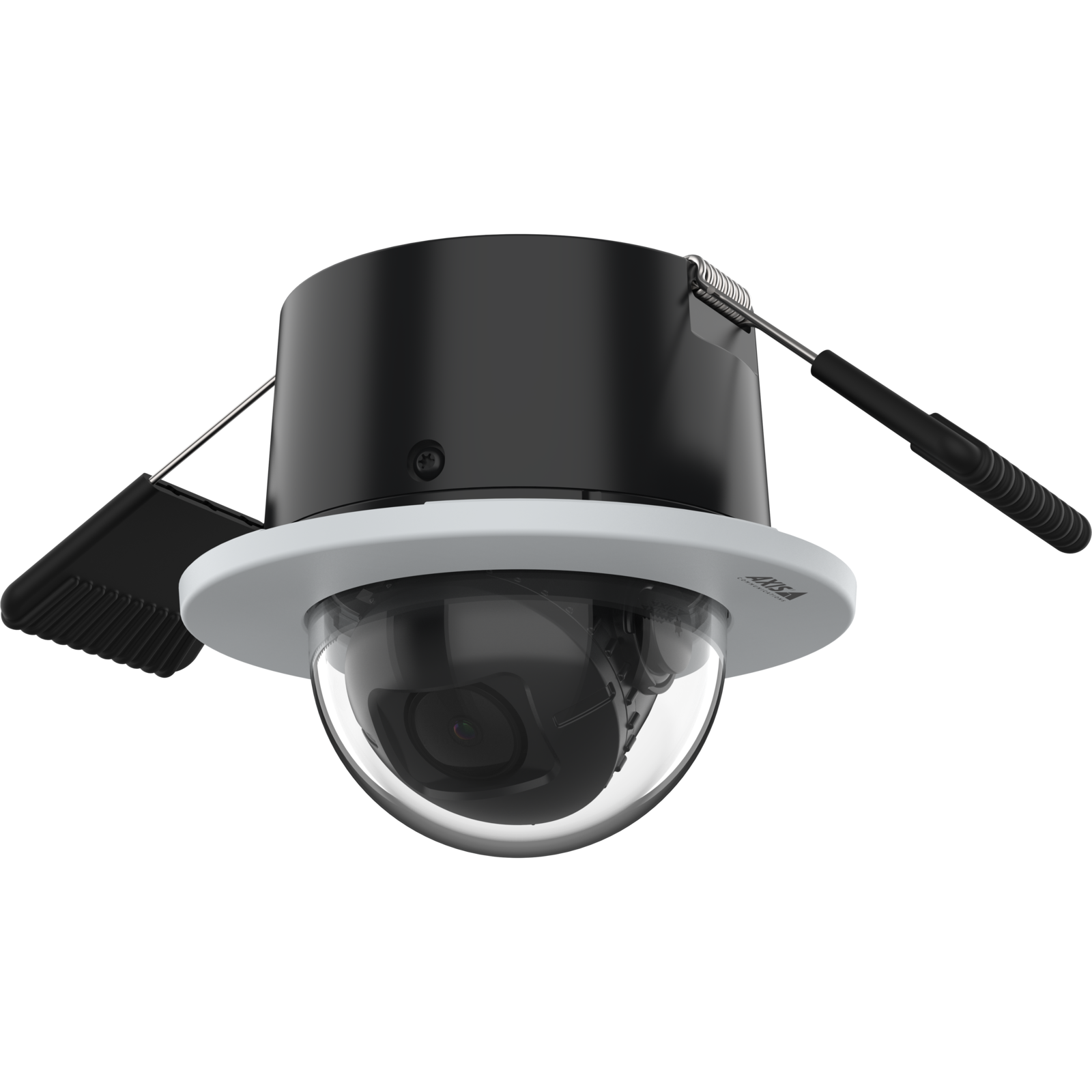

AXIS M3098-H Recessed Mini Dome Camera
AI-powered 8 MP recessed dome for indoor drop ceilings
- 8 MP resolution for discreet indoor installations
- Recessed design for drop-ceiling mounting
- AXIS Object Analytics pre-installed
- Acoustic sensor with AXIS Audio Analytics
- Factory-focused fixed field of view — no manual focusing
- AXIS Edge Vault with FIPS 140-3 Level 3 certified key storage
$549.00 USD
AXIS M3098-H is an 8 MP AI-powered recessed dome designed for discreet installation in indoor drop ceilings — only the camera dome and covering are visible. It ships with a factory-focused fixed field of view that requires no manual focusing.
It delivers strong image quality even in challenging light conditions. AXIS Object Analytics is pre-installed for object detection, classification, tracking, and counting, while an acoustic sensor with AXIS Audio Analytics raises events when something audibly relevant happens. AXIS Edge Vault provides FIPS 140-3 Level 3 certified secure key storage and operations.
AXIS Product Number: 03396-001
Technical specifications
Key specifications: video resolution up to 3840×2160; IP42 rated; operating range 0 to 45 °C; PoE Class 2 powered; WDR. Manufacturer part number 03396-001.
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/1.8" |
| Lightfinder | Lightfinder |
| Wide dynamic range | WDR |
| Min illumination/ light sensitivity (Color) | 0.19 lux |
| Min illumination/ light sensitivity (B/W) | 0.05 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 3840×2160 |
| Max frames per second | 12/15 |
| Day and Night functionality | Yes |
| Electronic image stabilization | – |
Lens
| Specification | Value |
|---|---|
| Focal length | 3.76 mm |
| Horizontal field of view | 124 ° |
| Vertical field of view | 66 ° |
Pan Tilt Zoom
| Specification | Value |
|---|---|
| Remote PTRZ | – |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | High, Main |
| H.265 | Yes |
| AV1 | – |
Audio
| Specification | Value |
|---|---|
| Audio Support | – |
| Built-in microphone | – |
Network
| Specification | Value |
|---|---|
| PoE Class | 2 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
| Axis Edge Vault | Yes |
General
| Specification | Value |
|---|---|
| Remote focus | – |
| Remote zoom | – |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | 0 to 45 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | IP42 |
| Designed for repaint | – |
| Sustainability | BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | 0.77 lbs |
|---|---|
| Dimensions | 5.59 × 4.45 × 3.82 in |
| Product Number | 03396-001 |
| Manufacturer | Axis Communications |
