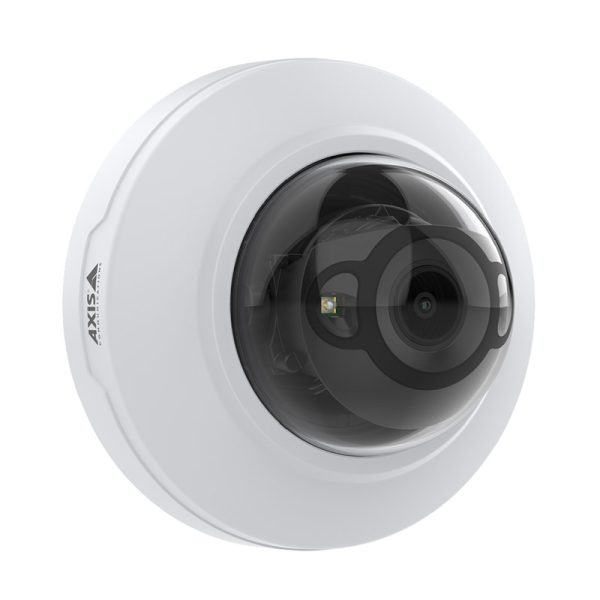

AXIS M4216-LV Camera
Varifocal 4 MP dome with IR and deep learning
- Great image quality in 4 MP
- Varifocal lens with remote zoom and focus
- Lightfinder, WDR, and OptimizedIR
- Analytics with deep learning
- HDMI output for public viewing monitors
This discreet dome delivers great images in any light conditions. With a deep learning processing unit, it offers intelligent analytics based on deep learning on the edge. Plus, Axis Edge Vault safeguards your device.
$589.00 USD
Compact, varifocal, D/N mini dome with built-in IR illumination and dust- and vandal-resistant casing for easy indoor mounting. 3-6 mm lens with remote zoom and focus simplifying the installation. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 4MP in 4:3, 3MP in 16:9, max 30 fps with WDR. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced analytics. Axis Object Analytics, video motion detection and active tampering alarm. HDMI output (micro). MicroSD memory card slot for optional local video storage. AXIS Edge Vault for increased Cyber Security.
Product number: 02113-001
SKU: 7331021072817
Technical specifications
Key specifications: video resolution up to 2304×1728; IK08 vandal-resistant; operating range 0 to 45 °C; PoE Class 3 powered; WDR. Manufacturer part number 02113-001.
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/2.7" |
| Lightfinder | Lightfinder |
| Wide dynamic range | WDR |
| Min illumination/ light sensitivity (Color) | 0.18 lux |
| Min illumination/ light sensitivity (B/W) | 0 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 2304×1728 |
| Max frames per second | 25/30 |
| Day and Night functionality | Yes |
| Electronic image stabilization | – |
Lens
| Specification | Value |
|---|---|
| Focal length | 3 – 6 mm |
| Horizontal field of view | 100-45 ° |
| Vertical field of view | 72-34 ° |
Pan Tilt Zoom
| Specification | Value |
|---|---|
| Remote PTRZ | – |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | High, Main |
| H.265 | Yes |
| AV1 | – |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
| Built-in microphone | – |
Network
| Specification | Value |
|---|---|
| PoE Class | 3 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+) |
| Axis Edge Vault | Yes |
General
| Specification | Value |
|---|---|
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | 0 to 45 °C |
| Outdoor Ready | – |
| Vandal rating | IK08 |
| IP rating | – |
| Designed for repaint | Yes |
| Sustainability | BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | 1.12 lbs |
|---|---|
| Dimensions | 4.92 × 5.31 × 3.15 in |
| Product Number | 02113-001 |
| Warranty | 5 Year Warranty |
| Manufacturer | Axis Communications |
