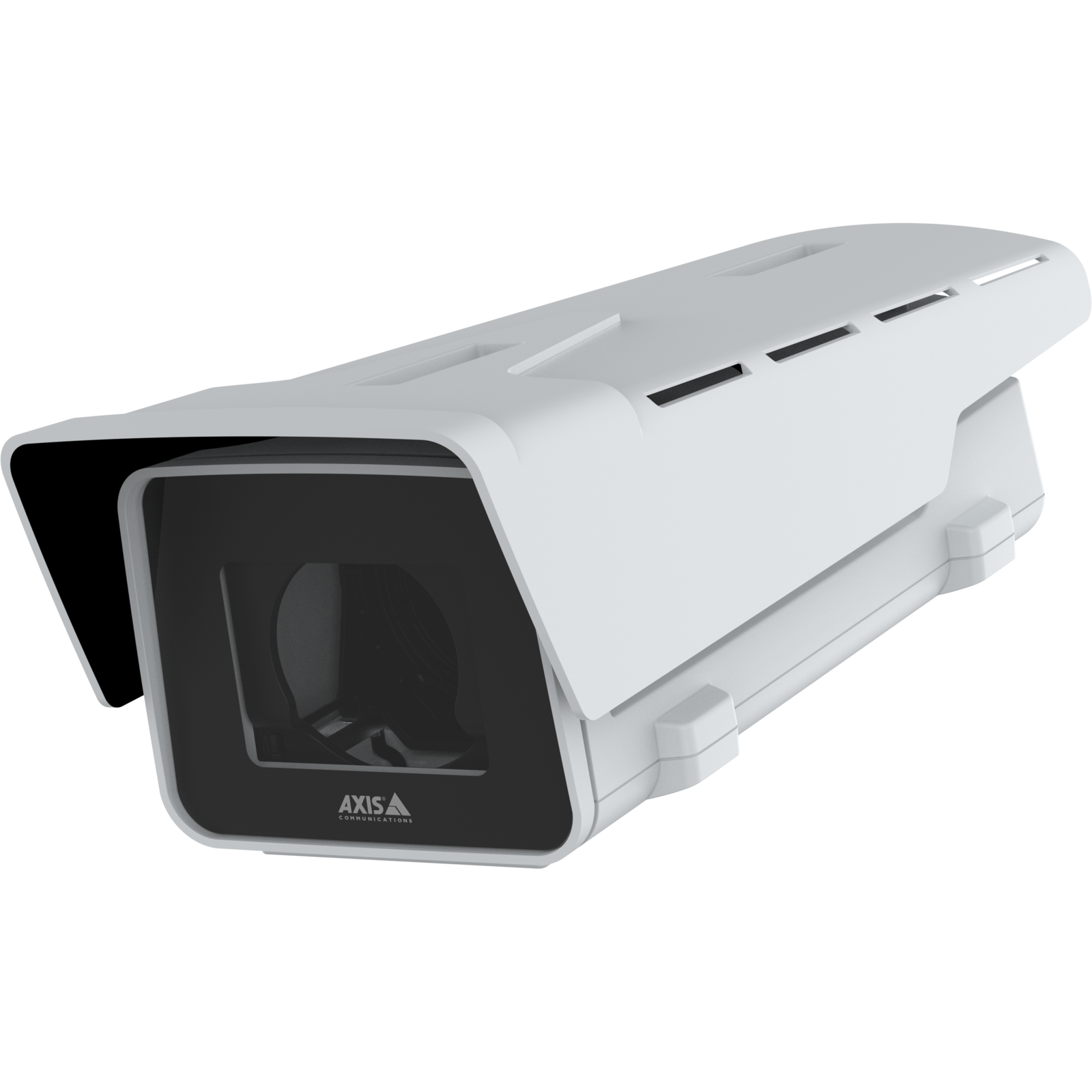

AXIS P1388-BE
,

AXIS P1388-BE

AXIS network camera

  • 1/1.8” image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 4K / 8MP resolution, day/night box camera with Deep Learning Processing Unit (DLPU)
  • Forensic WDR and Lightfinder 2.0
  • OptimizedIR, a power-efficient 850nm IR LED technology covering 50 meters (164 feet)
  • Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus
  • Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG

$1,179.00 USD

Request a quote

1/1.8” image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 4K / 8MP resolution, day/night box camera with Deep Learning Processing Unit (DLPU). Forensic WDR and Lightfinder 2.0. OptimizedIR, a power-efficient 850nm IR LED technology covering 50 meters (164 feet). Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 8 MP stream up to 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio with speaker pairing, audio detection with either optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3at Type2 Class 4 or 10-28 V DC power with redundancy. Built-in heater, Arctic Temperature Control for start-up in -40°C to +60°C (-40 ºF to 140 ºF). Includes removable sunshield and cable glands. Lens, mounts, illuminator are not included but available as optional accessories. Midspan or power supply not included.

AXIS Product Number: 02904-001

Technical specifications

Key specifications: video resolution up to 3840×2160; IP66, IP67 rated; IK10 vandal-resistant; operating range -40 to 60 °C; PoE Class 4 powered; Forensic WDR. Manufacturer part number 02904-001.

Camera

Specification Value
Image sensor CMOS
Image sensor size 1/1.8"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –

Video

Specification Value
Max video resolution 3840×2160
Max frames per second 50/60
Electronic image stabilization Yes

Lens

Specification Value
Focal length –
Horizontal field of view –
Vertical field of view –
Lens mount CS
Replaceable lens Yes

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
AV1 –

Audio

Specification Value
Audio Support Yes

Network

Specification Value
PoE Class 4
Wireless –

Security

Specification Value
Signed OS Yes
Secure boot Yes
Secure keystore Secure Element (CC EAL6+)

General

Specification Value
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free

Power

Specification Value
Power (max) 25.5 W
Power (average) 5.0 W
DC input voltage 10-28 V

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
