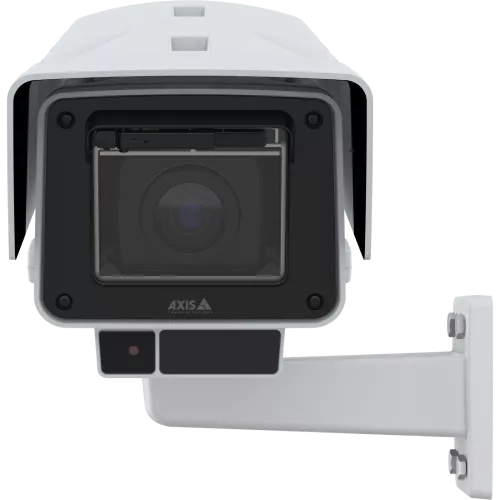

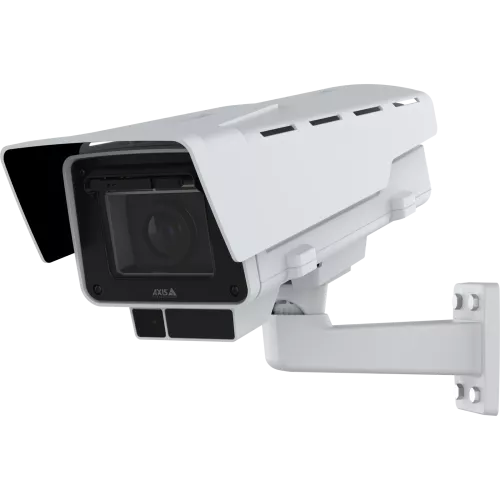

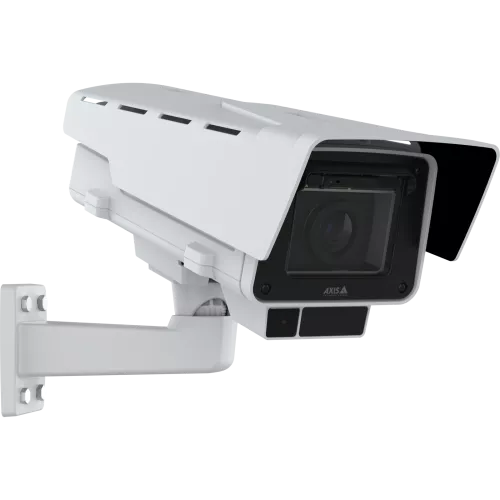

AXIS Q1728-LE Block Camera
8 MP, superior light-sensitivity, outdoor camera
- Superior image quality in 4K
- Built-in wiper for harsh weather
- Next-generation AI-powered analytics
- Wide or tele lenses available
- Built-in cybersecurity with Axis Edge Vault
$1,999.00 USD
Built on ARTPEC-9, with support for AV1 codec, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. Available with a wide or tele lens, it features a built-in wiper to withstand harsh outdoor environments. AXIS Q1728-LE offers 8 MP at 60 fps and features a large 1/1.2″ sensor for consistent low-light performance. Lightfinder 2.0 and Forensic WDR provide true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. Available in two variants with a choice of lenses: a wide (6-13 mm) lens with a 76°-32° horizontal field of view for surveillance in wide, open areas, and a tele (15-48 mm) lens with a 30°-40° horizontal field of view for great details at long distances. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.
Product Numbers:
AXIS Q1728-LE: 03210-001
AXIS Q1728-LE 48 mm: 03211-001
Technical Specifications
Technical specifications
Key specifications: video resolution up to 3840×2160; IP66, IP67 rated; IK10 vandal-resistant; operating range -40 to 60 °C; PoE Class 4 powered; Forensic WDR. Manufacturer part number .
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/1.2" |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.05 lux |
| Min illumination/ light sensitivity (B/W) | 0.01 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 3840×2160 |
| Max frames per second | 50/60 |
| Electronic image stabilization | Yes |
Lens
| Specification | Value |
|---|---|
| Focal length * | 15.2 – 48.7 / 5.9-13.3 mm |
| Horizontal field of view * | 42 – 13 / 108-49 ° |
| Vertical field of view * | 24 – 7 / 58 – 27 ° |
| Lens mount | – |
| Replaceable lens | – |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| AV1 | On |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
Network
| Specification | Value |
|---|---|
| PoE Class | 4 |
| Wireless | – |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
General
| Specification | Value |
|---|---|
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | -40 to 60 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66, IP67 |
| Designed for repaint | Yes |
| Sustainability | PVC free |
Power
| Specification | Value |
|---|---|
| Power (max) | 25.5 W |
| Power (average) | 9.0 W |
| DC input voltage | 10-28 V |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | 2.61 lbs |
|---|---|
| Dimensions | 7.76 × 6.57 × 7.56 in |
| Product Number | 03210-001, 03211-001 |
| Warranty | 5 Year Warranty |
| Manufacturer | Axis Communications |
