AXIS Q2101-TE 7 mm 30 fps

AXIS Q2101-TE 7 mm 30 fps

AXIS network camera

  • Robust and impact-resistant (IK10 and IP66/67), it includes built-in cybersecurity features to help safeguard your system
  • The product is halogen free
  • Edge-to-edge functionality lets you connect network speakers and other Axis network devices
  • With up to 256 presets you can monitor very large and complex scenes for specific temperature levels and temperature change rates
  • With early fire detection analytics (included), it’s possible to set triggers and preventively act on early signs of fire

$5,249.00 USD

Request a quote

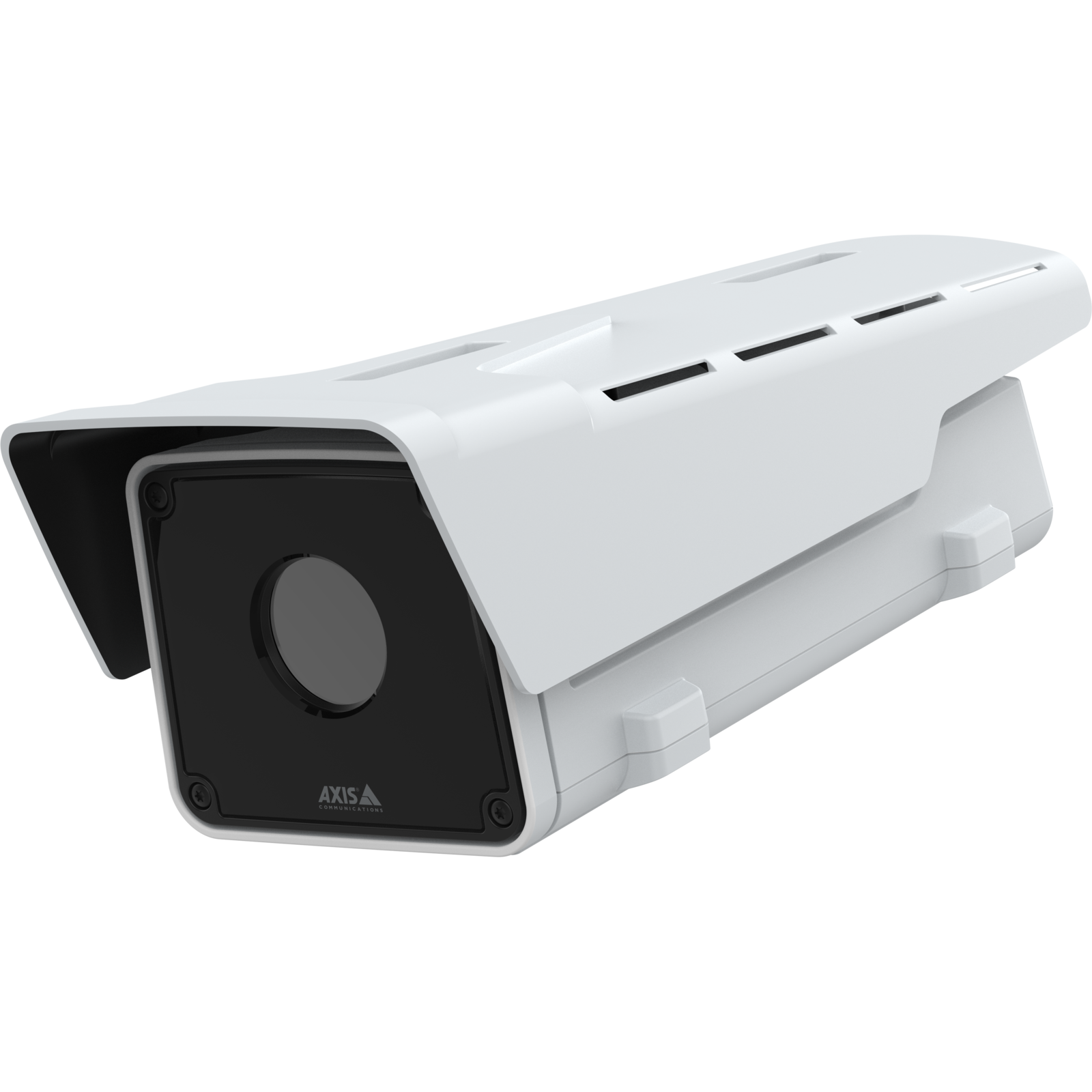

Q2101-TE is an ARTPEC 8 based thermometric camera that lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F).
Robust and impact-resistant (IK10 and IP66/67), it includes built-in cybersecurity features to help safeguard your system. The product is halogen free. Edge-to-edge functionality lets you connect network speakers and other Axis network devices.
Q2101-TE can be PT-mounted (PT head sold separately). When PT-mounted, Q2101-TE supports the Axis unique feature of Thermometric guard tour, giving you the possibility to configure 10 polygonal detection areas per preset. With up to 256 presets you can monitor very large and complex scenes for specific temperature levels and temperature change rates.
With early fire detection analytics (included), it’s possible to set triggers and preventively act on early signs of fire. The Early Fire Detection ACAP comes with a smart filtering function eliminating many false alarms, commonly originating from work vehicles such as truck, excavators and cars.

AXIS Product Number: 02650-001

Technical specifications

Key specifications: video resolution up to 768×576 (Upscaled); IP66, IP67 rated; operating range -40 to 60 °C; PoE Class 4 powered. Manufacturer part number 02650-001.

Camera

Specification Value
Image sensor Uncooled microbolometer
Thermal sensitivity (NETD) 40 mk @25C, F1.0
Thermal sensor resolution 384×288

Video

Specification Value
Max video resolution 768×576 (Upscaled)
Max frames per second * 30 / 8.3 / 30 / 8.3 / 30 / 8.3
Electronic image stabilization Yes
Thermal palettes Yes

Lens

Specification Value
Focal length * 13 / 13 / 7 / 19 / 19 / 7 mm
Horizontal field of view * 28 / 28 / 55 / 19.4 / 19.4 / 55 °
Vertical field of view * 21 / 21 / 40.7 / 14.7 / 14.7 / 40.7 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main

Audio

Specification Value
Audio Support Yes

Sys

Specification Value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs 4
Serial connectors Yes
Video motion detection Yes

Network

Specification Value
PoE Class 4

Security

Specification Value
Signed OS Yes

General

Specification Value
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
IP rating IP66, IP67

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
