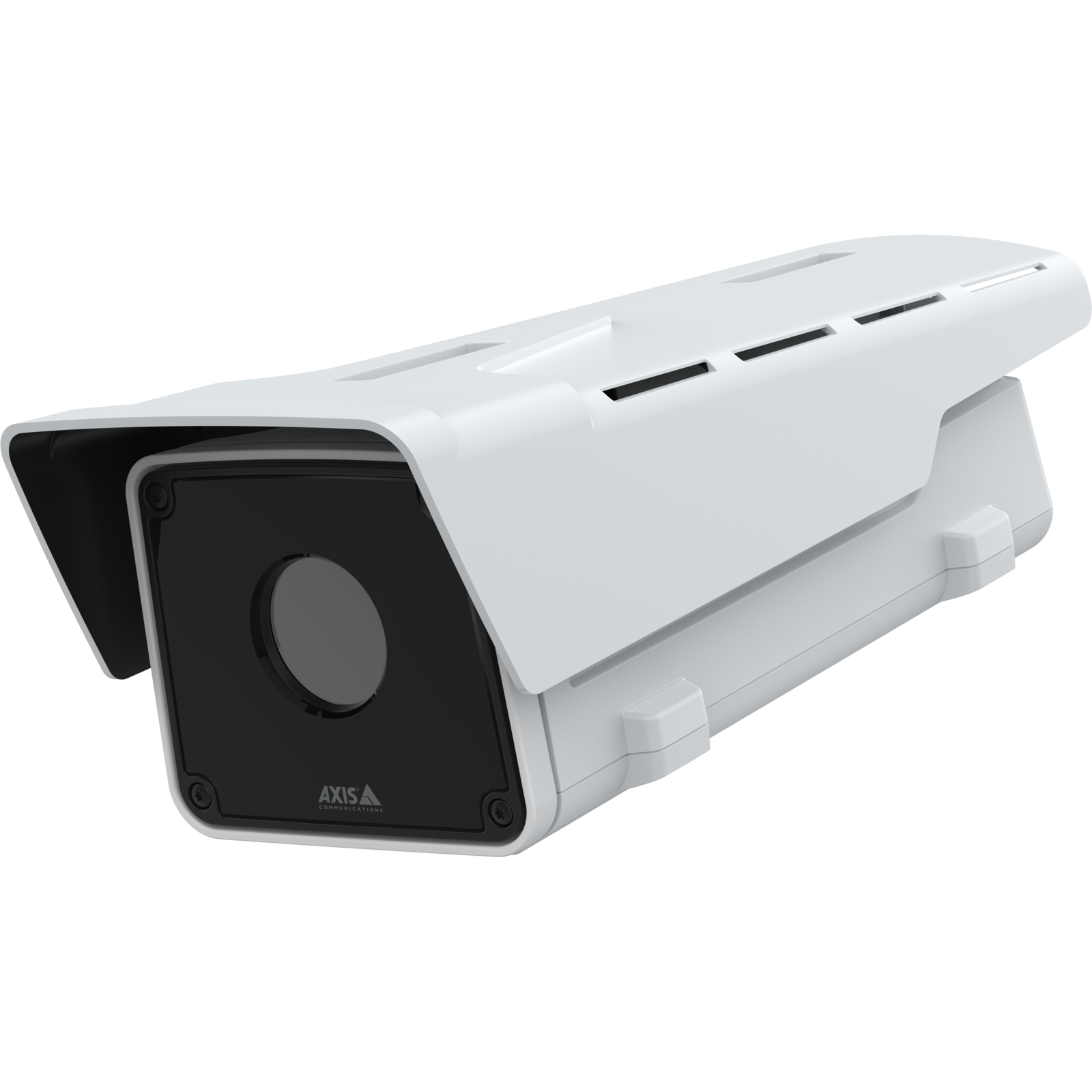

AXIS Q2112-E 100 mm Thermal Camera
,

AXIS Q2112-E 100 mm Thermal Camera

High-end thermal surveillance for long-range monitoring

  • VGA thermal sensor on ARTPEC-8 platform
  • Exceptional thermal sensitivity (low NETD)
  • 100 mm lens for long-range surveillance (non-user-changeable)
  • Robust IK10 and IP66/67-rated, halogen-free
  • Built-in cybersecurity and edge-to-edge functionality
  • PT-mount supported with guard tour capability (PT head sold separately)

$11,559.00 USD

Request a quote

AXIS Q2112-E is an ARTPEC-8 based VGA-resolution thermal camera built for long-range surveillance with exceptionally high thermal sensitivity (low NETD). It is rated IK10 and IP66/67, is halogen-free, and includes built-in cybersecurity features to help safeguard your system.

Edge-to-edge functionality lets you connect network speakers and other AXIS network devices. Q2112-E can be PT-mounted (PT head sold separately); when PT-mounted it supports guard tour, enabling monitoring of very large and complex scenes. Note: lenses are not user-changeable — order the correct version. No mounting accessory is included; an arm or PT-unit must be ordered separately.

AXIS Product Number: 02614-001

Technical specifications

Key specifications: video resolution up to 800×600; IP66, IP67 rated; operating range -40 to 60 °C; PoE Class 4 powered. Manufacturer part number 02614-001.

Camera

Specification Value
Image sensor Uncooled microbolometer
Thermal sensitivity (NETD) <20mK @ 25C, F1.0
Thermal sensor resolution 640×480

Video

Specification Value
Max video resolution 800×600
Max frames per second * 8.3 / 30 / 8.3 / 30 / 30 / 30 / 8.3 / 30 / 8.3 / 8.3 / 8.3 / 30
Electronic image stabilization Yes
Thermal palettes Yes

Lens

Specification Value
Focal length * 25 / 19 / 60 / 10 / 25 / 60 / 35 / 35 / 19 / 10 / 100 / 100 mm
Horizontal field of view * 24.1 / 31 / 10 / 63 / 24.1 / 10 / 17 / 17 / 31 / 63 / 6.2 / 6.2 °
Vertical field of view * 18.5 / 24 / 7.7 / 46 / 18.5 / 7.7 / 13 / 13 / 24 / 46 / 4.6 / 4.6 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main

Audio

Specification Value
Audio Support Yes

Sys

Specification Value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs 4
Serial connectors Yes
Video motion detection Yes

Network

Specification Value
PoE Class 4

Security

Specification Value
Signed OS Yes

General

Specification Value
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
IP rating IP66, IP67

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: 02614-001 Categories: , Brand:
Weight 10.47 lbs
Dimensions 21.46 × 8.07 × 9.25 in
Product Number

02614-001
Manufacturer

Axis Communications
