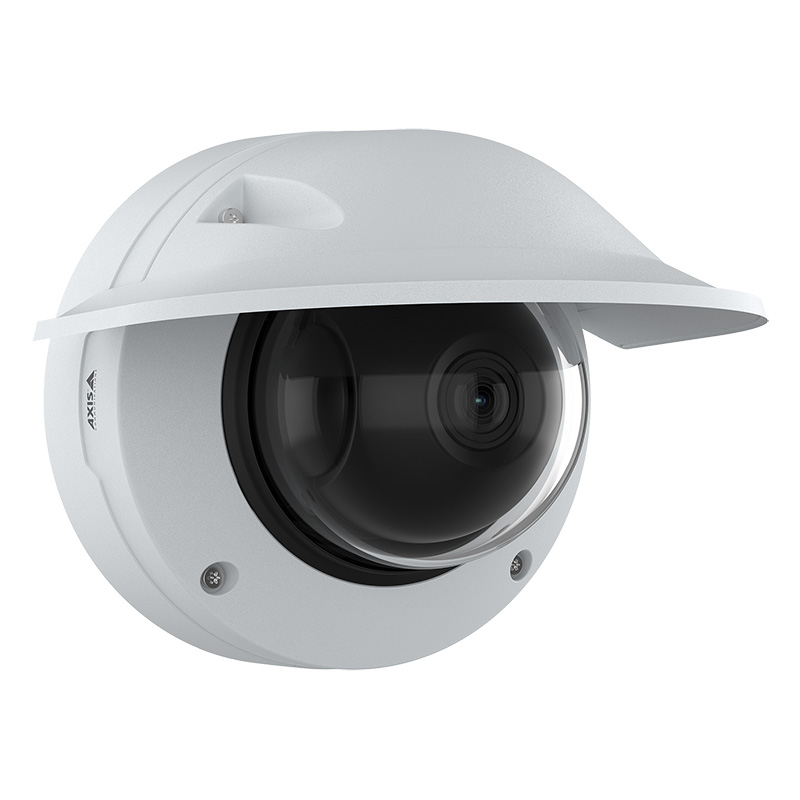

AXIS Q3628-VE Dome Camera
Advanced 8 MP dome with remote adjustment
- Outstanding image quality in 8 MP
- Remote adjustment of the camera angle
- Analytics with deep learning
- Electronic image stabilization
- Axis Edge Vault
This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it’s quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.
$1,889.00 USD
Advanced dome camera with remote adjustment by Pan, Tilt, Roll and Zoom (PTRZ). Inlcudes a Deep Learning Processing Unit (DLPU) for advanced edge analytics. Support for Forensic WDR, Lightfinder 2.0. Robust, dust- and IK10 vandal-resistant outdoor-ready metal casing. Varifocal 6-13 mm P-Iris lens with remote pan, tilt, roll, zoom and focus. Electronic Image Stabilization. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 8MP stream up to 60 fps, 30fps with WDR. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. Sensors for intrusion and shock. MQTT support. AXIS Edge Vault with FIPS certified TPM for added cyber security. MicroSD memory card slot for local storage. Powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy. Includes mounting bracket and weather shield.
Product number: 02617-004
SKU: 7331021081406

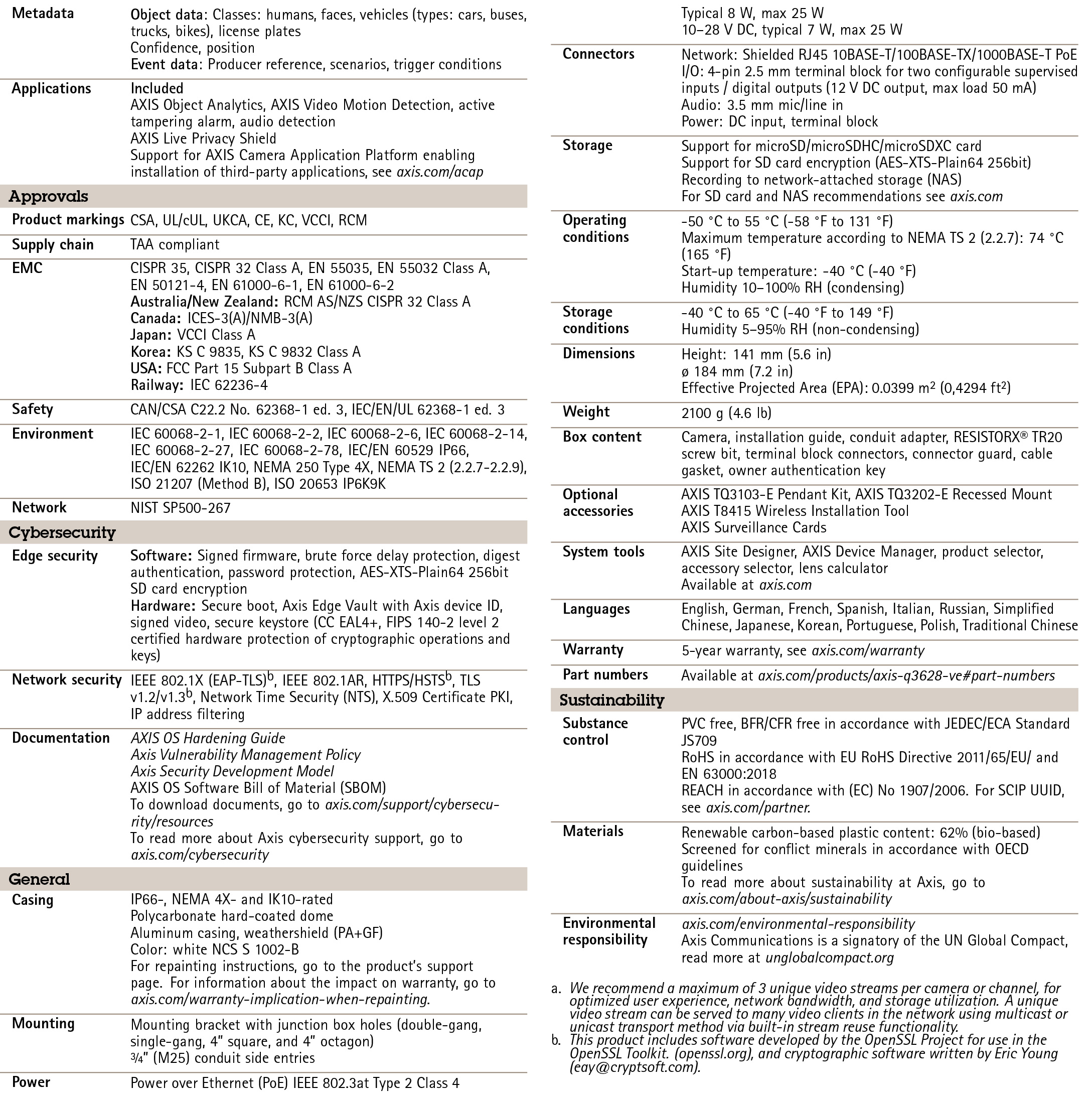

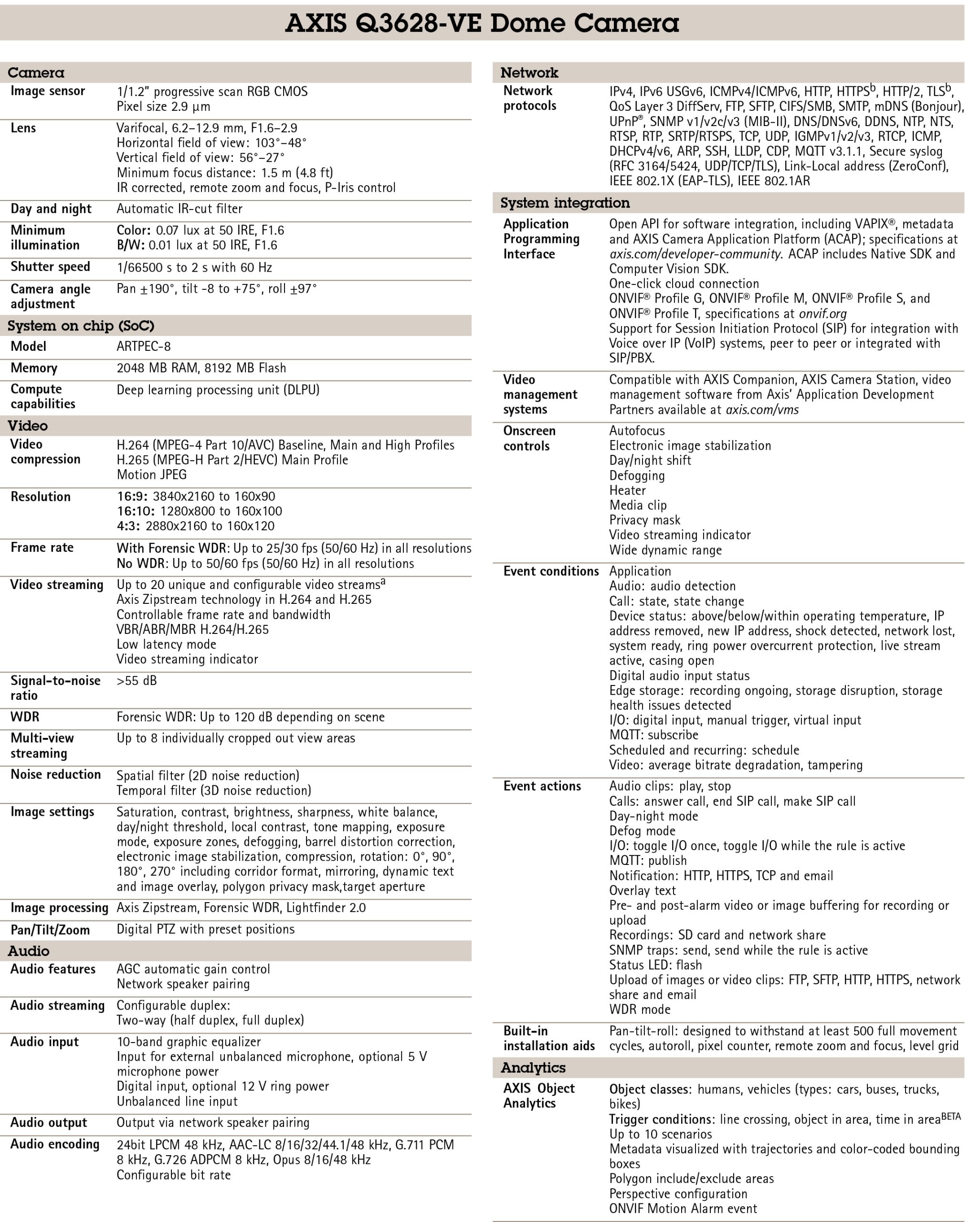

Technical specifications
Key specifications: video resolution up to 3840×2160; IP66, IP6K9K rated; IK10 vandal-resistant; operating range -50 to 55 °C; PoE Class 4 powered; Forensic WDR. Manufacturer part number 02617-004.
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/1.2" |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.07 lux |
| Min illumination/ light sensitivity (B/W) | 0.0149 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 3840×2160 |
| Max frames per second | 50/60 |
| Day and Night functionality | Yes |
| Electronic image stabilization | Yes |
Lens
| Specification | Value |
|---|---|
| Focal length | 6.2 – 12.9 mm |
| Horizontal field of view | 103 – 48 ° |
| Vertical field of view | 56.4 – 27.4 ° |
Pan Tilt Zoom
| Specification | Value |
|---|---|
| Remote PTRZ | Yes |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| AV1 | – |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
| Built-in microphone | – |
Network
| Specification | Value |
|---|---|
| PoE Class | 4 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+) |
| Axis Edge Vault | Yes |
General
| Specification | Value |
|---|---|
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -50 to 55 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66, IP6K9K |
| Designed for repaint | Yes |
| Sustainability | BFR/CFR free, PVC free |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | 6.31 lbs |
|---|---|
| Dimensions | 10.43 × 8.66 × 7.48 in |
| Product Number | 02617-004 |
| Warranty | 5 Year Warranty |
| Manufacturer | Axis Communications |
