AXIS Q4809-PVE

AXIS Q4809-PVE

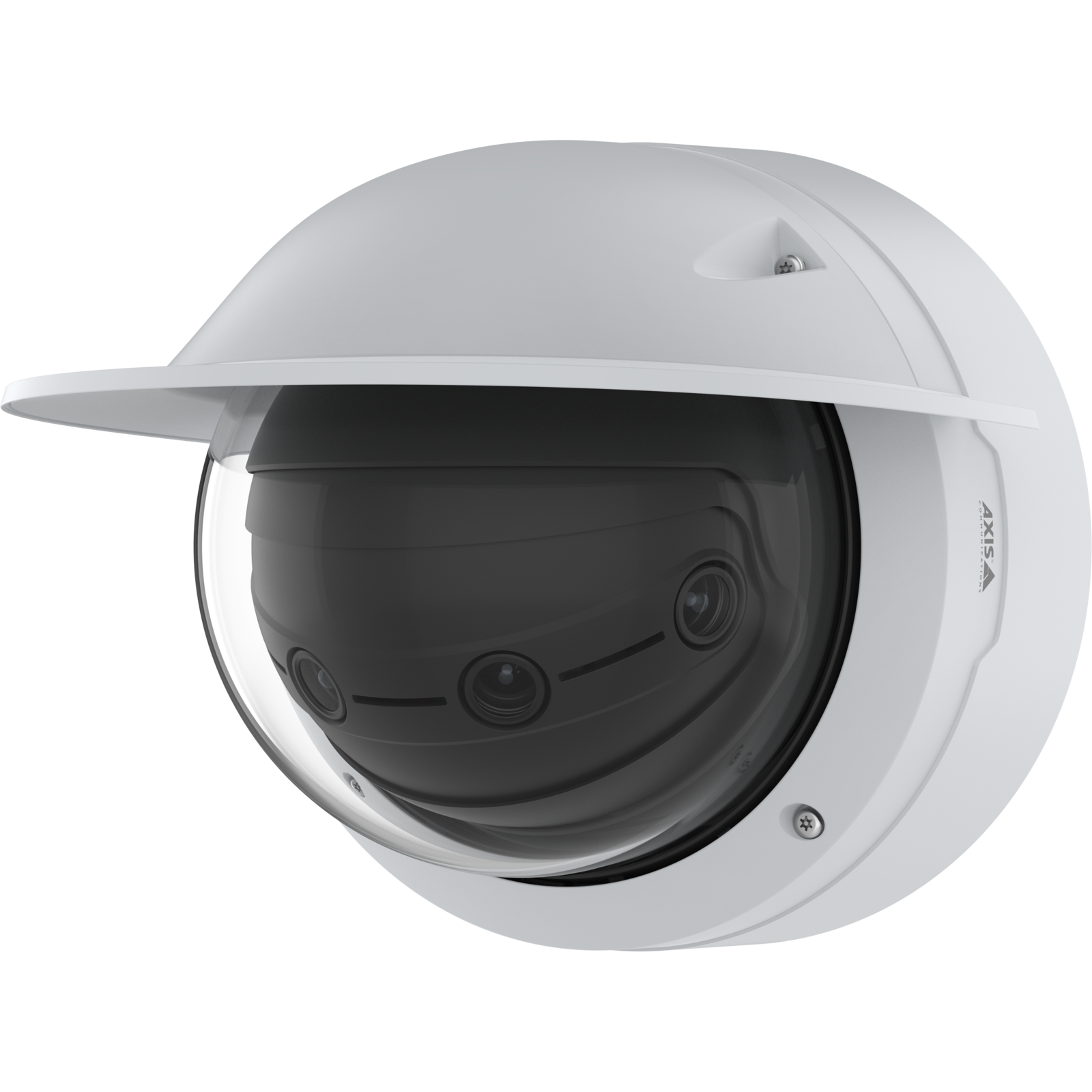

AXIS panoramic network camera

  • With 26 MP resolution and seamless stitching of all four images, it offers 180° horizontal and 45° vertical coverage at 25/30 FPS
  • The camera is ideal for situations where detail is important, offering very high pixel density
  • The product’s powerful AI solution is made possible by a dual ARTPEC-8 chipset and gives a comprehensive analytics experience over the whole 180° field of view
  • | AXIS Product Number: 02658-001

$2,649.00 USD

Request a quote

AXIS Q4809-PVE delivers a 180º panoramic overview of extensive areas. With 26 MP resolution and seamless stitching of all four images, it offers 180° horizontal and 45° vertical coverage at 25/30 FPS. The camera is ideal for situations where detail is important, offering very high pixel density. The product’s powerful AI solution is made possible by a dual ARTPEC-8 chipset and gives a comprehensive analytics experience over the whole 180° field of view. AXIS Q3839-PVE comes with pan/tilt/roll installation motors for ease of installation and offers the Horizon Straightening feature for natural 180° views.

AXIS Product Number: 02658-001

Technical specifications

Key specifications: video resolution up to 10240×2560; IP66, IP67 rated; IK10 vandal-resistant; operating range -40 to 50 °C; Forensic WDR. Manufacturer part number 02658-001.

Camera

Specification Value
Image sensor CMOS
Image sensor size 1/2.3"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.03 lux

Video

Specification Value
Max video resolution 10240×2560
Max frames per second 30
Day and Night functionality Yes
Electronic image stabilization –

Lens

Specification Value
Focal length 5.05 mm
Horizontal field of view 180 °
Vertical field of view 45 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes

Audio

Specification Value
Audio Support Yes

Security

Specification Value
Signed OS Yes
Secure boot Yes

General

Specification Value
Remote focus –
Remote zoom –
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Sustainability BFR/CFR free, PVC free

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
