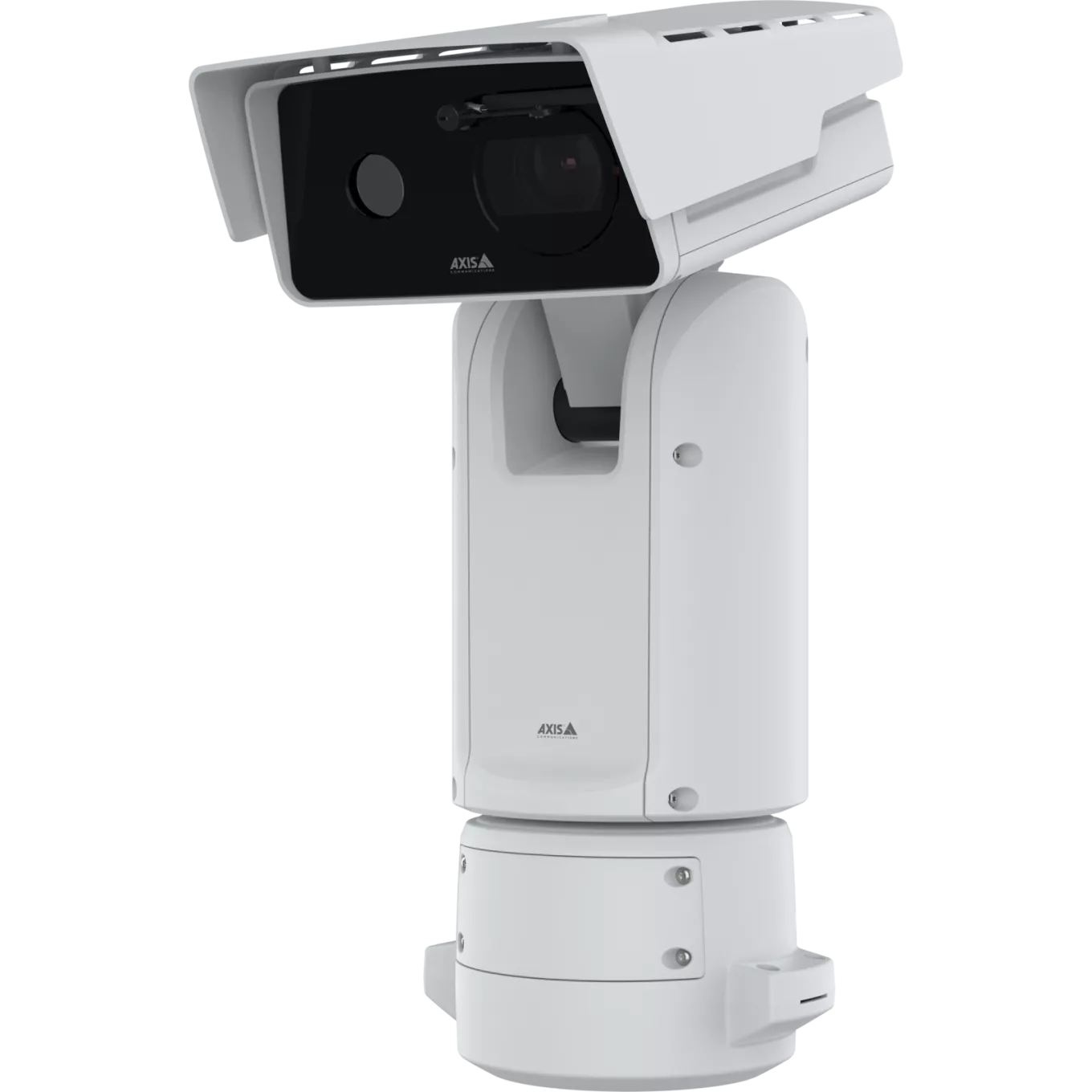

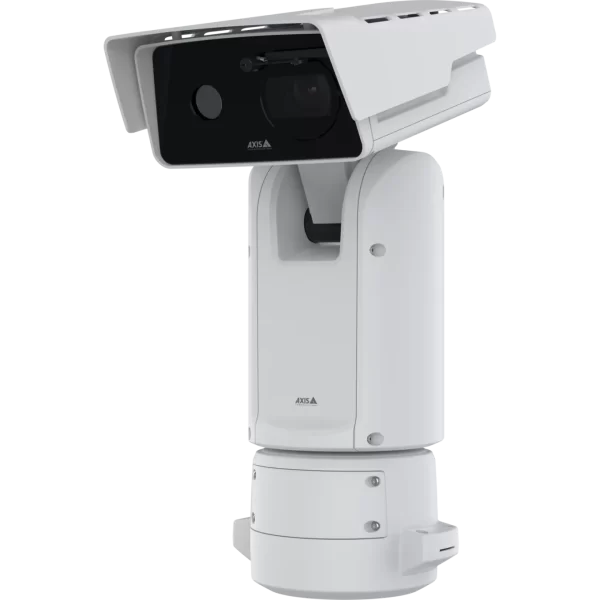

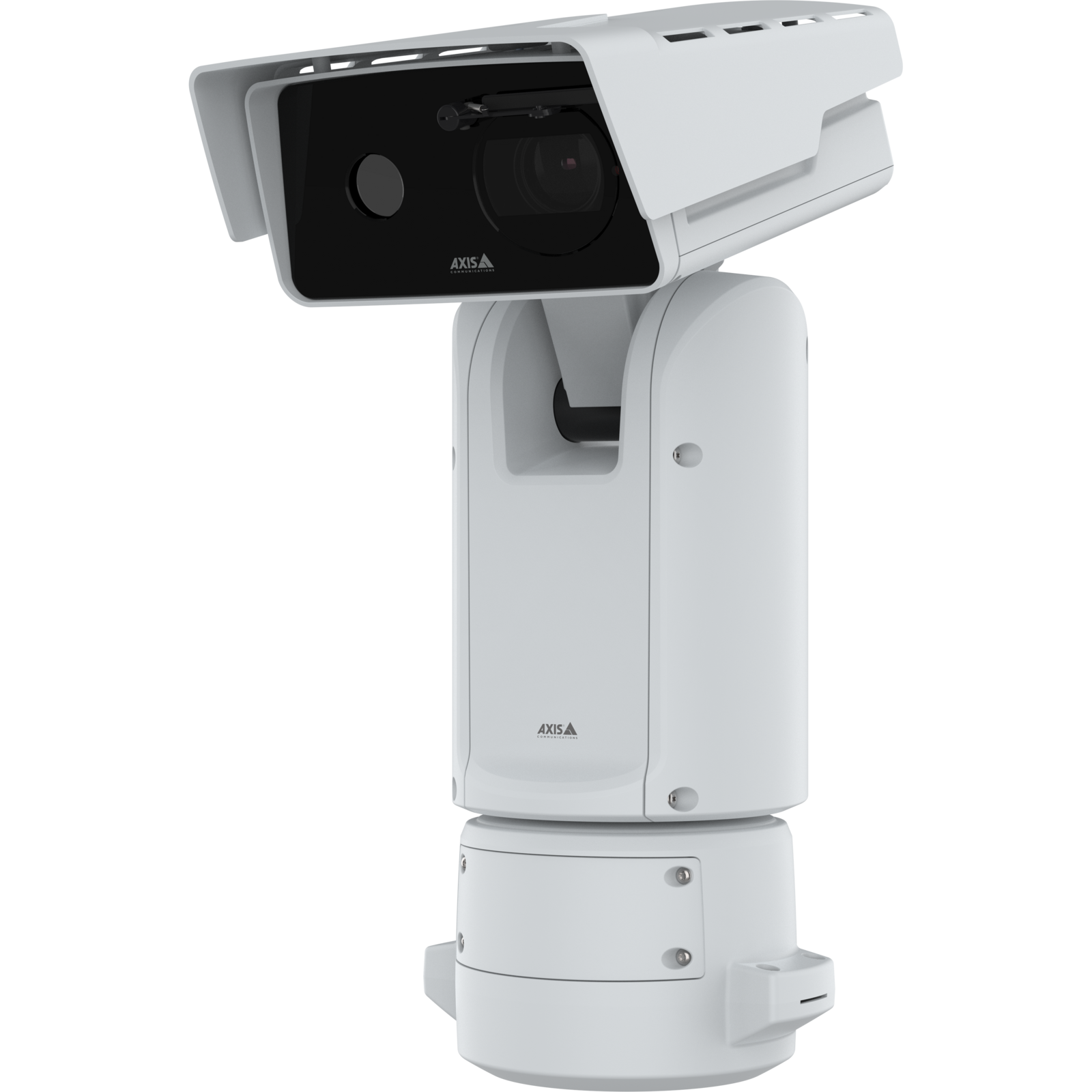

AXIS Q8752-E Mk II Bispectral PTZ Camera
Thermal detection and visual verification
- Thermal and visual camera in one
- 360° infinite pan
- Dual electronic image stabilization
- Built-in cybersecurity
- Thermal palettes
Ideal for perimeter surveillance and border control, this bispectral camera offers reliable thermal detection and visual identification with 32x integrated optical zoom. It’s available in two versions with either 3x thermal zoom or without thermal zoom capabilities.
Price range: $21,298.58 through $45,637.38 CAD
High accuracy outdoor PTZ positioning Bispectral camera based on AXIS ARTPEC7 platform. Thermal sensor features a 640×480 resolution, 8.3 fps and 35-105 mm thermal zoom lens. Visual sensor have HDTV 1080p video resolution, 32x optical zoom, focus recall and is extremly light sensitive. EIS (Electronic Image Stabilization) on both channels ensures focused and stable video. Integrated long-life silicone wiper for remote maintenance. The bispectral camera supports Zipstream, ONVIF, H.265 and local storage. Included cybersecurity features are TPM-module, Axis secure boot and comes with signed FW. It includes Video motion detection and support for AXIS Camera Application Platform enabling installation of AXIS Perimeter Defender and third-party applications. Responsive absolute positioning with high-speed and ultra-smooth pan and tilt capabilities. Integrated SFP slot for long-distance fiber connection. IP66, NEMA 4X rated and UL listed. Ready for column-mount. Powered by 56 V AC/DC from external power supply (not included).
This product is subject to export control regulations. You should always consult and comply with the regulations of the appropriate local export control authorities.
Product numbers –
Zoom 8.3 fps: 03050-001
Zoom 30 fps: 03051-001
35 mm 8.3 fps: 03052-001
35 mm 30 fps: 03053-001
Technical specifications
Key specifications: video resolution up to 1920×1080; 32x optical zoom; IP66 rated; IK10 vandal-resistant; operating range -40 to 55 °C; Forensic WDR. Manufacturer part number .
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/2.8" |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | 0.02 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 1920×1080 |
| Max frames per second | 50/60 |
| Day and Night functionality | Yes |
| Electronic image stabilization | Yes |
Analytics
| Specification | Value |
|---|---|
| Autotracking version | Autotracking 2 |
| Orientation aid | orientation aid PTZ |
Lens
| Specification | Value |
|---|---|
| Focal length | 4.3-137.6 mm |
| Horizontal field of view | 58.5-2.4 ° |
| Vertical field of view | 34.9 – 1.3 ° |
| Detection range: Human (1.5px) * | 3056.00 / 3056.00 / 1079.00 / 1079.00 m |
| Detection range: Vehicle (1.5px) * | 9371.00 / 9371.00 / 3307.00 / 3307.00 m |
Pa
| Specification | Value |
|---|---|
| Pan range | 360 endless |
| Tilt range | -90 to 45 |
| Guard tour | preset position tour |
| Optical zoom | 32 |
| Digital zoom | 12 |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
| Built-in microphone | – |
System Integration
| Specification | Value |
|---|---|
| Audio detection | Yes |
| Active tampering | – |
| Alarm inputs/outputs | 4 |
| ONVIF Profile | G |
| Video motion detection | Yes |
Network
| Specification | Value |
|---|---|
| PoE Class | – |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| TPM | Yes |
G
| Specification | Value |
|---|---|
| Built-in IR | – |
| OptimizedIR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -40 to 55 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66 |
| Designed for repaint | Yes |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
| Weight | 40.57 lbs |
|---|---|
| Dimensions | 20.47 × 15.75 × 25.98 in |
| Product Number | 03050-001, 03051-001, 03052-001, 03053-001 |
| Warranty | 5 Year Warranty |
| Manufacturer | Axis Communications |
