AXIS X1100 Explosion-Protected PTZ Camera
Pre-order, by quote. Explosion-protected stainless steel 4K PTZ camera with 31x optical zoom, certified for hazardous areas. Part number 03066-001.
Call for Price USD

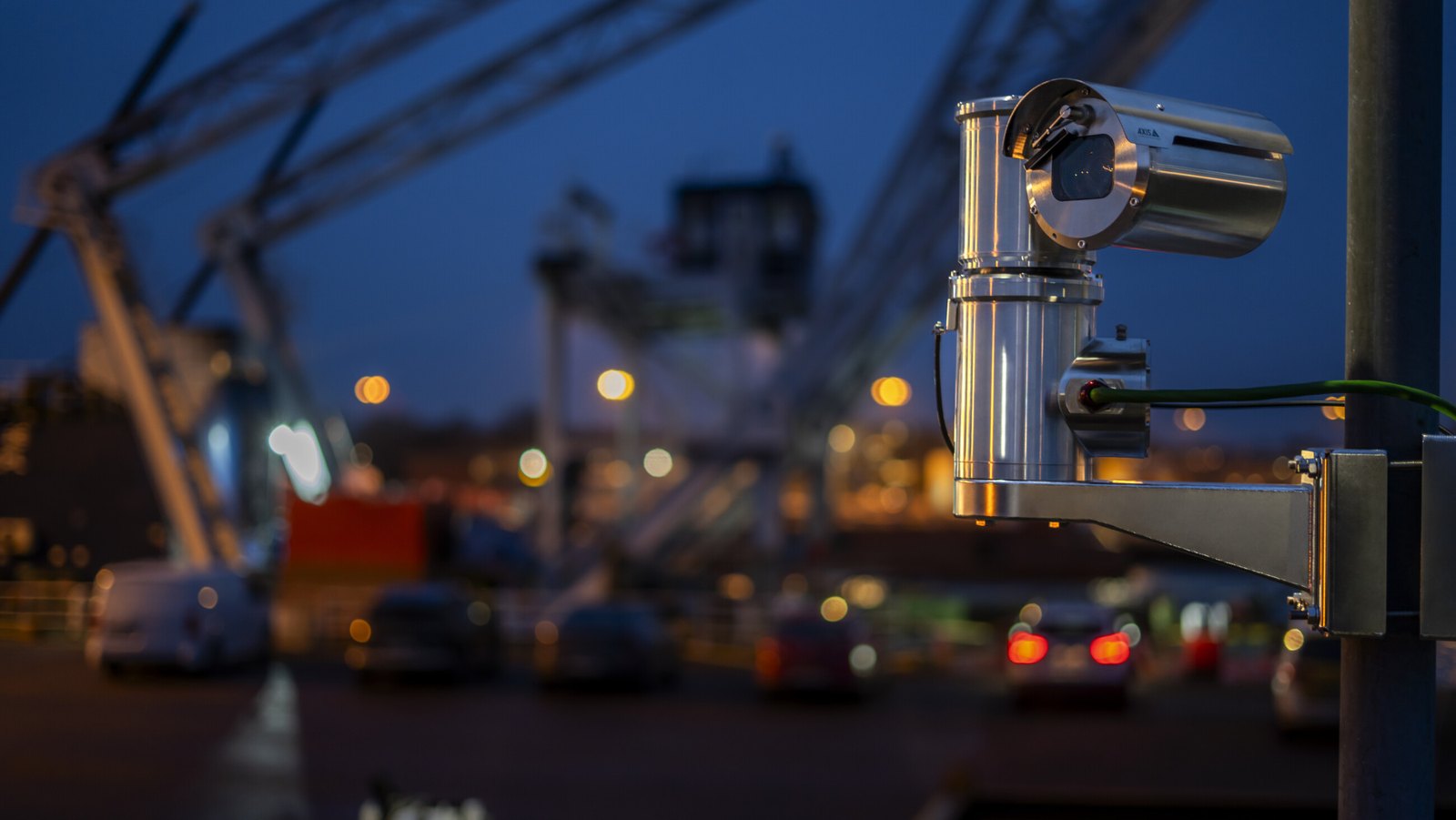

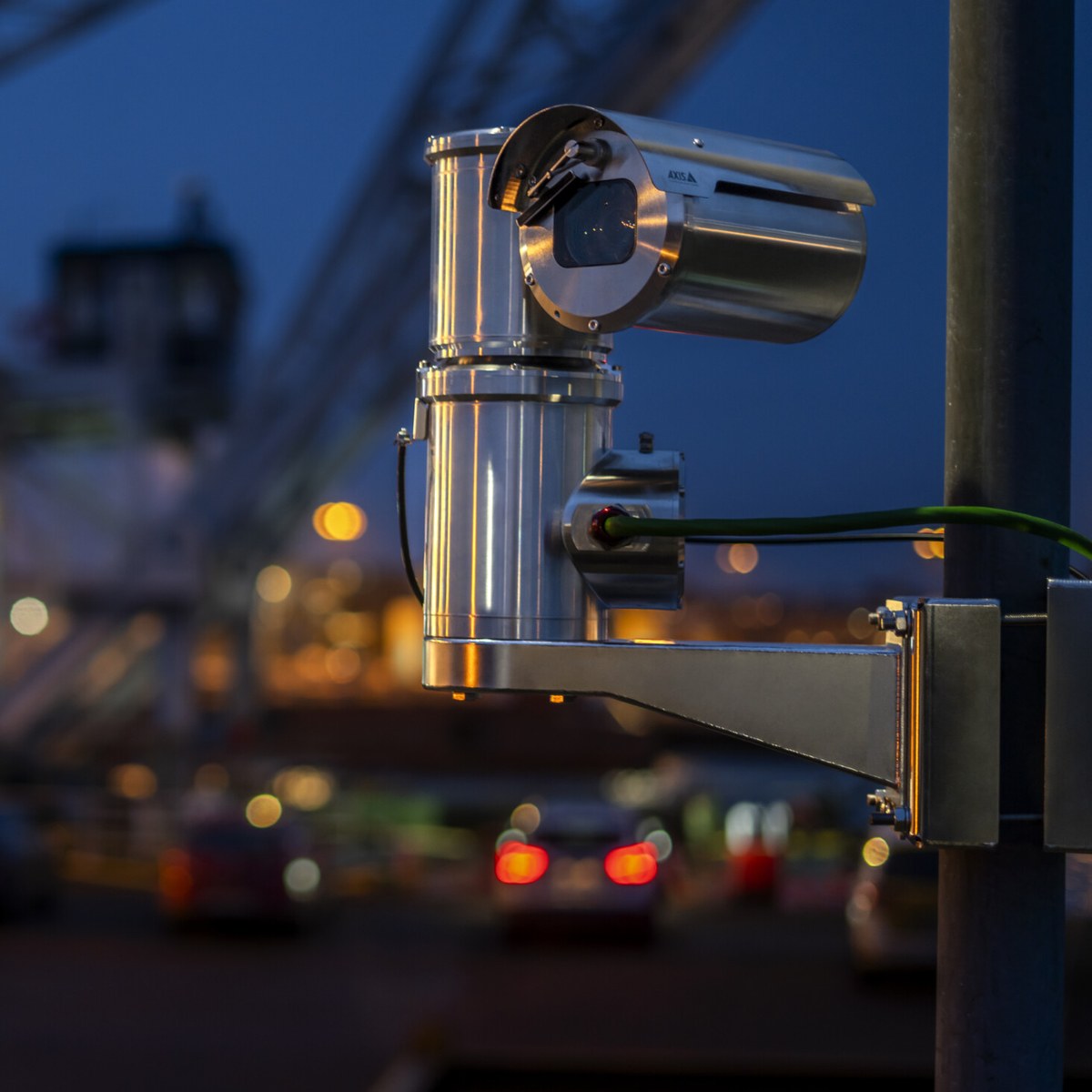

AXIS X1100 (part number 03066-001) is an explosion-protected PTZ network camera in 316L stainless steel, certified for hazardous areas under ATEX, IECEx and cSGSus. It has an ARTPEC-9 processor, 4K resolution with 31x optical zoom and autofocus, day/night operation, continuous 360° pan and ±90° tilt with 256 preset positions.
The camera delivers multiple individually configurable AV1, H.264 and Motion JPEG streams, supports ONVIF, WDR and electronic image stabilisation, and includes built-in smoke and fire detection. It operates from -55 °C to +60 °C on 110–230 V AC, with RJ45, SFP for fibre and an I/O relay. An integrated wiper, a sunshield and a 1 TB AXIS Surveillance microSDXC card are included.
Key specifications
| Specification | Value |
|---|---|
| Part number | 03066-001 |
| Type | Explosion-protected PTZ network camera |
| Housing | 316L stainless steel |
| Hazardous-area certifications | ATEX, IECEx, cSGSus: Ex db IIC T5 Gb; Ex tb IIIC T100°C Db; Class I/II/III Div 1 Groups B, C, D, E, F, G; Class I Zone 1 AEx db IIC T5 Gb; Zone 21 AEx tb IIIC T100°C Db |
| Ingress rating | IP66/IP67/IP68, Type 4X |
| Processor | ARTPEC-9 |
| Resolution | 4K |
| Optical zoom | 31x |
| Pan / tilt | Continuous 360° pan, ±90° tilt, 256 presets |
| Video compression | AV1, H.264, Motion JPEG |
| Analytics | Built-in smoke and fire detection |
| Operating temperature | -55 °C to +60 °C |
| Power | 110–230 V AC |
| Connectivity | RJ45, SFP (fibre), I/O relay |
| Included | Wiper, sunshield, 1 TB AXIS Surveillance microSDXC card |
