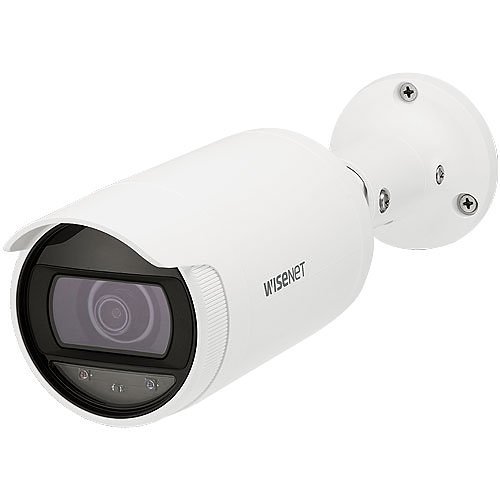

Wisenet A Series bullet camera, 2MP @ 30 FPS, 4mm fixed focal lens, FoV H: 84.3° / V: 45.6° WiseStream II, triple codec (H.265/H.264/MJPEG), 120dB WDR, IR LEDs 30m(98.43ft), day & night (ICR), virtual area (intrusion/enter/exit), virtual line (crossing/ direction), motion detection, tampering, hallway view, built-in SD card slot (1x32GB), IP66, PoE, white.
Available as Hanwha Vision part number ANO-L6022R.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 10fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.03 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.003 |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 4 |
| Max Aperture Ratio (F number) — Wide | 2.0 |
| Angular Field of View — Horizontal | 85° |
| Angular Field of View — Vertical | 46° |
| Angular Field of View — Diagonal | 99° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 0°~360° |
| Pan / Tilt / Rotate Range — Tilt | 0°~100° |
| Pan / Tilt / Rotate Range — Rotate | 0°~360° |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNR |
| Motion Detection — Quantity | 4ea |
| Motion Detection — Shape | Rectangler zones |
| Privacy Masking — Quantity | 6ea |
| Privacy Masking — Shape | Rectangular zones |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Triggers | Analytics |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED |
| Light Viewable Length — IR | 30m(98.43ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Specification | Value |
|---|---|
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 6 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 3 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API) |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 512MB |
| Memory — Flash | 256MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 32GB x 1slot |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -30°C~+55°C(-22°F~+131°F) |
| Operating Condition — Humidity | 0~95% RH(non-condensing) |
| Operating Condition — Others | Start up should be done at above -20°C |
| Storage Condition — Temperature | -30°C~+55°C(-22°F~+131°F) |
| Storage Condition — Humidity | 0~95% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption — PoE | Max 6.4W, Typical 5.0W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Plastic |
| RAL Code | RAL9003 |
| Product Dimensions | ø78.0×262.0mm(ø3.07×10.31”) |
| Product Weight | 390g(0.86lb) |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66 |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 41.9m(137.49ft) |
| Observe (63PPM/ 19PPF) — Wide | 16.8m(55.00ft) |
| Recognize (125PPM/ 38PPF) — Wide | 8.4m(27.50ft) |
| Identify (250PPM/ 76PPF) — Wide | 4.2m(13.75ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202407 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
