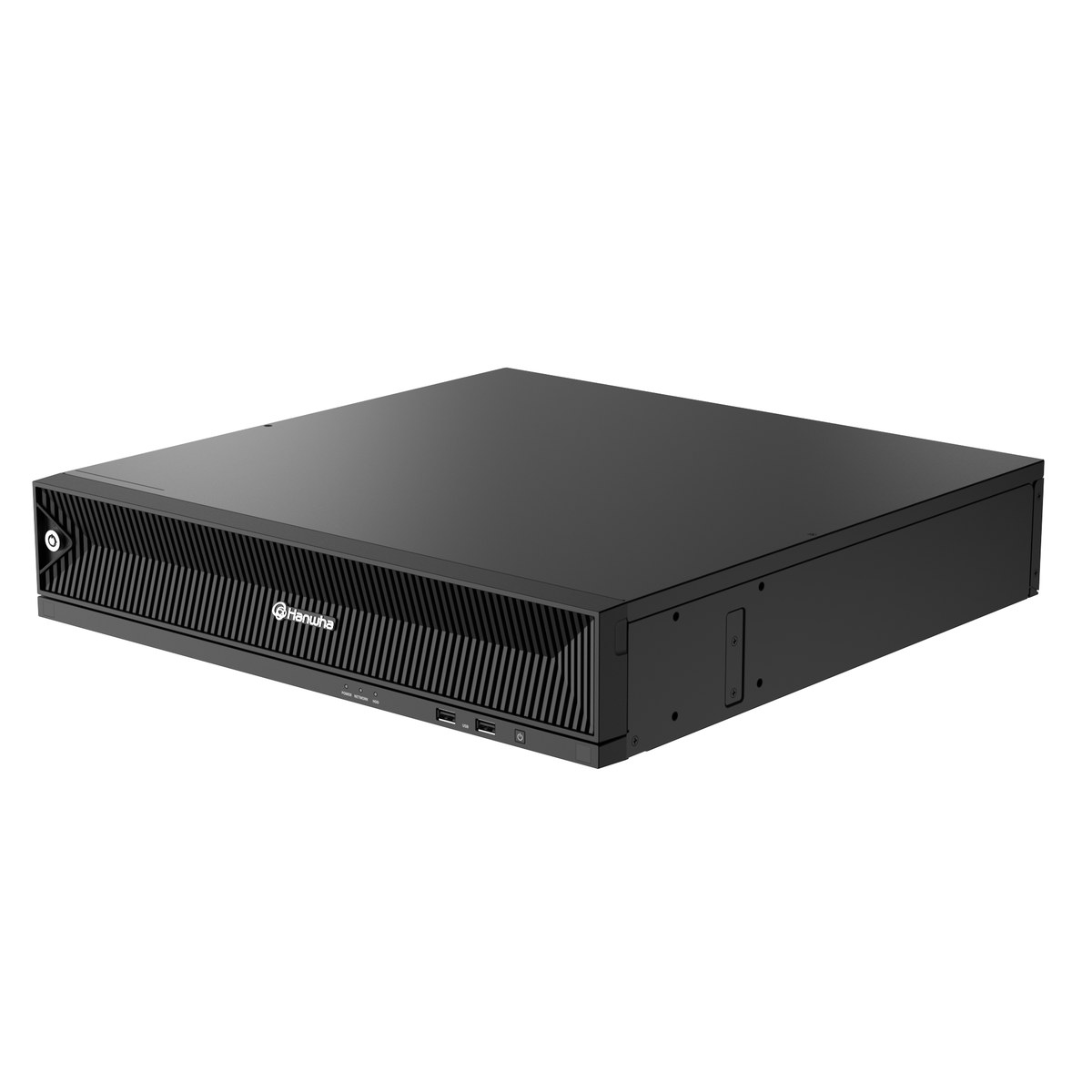

Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), main view

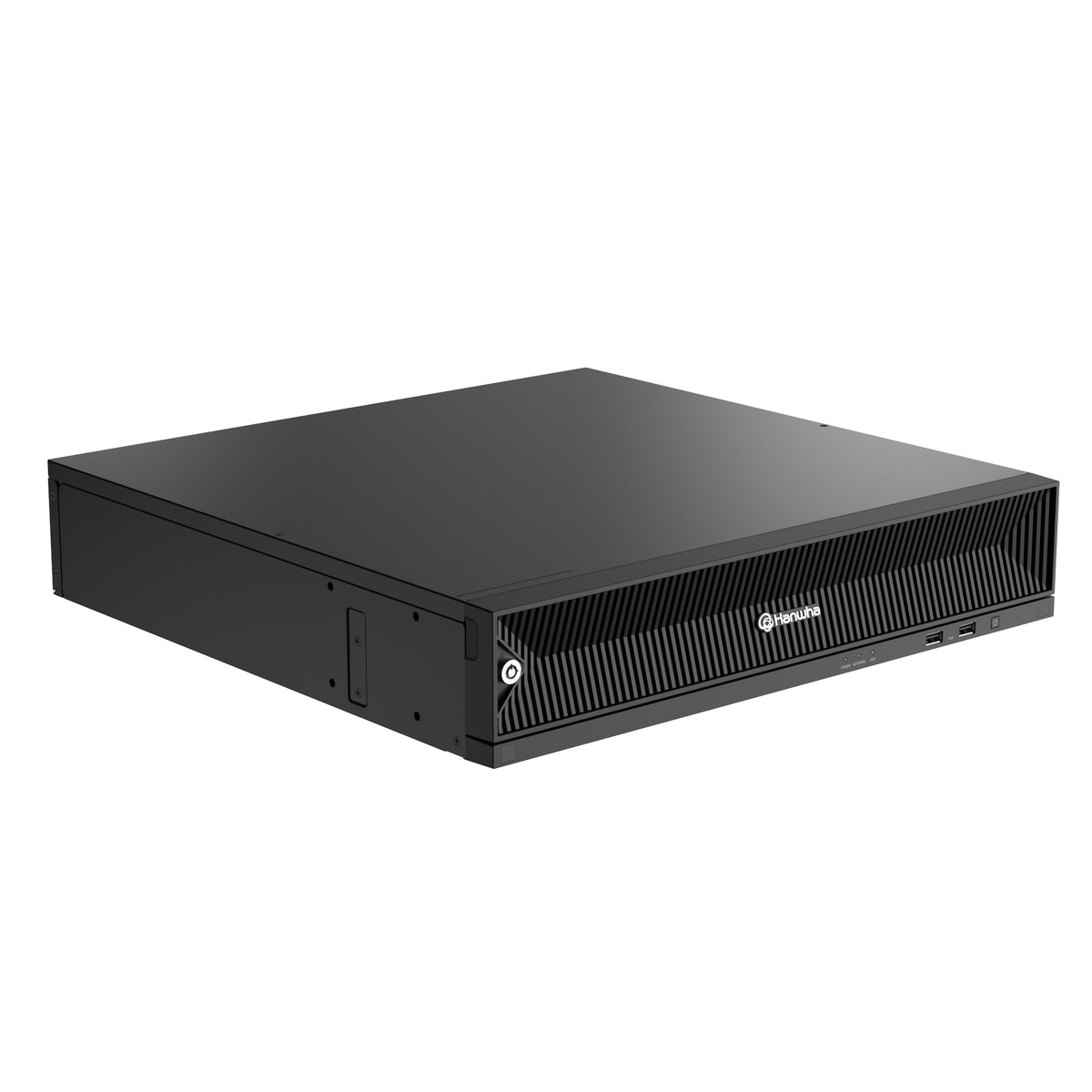

Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), right view

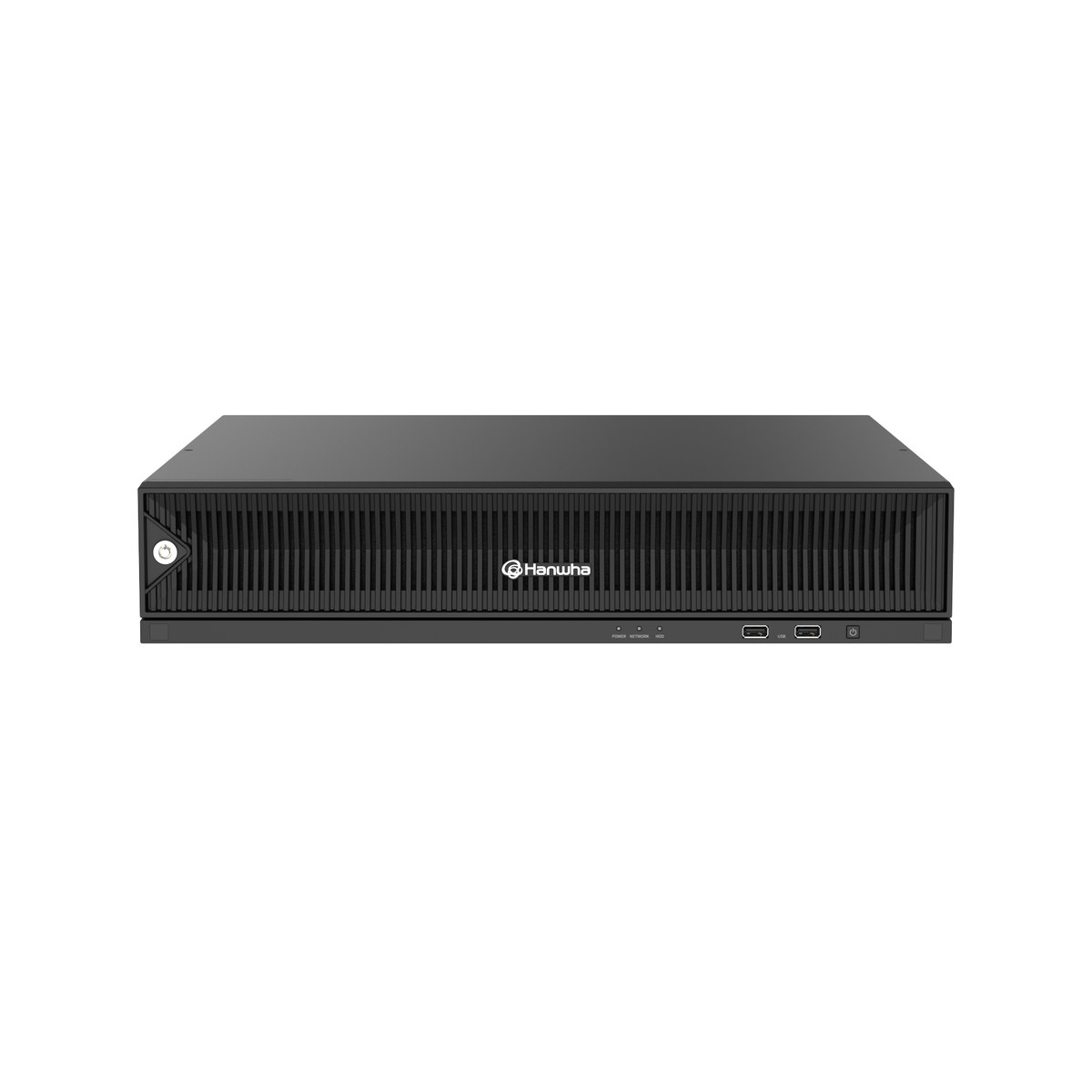

Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), front view

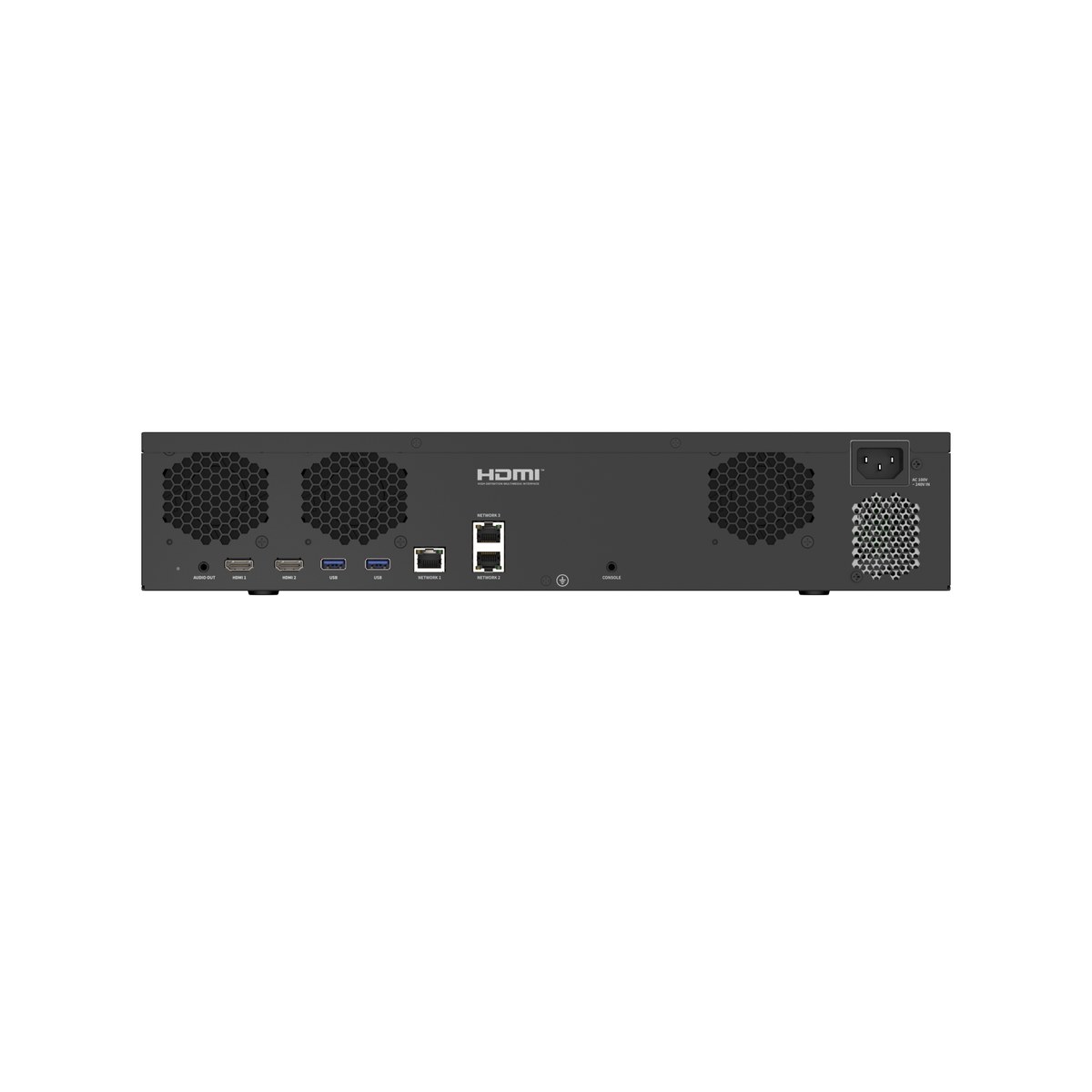

Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), rear view
Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), main view
Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), right view
Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), front view
Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS), rear view
,

Hanwha BRR-P3210A2E BLAZE Recording Appliance (Hardened OS)

BLAZE Recording Appliance (Hardened OS) with BLAZE pre-installed, in 6 capacities from 8 TB to 80 TB raw. Part numbers BRR-P3210A2E-8TB to BRR-P3210A2E-80TB.

Price range: $29,740.00 through $44,140.00 USD

Request a quote

The Hanwha BRR-P3210A2E is a 2U BLAZE Recording Appliance (12th Gen Intel Core-S i5) supplied with BLAZE VMS pre-installed. It is offered in 6 storage capacities from 8 TB to 80 TB raw; choose a capacity above to see its part number and price.

Hardware and software

  • BLAZE pre-installed
  • 32x BLAZE Premium Licenses & SUP included
  • Hardened OS
  • 8 fixed internal SATA HDD Bays
  • HDMI (FHD) and HDMI (4K) output
  • 3 x 1GbE NICs

Part numbers and capacities

Part number Raw storage
BRR-P3210A2E-8TB 8 TB
BRR-P3210A2E-16TB 16 TB
BRR-P3210A2E-20TB 20 TB
BRR-P3210A2E-32TB 32 TB
BRR-P3210A2E-40TB 40 TB
BRR-P3210A2E-80TB 80 TB

Technical specifications

System

Specification Value
Video Management Software BLAZE VMS
Licenses 32 x BLAZE Premium License
Available Channels Up to 32 channels
Recording Rate Up to 520Mbps
OS Drive Bays SSD 128GB
Data Drive Bays SATA 8ea
Data Storage Up to 80TB
RAID Support RAID 1, RAID 5, RAID 6
Network Interface 3 x RJ-45 (1Gbps)
Memory 16GB DDR4
AI Card Yes
Operating System Hardened OS
Decoding — Video Outputs 1 x HDMI(FHD), 1 x HDMI(4K)
USB Ports Front 2 x USB 2.0
Rear 2 x USB 3.0
Audio — Output 1x Audio output
Audio — Audio Communication 2-Way (Audio In: USB Mic)
Keyboard & Mouse Keyboard, Mouse

Security

Specification Value
Security Certificate FIPS 140-3 Level3

Mechanical

Specification Value
Form Factor 2U rack
Color / Material Black / Metal
Dimensions (WxHxD) 17.24"(438mm) x 3.39"(86mm) x 17.12"(434.9mm)
Weight 20.06lbs (9.10Kg)

Electrical

Specification Value
Power Input 100 ~ 240 VAC ±10%, 50/60 Hz
Power Consumption 238W (812.1BTU, Max)

Environmental

Specification Value
Operating Temperature 32°F to 104°F(0°C to 40°C)
Operating Humidity 20% to 85% RH (non-condensing)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
