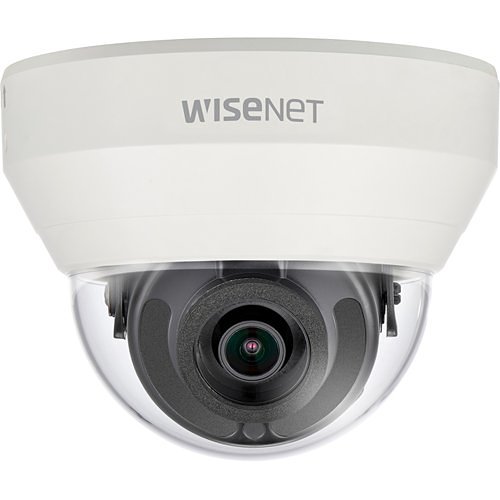

Hanwha HCD-6010 2MP Wisenet HD+ Indoor Dome Camera
,

Hanwha HCD-6010 2MP Wisenet HD+ Indoor Dome Camera

2MP Wisenet HD+ Indoor Dome Camera

$189.00 USD

Request a quote

Wisenet HD+ 2MP indoor dome camera, AHD, CVI, TVI, CVBS formats are available, 2.8 mm fixed lens, true D/N, 12VDC

Available as Hanwha Vision part number HCD-6010.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080
Max. Framerate(NTSC/PAL) 30fps/25fps
Min. Illumination — Color(1/30sec, 30IRE) 0.27
Min. Illumination — BW(1/30sec, 30IRE) 0.017
Video Out BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance 500m(5C2V Coaxial Cable)

Lens

Specification Value
Focal Length (mm) 2.8
Max Aperture Ratio (F number) — Wide 2.0
Angular Field of View — Horizontal 113.7°
Angular Field of View — Vertical 61.5°
Angular Field of View — Diagonal 134.5°
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~350°
Pan / Tilt / Rotate Range — Tilt 0°~67°
Pan / Tilt / Rotate Range — Rotate 0°~355°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection — Quantity 4ea
Privacy Masking — Quantity 8ea
Privacy Masking — Shape Rectangular zones
Gain Control Low, Middle, High, Very High
White Balance ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter — Speed Range 1~1/12,000sec
Video Rotation Flip, Mirror
Coaxial Protocol ACP, TCP, CCP, CVBS

Analytics

Specification Value
Analytics Events — Normal Motion detection

Environmental & Electrical

Specification Value
Operating Condition — Temperature -10°C~+55°C(+14°F~+131°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Input Voltage 12VDC
Power Consumption — 12VDC Max 3.6W

Mechanical

Specification Value
Color Ivory
Material PC(Polycarbonate)
Product Dimensions Ø110x86mm(4.33×3.39")
Product Weight 221g(0.49lb)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: HCD-6010 Categories: , Brand:
