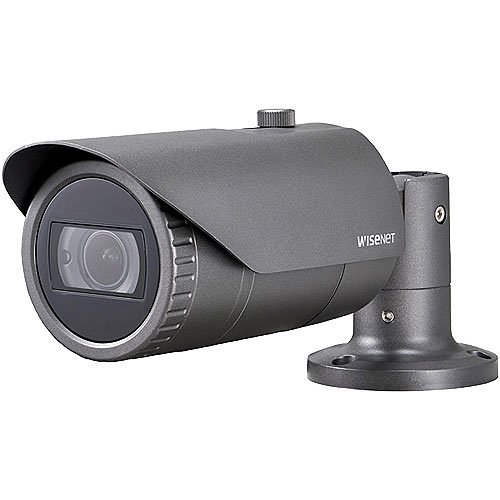

Wisenet HD+ 2MP, Full HD(1080p) 30fps IR outdoor bullet camera, AHD/TVI/CVI/CVBS, manual Vari-focal Lens (3.1X) (3.2-10mm), 120 dB true WDR, true D/N, 24VAC/12VDC, IR distance 98 feet, IP66/IK10

Available as Hanwha Vision part number HCO-6070R.

Technical specifications

Video

Specification	Value
Imaging Device — Size	1/2.8"
Imaging Device — Type	CMOS
Resolution	1920×1080
Max. Framerate(NTSC/PAL)	30fps/25fps
Min. Illumination — Color(1/30sec, 30IRE)	0.11
Min. Illumination — BW(1/30sec, 30IRE)	0.011
Video Out	BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance	500m(5C2V Coaxial Cable)

Lens

Specification	Value
Focal Length (mm)	3.2~10
Max Aperture Ratio (F number) — Wide	1.6
Angular Field of View — Horizontal	110°~32°
Angular Field of View — Vertical	55°~18°
Angular Field of View — Diagonal	128°~37°
Min. Object Distance	0.5m(1.64ft)
Focus Control	Manual
Lens Type	DC auto iris(IR corrected)

Operational

Specification	Value
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR
Wide Dynamic Range (dB)	120
Digital Noise Reduction	SSNRⅣ
Defog	Support
Motion Detection — Quantity	4ea
Privacy Masking — Quantity	8ea
Privacy Masking — Shape	Rectangular zones
Gain Control	Low, Middle, High, Very High
White Balance	ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter — Speed Range	1~1/12,000sec
Video Rotation	Flip, Mirror
Alarm Interface — In/Out	Output 1ea
Alarm Triggers	Analytics
Alarm Events When Alarm Trigger Occurred	Alarm output
IR Viewable Length	30m(98.43ft)
Coaxial Protocol	ACP, TCP, CCP, CVBS

Analytics

Specification	Value
Analytics Events — Normal	Motion detection

Environmental & Electrical

Specification	Value
Operating Condition — Temperature	-30°C~+55°C(-22°F~+131°F)
Operating Condition — Humidity	0~90% RH(non-condensing)
Input Voltage	24VAC, 12VDC
Power Consumption — 12VDC	Max 6W
Power Consumption — 24VAC	Max 6W

Mechanical

Specification	Value
Color	Dark grey
Material	Aluminum
Product Dimensions	ø78.0×259.8mm(3.07×10.23")
Product Weight	913g(2.02lb)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: HCO-6070R Categories: Analog HD Cameras, Video Cameras Brand: Hanwha

Hanwha HCO-6070R 2MP Analog HD IR Bullet
