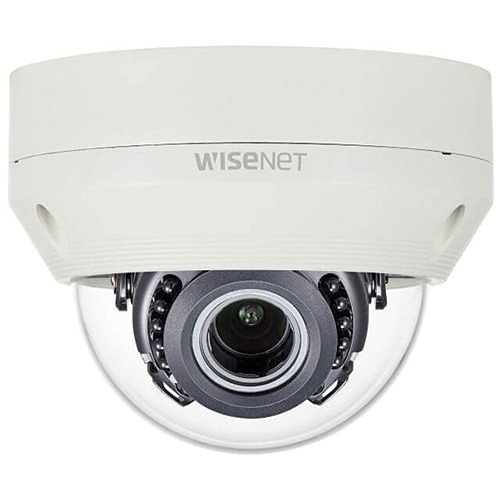

Hanwha HCV-6070R 2MP Analog HD IR Outdoor Dome
,

Hanwha HCV-6070R 2MP Analog HD IR Outdoor Dome

2MP Analog HD IR Outdoor Dome

$315.00 USD

Request a quote

Wisenet HD+ 2MP, Full HD(1080p) 30fps IR outdoor dome camera, AHD/TVI/CVI/CVBS, manual Vari-focal Lens (3.1X) (3.2-10mm), 120 dB true WDR, true D/N, 24VAC/12VDC, IR distance 98 feet, IP66/IK10

Available as Hanwha Vision part number HCV-6070R.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080
Max. Framerate(NTSC/PAL) 30fps/25fps
Min. Illumination — Color(1/30sec, 30IRE) 0.11
Min. Illumination — BW(1/30sec, 30IRE) 0.011
Video Out BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance 500m(5C2V Coaxial Cable)

Lens

Specification Value
Focal Length (mm) 3.2~10
Optical Zoom Ratio 3.1x
Max Aperture Ratio (F number) — Wide 1.6
Angular Field of View — Horizontal 110.2°~32°
Angular Field of View — Vertical 55.4°~18°
Angular Field of View — Diagonal 128.4°~36.6°
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC auto iris(IR corrected)
Optional Lens 0.5m(1.64ft)

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0° ~ 350°
Pan / Tilt / Rotate Range — Tilt 0° ~ 67°
Pan / Tilt / Rotate Range — Rotate 0° ~ 355°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection — Quantity 4ea
Privacy Masking — Quantity 8ea
Privacy Masking — Shape Rectangular zones
Gain Control Low, Middle, High, Very High
White Balance ATW, AWC, Manual, Indoor
Electronic Shutter — Speed Range 1~1/12,000sec
Video Rotation Flip, Mirror
Alarm Interface — In/Out Output 1ea
Alarm Triggers Analytics
Alarm Events When Alarm Trigger Occurred Alarm output
IR Viewable Length 30m(98.43ft)
Coaxial Protocol ACP, TCP, CCP, CVBS

Analytics

Specification Value
Analytics Events — Normal Motion detection

Environmental & Electrical

Specification Value
Operating Condition — Temperature -30°C~+55°C(-22°F~+131°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Input Voltage 24VAC, 12VDC
Power Consumption — 12VDC Max 4.2W
Power Consumption — 24VAC Max 4.2W

Mechanical

Specification Value
Color Ivory
Material Aluminum
Product Dimensions Ø137×106.1mm(5.39×4.18")
Product Weight 715g(1.58 lb)

Certifications & Standards

Specification Value
Environment IEC 60529 IP66, IEC 62262 IK10

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
