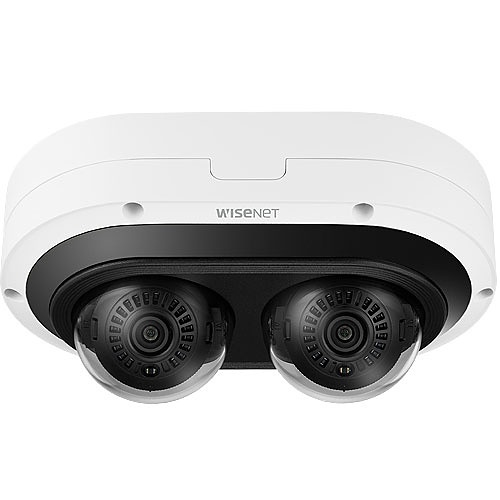

Hanwha PNM-7082RVD 2MP X 2, IR outdoor Dome
,

Hanwha PNM-7082RVD 2MP X 2, IR outdoor Dome

2MP X 2, IR outdoor Dome

$1,500.00 USD

Request a quote

Network vandal outdoor 2CH IR dome camera, (2MP X 2 sensors) 4MP @ 30fps, 3~6mm(2x) (107°~56.3°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG), IR viewable length 25m (82ft), USB port for easy installation, Day & Night (ICR), extremeWDR (150dB), DIS, Handover, IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events : Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10, Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble

Available as Hanwha Vision part number PNM-7082RVD.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.035
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.0035
Video Out USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 3~6
Zoom Ratio — Optical 2x
Max Aperture Ratio (F number) — Wide 2.2
Max Aperture Ratio (F number) — Tele 3.1
Angular Field of View — Horizontal 107°~56°
Angular Field of View — Vertical 57°~31°
Angular Field of View — Diagonal 126°~64°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type Fixed iris

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~355°
Pan / Tilt / Rotate Range — Tilt 0°~78°
Pan / Tilt / Rotate Range — Rotate 0°~180°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction WiseNR, SSNRⅤ
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape 4point Quadrangle zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Off, Max gain, Manual
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — Others Support alarm I/O via optional I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Audio In Support via optional I/O box
Audio Out Support via optional I/O box
Light Type IR LED
Light Viewable Length — IR 15m(49ft), 25m(82ft) based on scene
IR Wavelength 850nm

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
Application Programming Interface — ONVIF S, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Optional (needs gateway)

Security

Specification Value
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
Security Certificate TPM 2.0 with FIPS 140-2 level2

General

Specification Value
Memory — RAM 4GB
Memory — Flash 512MB
Edge Storage — Micro SD/SDHC/SDXC Max. 512GB x 1slot
Edge Storage(OnCloud) — Micro SD/SDHC/SDXC Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+55°C(-40°F~+131°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Operating Condition — Others Start up should be done at above -35°C
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~95% RH(non-condensing)
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption — PoE Max. 17W, typical 12.5W

Mechanical

Specification Value
Color White
Material Aluminum, Hard-coated dome
RAL Code RAL9003
Product Dimensions 215(W)x135(D)x93.2(H)mm(8.46×5.31×3.67")
Product Weight 1,330g(2.93lb)
Compatible Conduit Hole 12.7mm(1/2")(M20)
Compatible Gang Box Single, Double, 4" Octagon, Square

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 28.4m(93.22ft)
Detect (25PPM/ 8PPF) — Tele 72.2m(236.94ft)
Observe (63PPM/ 19PPF) — Wide 11.4m(37.29ft)
Observe (63PPM/ 19PPF) — Tele 28.9m(94.78ft)
Recognize (125PPM/ 38PPF) — Wide 5.7m(18.64ft)
Recognize (125PPM/ 38PPF) — Tele 14.4m(47.39ft)
Identify (250PPM/ 76PPF) — Wide 2.8m(9.32ft)
Identify (250PPM/ 76PPF) — Tele 7.2m(23.69ft)

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
