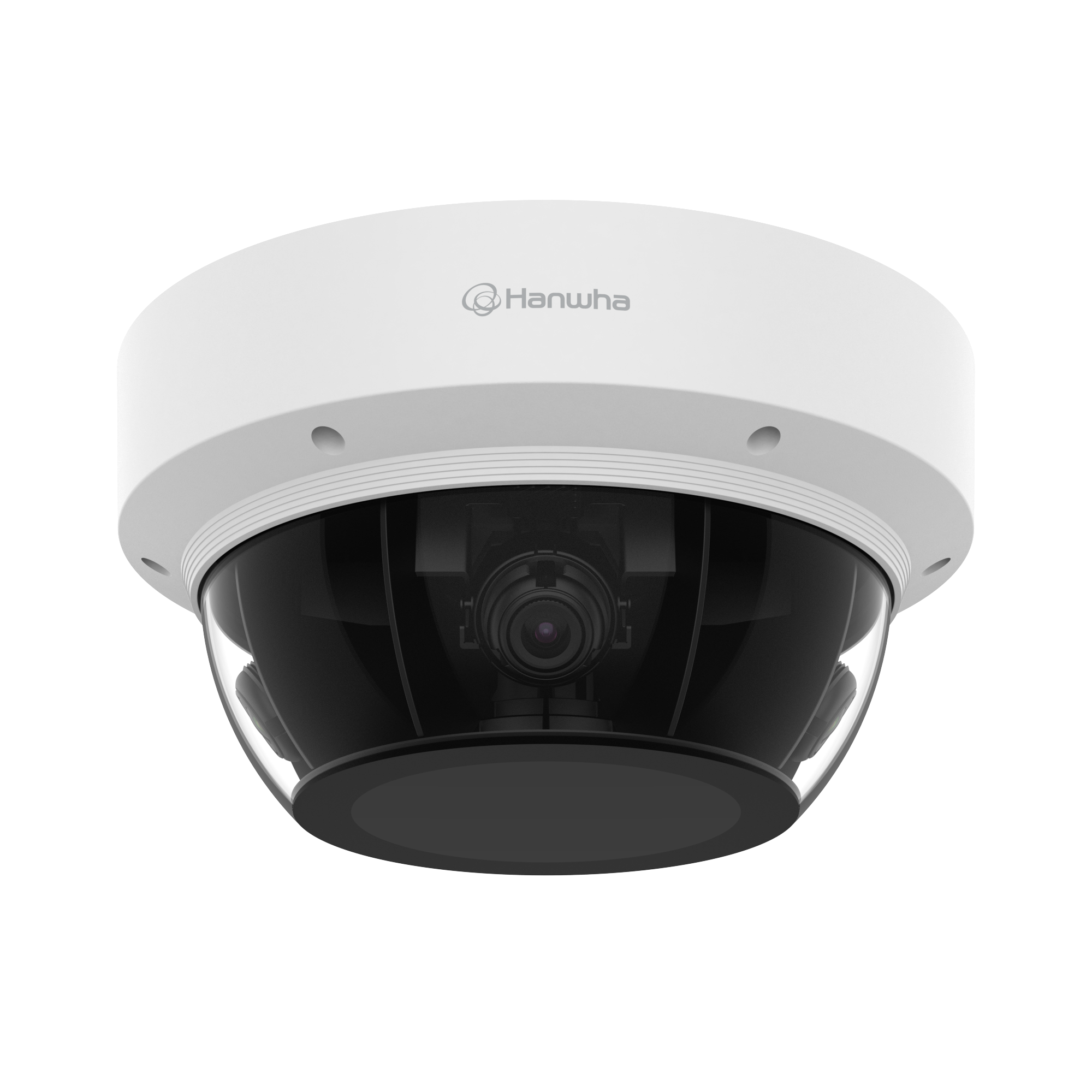

Network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP/5MP X 4 sensors sold separately) 8MP ~20MP (2MP @ 60fps or 5MP @30fps), fixed focal lens modules, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, PTZ handover, 4x SD card, hallway view, HLC, defog detection, DIS(Gyro Sensor), PoE+, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F) 2MP Lens modules: SLA-2M2400Q (2.4mm), SLA-2M2800Q (2.8mm), SLA-2M3600Q (3.6mm), SLA-2M6000Q (6mm) 5MP Lens modules: SLA-5M3700Q (3.7mm), SLA-5M4600Q (4.6mm), SLA-5M7000Q (7.0mm). WHITE COLOR
Product notes: Limited Stock; Recommended Replacement; PNM-C16083RVQ.
Available as Hanwha Vision part number PNM-9002VQ.
Technical specifications
Video
| Specification | Value |
|---|---|
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Specification | Value |
|---|---|
| Optional Lens | SLA-2M2400Q, SLA-2M2800Q, SLA-2M3600Q, SLA-2M6000Q, SLA-5M3700Q, SLA-5M4600Q, SLA-5M7000Q |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 150 |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | Polygonal zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual, WiseStreamâ…¡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PIM-SM |
| Application Programming Interface — ONVIF | S, T |
| Application Programming Interface — Others | SUNAPI(HTTP API) |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| Specification | Value |
|---|---|
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication | HTTPS |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 3GB |
| Memory — Flash | 768MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 256GB x 4slot(Total 1TB) |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | No |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption — PoE | Max. 25.5W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø253x130mm(9.96×5.12") |
| Product Weight | 3,000g(6.61lb) |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification | Value |
|---|---|
| Environment | IEC 60529 IP66, IEC 62262 IK10 |
Ver
| Specification | Value |
|---|---|
| Ver | 202410 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
