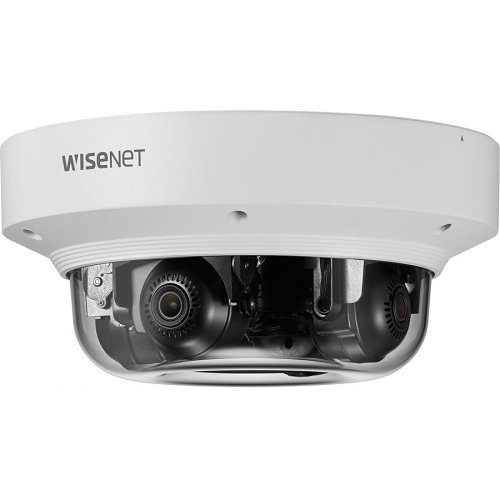

Hanwha PNM-9084QZ1 2MP X 4 Outdoor dome, PTRZ
,

Hanwha PNM-9084QZ1 2MP X 4 Outdoor dome, PTRZ

2MP X 4 Outdoor dome, PTRZ

$2,200.00 USD

Request a quote

Wisenet P series network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP X 4 sensors) 8MP @ 60fps, motorized vari-focal lens 2x (3.0~6.0mm) (107°~56.3°), PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus detection, built in analytics, true D/N, 4x SD card, hallway view, HLC, defog detection, Bi-Directional Audio, Alarm I/O 1/1, IP66, IK10, NEMA4X, -40°C ~ +55°C (-40°F ~ +131°F), White, DIS, HPoE Injector included

Available as Hanwha Vision part number PNM-9084QZ1.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 60fps/50fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.04
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.004

Lens

Specification Value
Focal Length (mm) 3~6
Zoom Ratio — Optical 2x
Max Aperture Ratio (F number) — Wide 2.2
Max Aperture Ratio (F number) — Tele 3.1
Angular Field of View — Horizontal 107°~56°
Angular Field of View — Vertical 57°~31°
Angular Field of View — Diagonal 126°~64°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type Fixed iris

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt 0°~73°
Pan / Tilt / Rotate Range — Rotate 0°~90°
Pan / Tilt / Rotate Range — Others Remote adjustment(Max. 200cycles)

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRâ…¤
Digital Image Stabilization Support
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape 4point Quadrangle zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror
Alarm Interface — In/Out Input 1ea, Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
Audio In Selectable(mic in/line in)
Audio Out Line out

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamâ…¡
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Application Programming Interface — ONVIF S, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Optional (needs gateway)

Security

Specification Value
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure Communication HTTPS
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)

General

Specification Value
Memory — RAM 5GB
Memory — Flash 1280MB
Edge Storage — Micro SD/SDHC/SDXC Max. 256GB x 4slot(Total 1TB)

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+55°C(-40°F~+131°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Operating Condition — Others Start up should be done at above -35°C
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE++(IEEE802.3bt type4, Class8)
Power Consumption — PoE Max. 33W, typical 20W

Mechanical

Specification Value
Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions ø251×116.5mm(9.88×4.59")
Product Weight 3,000g(6.61lb)
Compatible Conduit Hole 19.1mm(3/4")(M25)
Compatible Gang Box Single, Double, 4" Octagon, Square

Certifications & Standards

Specification Value
Environment IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 28.4m(11.18ft)
Detect (25PPM/ 8PPF) — Tele 71.8m(28.27ft)
Observe (63PPM/ 19PPF) — Wide 11.4m(4.49ft)
Observe (63PPM/ 19PPF) — Tele 28.7m(11.30ft)
Recognize (125PPM/ 38PPF) — Wide 5.7m(2.24ft)
Recognize (125PPM/ 38PPF) — Tele 14.4m(5.67ft)
Identify (250PPM/ 76PPF) — Wide 2.8m(1.10ft)
Identify (250PPM/ 76PPF) — Tele 7.8m(3.07ft)

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
