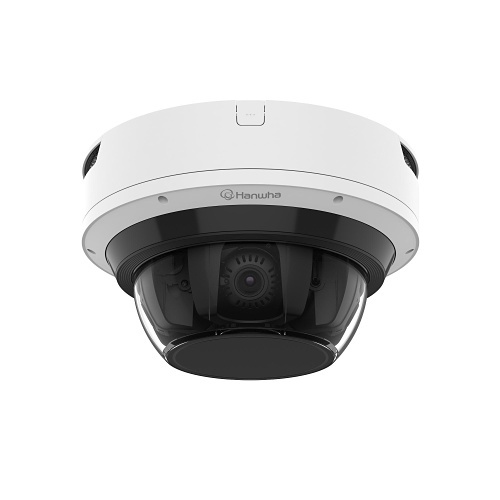

Hanwha PNM-C16083RQZ 4MP, AI, IR, and PTRZ Multi-directional
,

Hanwha PNM-C16083RQZ 4MP, AI, IR, and PTRZ Multi-directional

4MP, AI, IR, and PTRZ Multi-directional

$3,440.00 USD

Request a quote

Wisenet P series network vandal outdoor Multi-Directional camera [AI ON] 4CH x 4MP @ 30FPS, Motorized Varifocal Lens with PTRZ function 3.2~10.2mm (FoV H: 95°~29°, V: 69°~21°), triple codec H.265/H.264/MJPEG, 120dB WDR; IR viewable length [PoE++ 20m(65.6ft), PoE+ 15m(49ft)], Analytics events based on AI engine: Classified object type: Person/Face/Vehicle/License plate; Attributes: Vehicle(Type and color: car/bus/truck/motorcycle/bicycle), Person (upper and bottom clothing color), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear, WiseNR Ⅱ(using AI engine), WiseStreamⅢ(Based on AI engine), I/O Box compatibility; TPM with FIPS 140-2 level2, micro SD card 512GB x2, IP66, IK10, NEMA4X, Operating Temperature: -40°C~+55°C(-40°F~+131°F), PoE++/PoE+, Hard-coated dome bubble.

Available as Hanwha Vision part number PNM-C16083RQZ.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 2592×1520, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps(@4MP Max. 5fps)
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.1
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.01

Lens

Specification Value
Focal Length (mm) 3.2~10.2
Zoom Ratio — Optical 3.2x
Max Aperture Ratio (F number) — Wide 1.6
Max Aperture Ratio (F number) — Tele 3.1
Angular Field of View — Horizontal 93°~29°
Angular Field of View — Vertical 53°~17°
Angular Field of View — Diagonal 111°~34°
Min. Object Distance 1.2m(3.93ft)
Focus Control Simple focus
Lens Type P iris

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt 30°~90°
Pan / Tilt / Rotate Range — Rotate 0°~90°
Pan / Tilt / Rotate Range — Others Remote adjustment(Max. 200cycles)

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction WiseNRâ…¡(Based on AI engine), SSNRâ…¤
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 6ea
Privacy Masking — Shape 4point Quadrangle zones
Privacy Masking — Color / Option Gray, Black, White
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter — Speed Range 1/5~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°) – Each channel separately
Alarm Interface — In/Out 2 configurable I/O ports
Alarm Interface — Others Support extra alarm I/O via optional I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Case tampering
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
Audio In Support via optional I/O box
Audio Out Support via optional I/O box
Light Type IR LED
Light Viewable Length — IR WiseIR: PoE++ 20m(65.62ft) / PoE+ 15m(49.21ft)
IR Wavelength 850nm

Analytics

Specification Value
Classified Object Type Person, Face, Vehicle, License plate
Attributes — Person Upper/Lower clothes color
Attributes — Vehicle Type(car, bus, truck, motorcycle, bicycle), Color
Thumbnail BestShot
Analytics Events — Based on AI Engine Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec Manual, WiseStreamâ…¢
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR
Streaming — Unicast Up to 10 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 3 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface — ONVIF S, G, T, M
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

Specification Value
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security Certificate TPM 2.0 with FIPS 140-2 level2, Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)

General

Specification Value
SoC — Type CV5
Memory — RAM 8GB
Memory — Flash 8GB
Edge Storage — Micro SD/SDHC/SDXC Max. 512GB x 2slot(Total 1TB)
Edge Storage(OnCloud) — Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+55°C(-40°F~+131°F)
Operating Condition — Humidity 0~100% RH(condensing)
Operating Condition — Others Start up should be done at above -35°C, Humidity control with AIR vent
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
EPA(Effective Projected Area) 0.035㎡
Input Voltage PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6)
Power Consumption — PoE Max. 41W, typical 22W
Power Consumption — Others PoE+: Max. 25.5W, typical 22W

Mechanical

Specification Value
Color White
Material Aluminum, PC(Polycarbonate), Hard-coated dome
RAL Code RAL9003
Product Dimensions ø312.7×145.9mm(ø12.31×5.74")
Product Weight 4,400g(9.7lb)
Compatible Conduit Hole 19.1mm(3/4")(M25)
Compatible Gang Box Single, Double, 4" Octagon, Square

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 49.2m(161.40ft)
Detect (25PPM/ 8PPF) — Tele 200.5m(657.65ft)
Observe (63PPM/ 19PPF) — Wide 19.7m(64.56ft)
Observe (63PPM/ 19PPF) — Tele 80.2m(263.06ft)
Recognize (125PPM/ 38PPF) — Wide 9.8m(32.28ft)
Recognize (125PPM/ 38PPF) — Tele 40.1m(131.53ft)
Identify (250PPM/ 76PPF) — Wide 4.9m(16.14ft)
Identify (250PPM/ 76PPF) — Tele 20.0m(65.76ft)

Ver

Specification Value
Ver 202508

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
