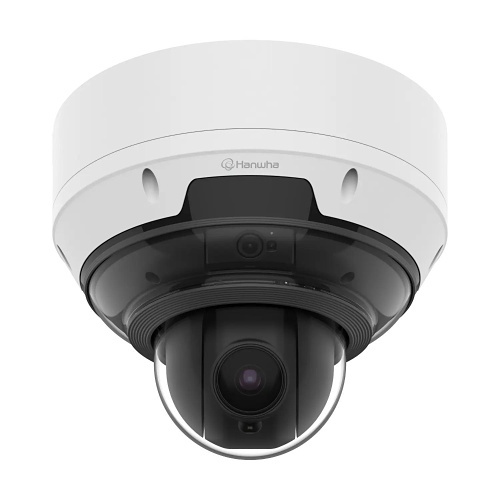

Hanwha PNM-C19183RVTP 3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ
,

Hanwha PNM-C19183RVTP 3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ

3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ

$4,150.00 USD

Request a quote

Wisenet P series network vandal outdoor Multi-Directional camera, 3CH x 5MP @ 30FPS and 4MP PTZ 18x Zoom, 3CH Fix Lens 2.4mm (FoV H: 123°, V: 91°), 120dB WDR; IR viewable length 15m(49ft), Analytics events based on AI engine: Classified object type: Person/Face/Vehicle/License plate; Attributes: Vehicle(type and color: car/bus/truck/motorcycle/bicycle), Person (upper and bottom clothing color), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Appear/Disappear; Business Intelligence Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap; WiseNR Ⅱ(using AI engine), WiseStreamⅢ (Based on AI engine), I/O Box compatibility; Secure element (FIPS 140-3 level3), micro SD card 512GB x2, IP66, IK10, NEMA4X, Operating Temperature: -40°C~+55°C(-40°F~+131°F), PoE++ (injector included), Hard-coated dome bubble.

Available as Hanwha Vision part number PNM-C19183RVTP.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 / 2592×1520, 2560×1440, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 30fps
Max. Framerate — MJPEG 30fps(@5MP Max. 5fps) / 30fps(@4MP Max. 5fps)
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.08 / 0.05
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.008 / 0.005
Video Out USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 2.4 / 5.42~98.29
Zoom Ratio — Optical 18x
Zoom Ratio — Digital 32x
Max Aperture Ratio (F number) — Wide 2.0
Max Aperture Ratio (F number) — Tele 3.27
Angular Field of View — Horizontal 123° / 53.1°~3.39°
Angular Field of View — Vertical 91° / 31.75°~1.98°
Angular Field of View — Diagonal 159° / 60.8°~3.92°
Min. Object Distance 0.5m(1.64ft) / 5.0m(16.4ft)
Focus Control Fixed / Oneshot AF, Focus save
Lens Type Fixed iris / Adaptive P iris

Pan / Tilt / Rotate

Specification Value
Pan Speed — Preset Max. 600°/sec
Pan Speed — Manual 0.024°/sec~250°/sec
Tilt Speed — Preset Max. 500°/sec
Tilt Speed — Manual 0.024°/sec~250°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°

Operational

Specification Value
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR / BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 12ea / 32ea
Privacy Masking — Shape 4point Quadrangle zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White / Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Low, Middle, High / Off, Max gain, Manual
White Balance ATW, AWC, Manual, Indoor, Outdoor / ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter — Speed Range 1/5~1/12,000sec
Video Rotation Flip, Mirror
Alarm Interface — Others Support alarm I/O via optional I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Smart zoom
Audio In Support via optional I/O box
Audio Out Support via optional I/O box
Light Type IR LED
Light Viewable Length — IR 15m(49.21ft), 10m(32.8ft) under 3m height installation
IR Wavelength 850nm
Auto Tracking Object auto tracking(Person/Vehicle), Target lock tracking

Analytics

Specification Value
Classified Object Type Person, Face, Vehicle, License plate
Attributes — Person Upper/Lower clothes color
Attributes — Vehicle Type(car, bus, truck, motorcycle, bicycle), Color / Type(car, bus, truck, motorcycle, bicycle)
Thumbnail BestShot / DetectionShot
Analytics Events — Based on AI Engine Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
Analytics Events — Normal Tampering, Audio detection, Virtual area(Appear/Disappear) / Tampering, Fog detection, Audio detection
Business Intelligence — Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual, WiseStream(Based on AI engine) / Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 5 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 4 profiles / Up to 3 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS)
Application Programming Interface — ONVIF S, G, T, M
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Support

Security

Specification Value
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt(AES-256), Secure element
Supply Chain Security SBOM
Security Certificate Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)

General

Specification Value
SoC — Type Wisenet 7 + NT98690
Memory — RAM 8GB / 4GB
Memory — Flash 8GB / 512MB
Edge Storage — Micro SD/SDHC/SDXC Max. 1TB x 2slot(Total 2TB)
Edge Storage(OnCloud) — Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+55°C(-40°F~+131°F)
Operating Condition — Humidity 0~100% RH(condensing)
Operating Condition — Others Start up should be done at above -35°C, Humidity control with AIR vent
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
EPA(Effective Projected Area) 0.038㎡
Input Voltage PoE++(IEEE802.3bt type3, Class6)
Power Consumption — PoE 42W

Mechanical

Specification Value
Color White
Material Aluminum, Hard-coated dome
Material Management — Declaration RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL Code RAL9003
Product Dimensions ø251.4x212mm(ø9.9×8.35")
Product Weight 4,800g(10.58lb)
Compatible Conduit Hole 19.1mm(3/4")(M25)
Compatible Gang Box Single, Double, 4" Octagon, Square

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 28.1m(92.35ft) / 103.7m(340.38ft)
Detect (25PPM/ 8PPF) — Tele 1751.8m(5474.46ft)
Observe (63PPM/ 19PPF) — Wide 11.3m(36.94ft) / 41.5m(136.15ft)
Observe (63PPM/ 19PPF) — Tele 700.7m(2298.99ft)
Recognize (125PPM/ 38PPF) — Wide 5.6m(18.47ft) / 20.7m(68.08ft)
Recognize (125PPM/ 38PPF) — Tele 350.4m(1149.49ft)
Identify (250PPM/ 76PPF) — Wide 2.8m(9.23ft) / 10.4m(34.04ft)
Identify (250PPM/ 76PPF) — Tele 175.2m(574.75ft)

Ver

Specification Value
Ver 202508

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
