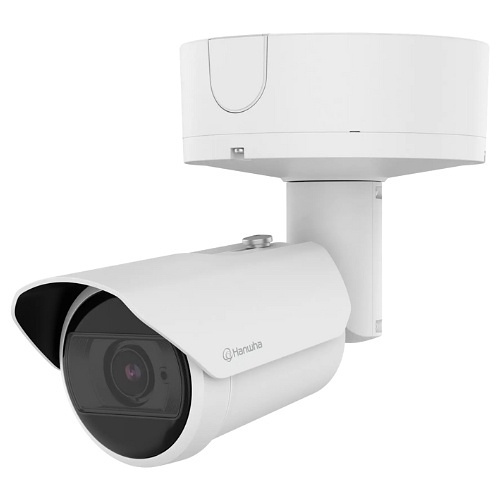

Hanwha PNO-A7082R 4MP IR Bullet AI camera
4MP IR Bullet AI camera
$2,000.00 USD
Powered by WN9, Network AI IR Outdoor Vandal Bullet Camera; 4MP Max Resolution 2592×1520 @ 60FPS; 0.03Lux@F1.3 (Color), 0Lux (B/W IR LED On); 4.6~9.35mm(2.0x); FoV H:105°~47°; Motorized Varifocal Lens; Hard-Coated Window; H.265/H.264/MJPEG Codec; IR Viewable Length 60m (196.85ft); USB Port for Easy Installation; AI-Based WiseStream; WiseNR Ⅱ (using AI engine); Day & Night (ICR); extremeWDR (120dB); DIS with Built-In Gyro Sensor; Handover; Dynamic Privacy Mask; AI Engine Based Analytics: Motion & Object Detection, Line Crossing, IVA Area, Slip & Fall, Sound Classification; Object Detection: Person/Face/Vehicle/License Plate; Object Attributes: Person (Gender, Top/Bottom Clothing Color, Bag), Face (Age, Gender, Mask, Glasses), Vehicle (Type, Color); BestShot; Analytics Events: Defocus, Motion, Tampering, Fog, Audio & Shock Detection; AI Based Business Intelligence: People/Vehicle/Crowd Counting, Queue Management, Heatmap; IP66/IP67, IK10, NEMA 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9); Operating Temp: -50°C~+55°C (-58°F~+131°F); Secure element with FIPS 140-3 level3; Built-In MicroSD Card Slot (1TBx2); Power: PoE+/12VDC; Metal shielded RJ-45. OnCloud Compatible.
Available as Hanwha Vision part number PNO-A7082R.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/1.8" |
| Imaging Device — Type | CMOS |
| Resolution | 2592×1520, 2560×1440, 1920×1080, 1600×1200, 1280×960, 1280×720, 1024×768, 800×600, 640×480, 640×360, 320×240, 320×180 |
| Max. Framerate — H.265/H.264 | 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on) |
| Max. Framerate — MJPEG | 30fps(@4MP Max. 5fps) |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.03 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.003 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 4.6~9.35 |
| Zoom Ratio — Optical | 2.0x |
| Max Aperture Ratio (F number) — Wide | 1.3 |
| Max Aperture Ratio (F number) — Tele | 2.15 |
| Angular Field of View — Horizontal | 105°~47° |
| Angular Field of View — Vertical | 58°~27° |
| Angular Field of View — Diagonal | 128°~55° |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Simple focus |
| Lens Type | P iris(IR corrected) |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 0°~360° |
| Pan / Tilt / Rotate Range — Tilt | 0°~90° |
| Pan / Tilt / Rotate Range — Rotate | 0°~180° |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 8point Polygonal zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Privacy Masking — Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter — Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface — In/Out | 2 configurable I/O ports |
| Alarm Interface — Others | 12VDC output, Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length — IR | WiseIR 60m(196.85ft) |
| IR Wavelength | 850nm |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes — Person | Upper/Lower clothes color, Gender, Bag |
| Attributes — Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes — Face | Age, Gender, Face mask, Glasses |
| Similarity Search | Support |
| Thumbnail | BestShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events — Normal | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence — Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| Specification | Value |
|---|---|
| SoC — Type | Wisenet 9 |
| SoC — Dual NPU | Support |
| Memory — RAM | 4GB |
| Memory — Flash | 8GB eMMC |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
| Edge Storage(OnCloud) — Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -50°C~+55°C(-58°F~+131°F) |
| Operating Condition — Humidity | 0~100% RH(condensing) |
| Operating Condition — Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.026㎡ |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption — PoE | Max. 15.0W, typical 9.0W |
| Power Consumption — 12VDC | Max. 12.7W, typical 7.8W |
| WisePower | Power monitoring |
| Power Redundance Failover | Support |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum, Hard-coated window |
| RAL Code | RAL9003 |
| Product Dimensions | ø93.4×298.4mm(ø3.68×11.75") |
| Product Weight | 2,060g(4.54lb) |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 39.8m(130.51ft) |
| Detect (25PPM/ 8PPF) — Tele | 119.2m(391.15ft) |
| Observe (63PPM/ 19PPF) — Wide | 15.9m(52.20ft) |
| Observe (63PPM/ 19PPF) — Tele | 47.7m(156.46ft) |
| Recognize (125PPM/ 38PPF) — Wide | 8.0m(26.10ft) |
| Recognize (125PPM/ 38PPF) — Tele | 23.8m(78.23ft) |
| Identify (250PPM/ 76PPF) — Wide | 4.0m(13.05ft) |
| Identify (250PPM/ 76PPF) — Tele | 11.9m(39.12ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202604 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
