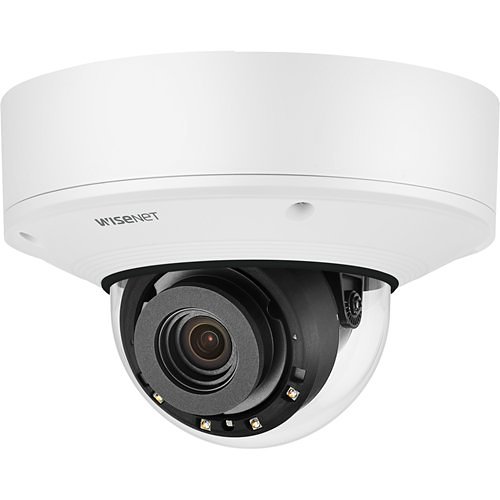

Hanwha PNV-A6081R 2MP IR Outdoor Vandal Dome AI Camera
,

Hanwha PNV-A6081R 2MP IR Outdoor Vandal Dome AI Camera

2MP IR Outdoor Vandal Dome AI Camera

$1,800.00 USD

Request a quote

2MP Network AI IR Vandal Dome Camera, Max. 2MP resolution, Up to 120fps, 0.007Lux@F1.3 (Color), 0Lux (B/W, IR LED on), IR Viewable Length 40m(131.23ft), Wise IR, Day & Night (ICR), WDR (120dB), WiseNRâ…¡ (Using AI engine), H.265, H.264, MJPEG, WiseStreamâ…¡, WiseStreamâ…¢ (Using AI engine), Video Analytics based on AI [ Object detection and classification (Person, Face, Vehicle, License Plate), Face mask detection, Social distancing detection, Attribute, BestShot] People counting, Heatmap, Queue management based on AI, TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery, Hard-coated dome bubble/IP66, IP67, IP6K9K, IK10+, NEMA4X, Modular structure for easy Install, PoE+. OnCloud Compatible.

Available as Hanwha Vision part number PNV-A6081R.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2"
Imaging Device — Type CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate — H.265/H.264 120fps/100fps(60Hz/50Hz)
Max. Framerate — MJPEG 15fps
Max. Framerate — Others Max. 60/50fps(60Hz/50Hz) when AI on
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.007
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.0007
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 4.38~9.33
Zoom Ratio — Optical 2.13x
Max Aperture Ratio (F number) — Wide 1.3
Max Aperture Ratio (F number) — Tele 2.15
Angular Field of View — Horizontal 103.1°~44.5°
Angular Field of View — Vertical 54.2°~24.9°
Angular Field of View — Diagonal 124°~51.1°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type P iris(IR corrected)

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~360°
Pan / Tilt / Rotate Range — Tilt -45°~85°
Pan / Tilt / Rotate Range — Rotate 0°~355°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction WiseNRâ…¡(Based on AI engine), SSNRâ…¤
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 6ea
Privacy Masking — Shape Rectangular zones
Privacy Masking — Color / Option Gray, Black, White
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter — Speed Range 1/5~1/12,000sec
Digital PTZ Support
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out 2 configurable I/O ports
Alarm Interface — Others 12VDC output
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED
Light Viewable Length — IR 40m(131.23ft)
IR Wavelength 850nm

Analytics

Specification Value
Classified Object Type Person, Face, Vehicle, License plate
Attributes — Person Upper/Lower clothes color, Gender, Bag
Attributes — Vehicle Type(car, bus, truck, motorcycle, bicycle), Color
Attributes — Face Age, Gender, Face mask, Glasses
Thumbnail BestShot
Analytics Events — Based on AI Engine Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip & fall detection
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), WiseDetector for adding custom objects
Business Intelligence — Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting, Crowd counting

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamâ…¢
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 6 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 6 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface — ONVIF S, G, T, M
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

Specification Value
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security Certificate TPM 2.0 with FIPS 140-2 level2, IACS Component Security Requirements Certification (IEC 62443-4-2)

General

Specification Value
Memory — RAM 4GB
Memory — Flash 512MB
Edge Storage — Micro SD/SDHC/SDXC Max. 512GB x 2slot(Total 1TB)

Environmental & Electrical

Specification Value
Operating Condition — Temperature -50°C~+55°C(-58°F~+131°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Operating Condition — Others Start up should be done at above -30°C
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption — PoE Max 19.5W, typical 16.0W
Power Consumption — 12VDC Max 17.00W, typical 13.50W

Mechanical

Specification Value
Color White
Material Aluminum, Hard-coated dome
RAL Code RAL9003
Product Dimensions ø180x125mm(7.09×4.92")
Product Weight 1900g(4.19lb)
Compatible Conduit Hole 19.1mm(3/4")(M25)
Compatible Gang Box Single, Double, 4" Octagon, Square

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 30.0m(98.43ft)
Detect (25PPM/ 8PPF) — Tele 95.0m(311.82ft)
Observe (63PPM/ 19PPF) — Wide 12.0m(39.37ft)
Observe (63PPM/ 19PPF) — Tele 38.0m(124.73ft)
Recognize (125PPM/ 38PPF) — Wide 6.0m(19.69ft)
Recognize (125PPM/ 38PPF) — Tele 19.0m(62.36ft)
Identify (250PPM/ 76PPF) — Wide 3.0m(9.84ft)
Identify (250PPM/ 76PPF) — Tele 9.5m(31.18ft)

Ver

Specification Value
Ver 202408

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: PNV-A6081R Categories: , Brand:
