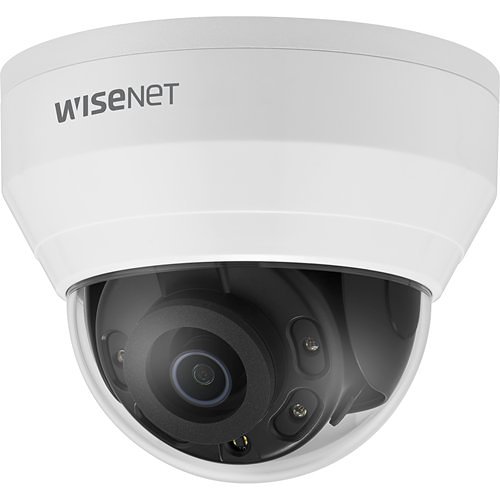

Hanwha QND-8010R 5MP Indoor IR Dome
,

Hanwha QND-8010R 5MP Indoor IR Dome

5MP Indoor IR Dome

$420.00 USD

Request a quote

Wisenet Q network indoor dome camera, 5MP @ 30fps, 2.8mm fixed focal lens (104°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 65′, defocus detection, hallway View, built-in SD card slot (1x128GB), video analytics, CVBS, open platform, PoE, white color

Available as Hanwha Vision part number QND-8010R.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 15fps(@5MP Max. 2fps)
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.15
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.015
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation

Lens

Specification Value
Focal Length (mm) 2.8
Max Aperture Ratio (F number) — Wide 2.0
Angular Field of View — Horizontal 105°
Angular Field of View — Vertical 77°
Angular Field of View — Diagonal 136°
Focus Control Fixed

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0°~350°
Pan / Tilt / Rotate Range — Tilt 0°~67°
Pan / Tilt / Rotate Range — Rotate 0°~355°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅤ
Motion Detection — Quantity 4ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 6ea
Privacy Masking — Shape Rectangular zones
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 1/5~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out Input 1ea, Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
Light Type IR LED
Light Viewable Length — IR 20m(65.62ft)
IR Wavelength 850nm

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)

Network

Specification Value
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 6 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 3 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Optional (needs gateway)

Security

Specification Value
OS / Firmware Protect Encrypted firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt(AES-256)

General

Specification Value
Memory — RAM 512MB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 128GB x 1slot

Environmental & Electrical

Specification Value
Operating Condition — Temperature -10°C~+55°C(+14°F~+131°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Storage Condition — Temperature -30°C~+60°C(-22°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption — PoE Max. 7.50W, typical 5.80W

Mechanical

Specification Value
Color White
Material Aluminum, Plastic
RAL Code RAL9003
Product Dimensions ø110.6×89.5mm(ø4.35×3.52")
Product Weight 360g(0.79 lb)

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 40.0m(131.20ft)
Observe (63PPM/ 19PPF) — Wide 16.0m(52.48ft)
Recognize (125PPM/ 38PPF) — Wide 8.0m(26.24ft)
Identify (250PPM/ 76PPF) — Wide 4.0m(13.12ft)

Ver

Specification Value
Ver 202407

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
