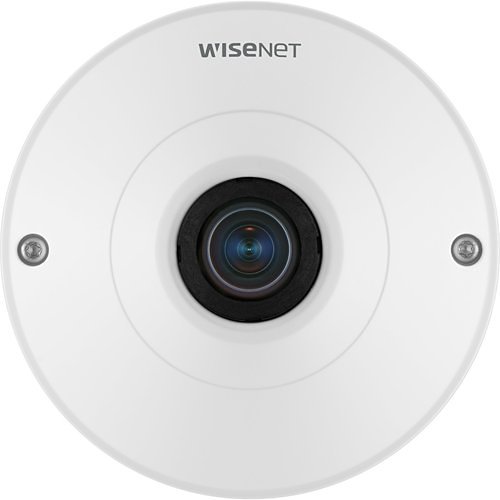

Hanwha QNF-9010 12MP Indoor fisheye
12MP Indoor fisheye
$1,050.00 USD
Wisenet Q series network Indoor fisheye dome camera, 12MP CMOS sensor, max resolution 3008×3008 @ 30fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, WDR 120dB, business analytics (heatmap and people counting), built-in SD card slot (1x256GB), PoE
Available as Hanwha Vision part number QNF-9010.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.3" |
| Imaging Device — Type | CMOS |
| Resolution | 3200×800, 3008×3008, 2560×1920, 2560×1280, 2560×640, 1920×1440, 1920×960, 1920×480, 1280×960, 1280×640, 1280×320, 1024×768, 1024×512, 1024×256, 640×640, 640×480, 640×320 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 5fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.39 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 1.08 |
| Max Aperture Ratio (F number) — Wide | 2.2 |
| Angular Field of View — Horizontal | 187° |
| Angular Field of View — Vertical | 187° |
| Angular Field of View — Diagonal | 187° |
| Min. Object Distance | 0.5m(1.64ft) |
Operational
| Specification | Value |
|---|---|
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNRâ…¤ |
| Motion Detection — Quantity | 4ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 6ea |
| Privacy Masking — Shape | Rectangular zones |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range | 2~1/12,000sec |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers |
Analytics
| Specification | Value |
|---|---|
| Analytics Events — Normal | Defocus detection, Motion detection, Tampering |
| Business Intelligence — Normal | People counting, Heatmap |
Network
| Specification | Value |
|---|---|
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual, WiseStreamâ…¡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 6 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 3 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface — ONVIF | S, G, T |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication | HTTPS |
| Access Control | IP-based access control |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Specification | Value |
|---|---|
| Memory — RAM | 2GB |
| Memory — Flash | 256MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -10°C~+40°C(+14°F~+104°F) |
| Operating Condition — Humidity | 0~90% RH(non-condensing) |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption — PoE | Max. 7.7W, typical 6.4W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Plastic |
| RAL Code | RAL9003 |
| Product Dimensions | Ø99x49mm(Ø3.89×1.93") |
| Product Weight | 370g(0.82lb) |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP42 |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) — Wide | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) — Wide | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) — Wide | 3.5m(11.48ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202410 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
