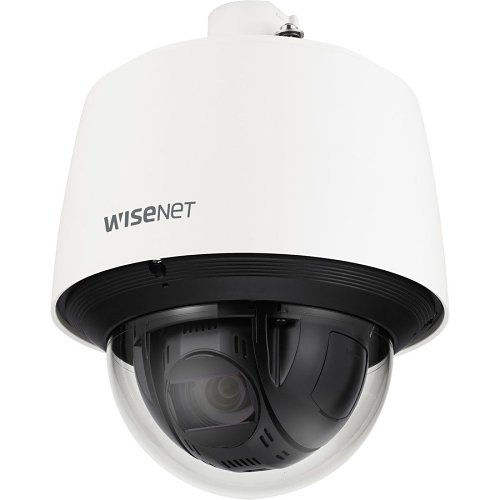

Hanwha QNP-6320H 2MP 32x PTZ
,

Hanwha QNP-6320H 2MP 32x PTZ

2MP 32x PTZ

$2,750.00 USD

Request a quote

Wisenet Q network outdoor PTZ camera, 2MP, Full HD(1080p) 60fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, 4.44~142.6mm (32x) lens, 120dB WDR, Day & Night (ICR), DIS (Built-in gyro sensor), Intelligent Analytics, built-in SD card slot (1x256GB), Focus Save, IP66, IK10, NEMA4X, white color

Product notes: 3 Weeks Lead Time.

Available as Hanwha Vision part number QNP-6320H.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate — H.265/H.264 60fps/50fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.05
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.005

Lens

Specification Value
Focal Length (mm) 4.44~142.6
Zoom Ratio — Optical 32x
Zoom Ratio — Digital 32x
Max Aperture Ratio (F number) — Wide 1.6
Max Aperture Ratio (F number) — Tele 4.4
Angular Field of View — Horizontal 64.66°~2.29°
Angular Field of View — Vertical 38.08°~1.30°
Min. Object Distance 1.5m(4.92ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 360° Endless
Pan / Tilt / Rotate Range — Tilt 90°~-15°
Pan Speed — Preset Max. 700°/sec
Pan Speed — Manual 0.024°/sec~200°/sec
Tilt Speed — Preset Max. 300°/sec
Tilt Speed — Manual 0.024°/sec~200°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°

Operational

Specification Value
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape 4point Quadrangle zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Off, Max gain, Manual
White Balance ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip&Mirror
Alarm Interface — Others Support alarm I/O via optional I/O box
Alarm Triggers Analytics, Network disconnect
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Auto Tracking Support

Analytics

Specification Value
Analytics Events — Normal Motion detection, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)

Network

Specification Value
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Optional (needs gateway)

Security

Specification Value
OS / Firmware Protect Encrypted firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)

General

Specification Value
Memory — RAM 1GB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 256GB x 1slot

Environmental & Electrical

Specification Value
Operating Condition — Temperature -35°C~+55°C(-31°F~+131°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Operating Condition — Others Start up should be done at above -30°C
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~95% RH(non-condensing)
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption — PoE Max. 23W, Typical 14W

Mechanical

Specification Value
Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions ø204.3x265mm(ø8.04×10.43”)
Product Weight 2700g(5.95lb)

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, IC Regulation ICES-003 Issue 7 Class A
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 60.7m(199.1ft)
Detect (25PPM/ 8PPF) — Tele 1921.3m(6303.4ft)
Observe (63PPM/ 19PPF) — Wide 24.3m(79.6ft)
Observe (63PPM/ 19PPF) — Tele 768.5m(2521.4ft)
Recognize (125PPM/ 38PPF) — Wide 12.1m(39.8ft)
Recognize (125PPM/ 38PPF) — Tele 384.3m(1260.7ft)
Identify (250PPM/ 76PPF) — Wide 6.1m(19.9ft)
Identify (250PPM/ 76PPF) — Tele 192.1m(630.3ft)

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
