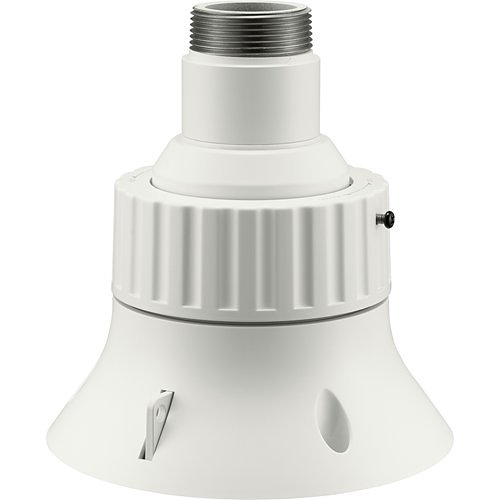

RJ-45 to Fiber mounting accessory for PTZ XNP-6320H/6321H, XNP-6550RH and QNP-6230H
Product notes: 4 Weeks Lead Time.
Available as Hanwha Vision part number SBP-303HF.
Technical specifications
Environmental
| Specification | Value |
|---|---|
| Operating Temperature / Humidity | -50°C to +55°C / Less than 90% RH |
| Certification | IP66, IK10 |
Electrical
| Specification | Value |
|---|---|
| Input Voltage | 24V AC |
| Power Consumption | 4.1A, 92W Max (Heater ON) |
Mechanical
| Specification | Value |
|---|---|
| Material | Aluminum |
| Product dimensions / weight | Ø163.9 x H157.9mm / 1.1kg Ø163.9 x H187.9mm (with NPT-Coupling) / 1.4kg (with NPT-Coupling) |
| Supported products | XNP-6550RH/6371RH/6320H/ QNP-6230H/6230RH |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
