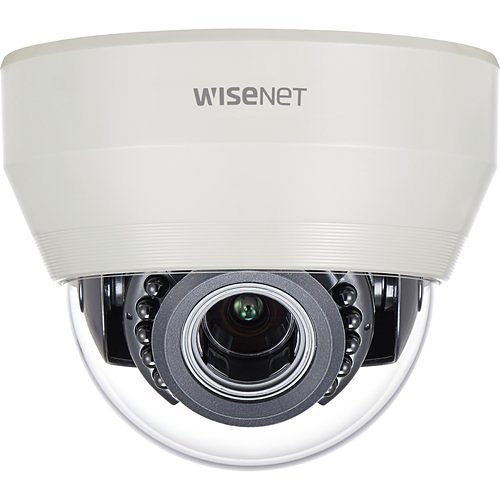

Hanwha SCD-6085R AHD IR Dome
,

Hanwha SCD-6085R AHD IR Dome

AHD IR Dome

$241.00 USD

Request a quote

Wisenet HD+ 2MP, Full HD(1080p) 30fps IR dome camera, 1/2.8″ 2M CMOS, vari-focal Lens (3.1X) (3.2-10mm), 60dB DWDR, Coaxial Control, true D/N, 24VAC/12VDC, IR distance 65.62 feet

Available as Hanwha Vision part number SCD-6085R.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 1920×1080
Max. Framerate(NTSC/PAL) 30fps/25fps
Min. Illumination — Color(1/30sec, 30IRE) 0.11
Min. Illumination — BW(1/30sec, 30IRE) 0.011
Video Out BNC: AHD
Video Transmission Distance 500m(5C2V Coaxial Cable)

Lens

Specification Value
Focal Length (mm) 3.2~10
Optical Zoom Ratio 3.1x
Max Aperture Ratio (F number) — Wide 1.6
Angular Field of View — Horizontal 110.2°~32°
Angular Field of View — Vertical 55.4°~18°
Angular Field of View — Diagonal 128.4°~36.6°
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC auto iris(IR corrected)

Pan / Tilt / Rotate

Specification Value
Pan / Tilt / Rotate Range — Pan 0° ~ 350°
Pan / Tilt / Rotate Range — Tilt 0° ~ 67°
Pan / Tilt / Rotate Range — Rotate 0° ~ 355°

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, DWDR
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection — Quantity 4ea
Privacy Masking — Quantity 8ea
Privacy Masking — Shape Rectangular zones
Gain Control Low, Middle, High, Very High
White Balance None, AWC, Manual, Indoor, Outdoor
Electronic Shutter — Speed Range 1~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out Output 1ea
Alarm Triggers Analytics
Alarm Events When Alarm Trigger Occurred Alarm output
IR Viewable Length 20m (65.62ft)
Coaxial Protocol ACP, CVBS

Analytics

Specification Value
Analytics Events — Normal Motion detection

Environmental & Electrical

Specification Value
Operating Condition — Temperature -10°C~+55°C(+14°F~+131°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Input Voltage 24VAC, 12VDC
Power Consumption — 12VDC 0.45A
Power Consumption — 24VAC 0.46A

Mechanical

Specification Value
Color Ivory
Material PC(Polycarbonate)
Product Dimensions Ø119.8 x 98.5mm (Ø4.72" x 3.88")
Product Weight 320g(0.70lb)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
