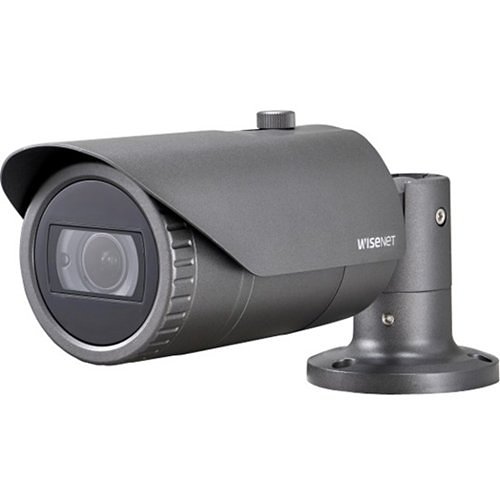

Wisenet HD+ 2MP, Full HD(1080p) 30fps IR bullet camera, 1/2.8″ 2M CMOS, vari-focal Lens (3.1X) (3.2-10mm), 60dB DWDR, Coaxial Control, true D/N, 24VAC/12VDC, IR distance 98.43 feet, IP66 IK10

Available as Hanwha Vision part number SCO-6085R.

Technical specifications

Video

Specification	Value
Imaging Device — Size	1/2.8"
Imaging Device — Type	CMOS
Min. Illumination — Color(1/30sec, 30IRE)	0.11
Min. Illumination — BW(1/30sec, 30IRE)	0.011
Video Out	BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance	500m(5C2V Coaxial Cable)

Lens

Specification	Value
Focal Length (mm)	3.2~10
Optical Zoom Ratio	3.1x
Max Aperture Ratio (F number) — Wide	1.6
Angular Field of View — Horizontal	110.2°~32.0°
Angular Field of View — Vertical	55.4°~18.0°
Angular Field of View — Diagonal	128.4°~36.6°
Min. Object Distance	0.5m(1.64ft)
Focus Control	Manual
Lens Type	DC auto iris(IR corrected)

Operational

Specification	Value
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, DWDR
Digital Noise Reduction	SSNRⅣ
Defog	Support
Motion Detection — Quantity	4ea
Privacy Masking — Quantity	8ea
Gain Control	Low, Middle, High, Very High
White Balance	ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter — Speed Range	1~1/12,000sec
Video Rotation	Flip, Mirror
Alarm Interface — In/Out	Output 1ea
Alarm Triggers	Analytics
Alarm Events When Alarm Trigger Occurred	Alarm output
Coaxial Protocol	ACP, CVBS

Analytics

Specification	Value
Analytics Events — Normal	Motion detection

Environmental & Electrical

Specification	Value
Operating Condition — Temperature	-30°C~+55°C(-22°F~+131°F)
Operating Condition — Humidity	0~90% RH(non-condensing)
Input Voltage	24VAC, 12VDC
Power Consumption — 12VDC	Max 5.4W, typical 3.4W
Power Consumption — 24VAC	Max 5.4W, typical 3.4W

Mechanical

Specification	Value
Color	Dark grey
Material	Aluminum
Product Dimensions	Ø78×259.8mm(3.07×10.23")
Product Weight	887g(1.95 lb)

Certifications & Standards

Specification	Value
Environment	IEC 60529 IP66, IEC 62262 IK10

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

SKU: SCO-6085R Categories: Analog HD Cameras, Video Cameras Brand: Hanwha

Hanwha SCO-6085R AHD IR Bullet
