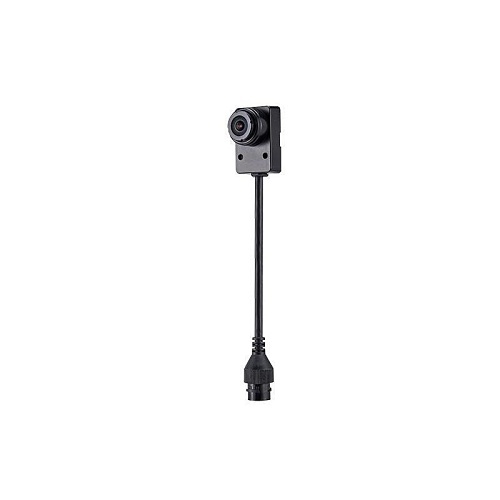

Hanwha SLA-T2480VA 2.4mm Lens/Imager right angle body for (8.0m cable)
2.4mm Lens/Imager right angle body for (8.0m cable)
$225.00 USD
2.4mm fixed lens module, compatible with PNM-9000QB and XNB-6002, right angle body style, 2MP @ 30fps, 0.45 Lux, 138º horizontal field of view, 8 meters/ 26 feet cable
Product notes: Compatible with XNB-6002, PNM-9000QB, and PNM-C20000QB.
Available as Hanwha Vision part number SLA-T2480VA.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.045 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.045 |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 2.4 |
| Max. Aperture Ratio (F number) — Wide | 2.0 |
| Angular Field of View — Horizontal | 138° |
| Angular Field of View — Vertical | 73° |
| Angular Field of View — Diagonal | 165° |
| Mount Type | RJ12 connected with main unit |
| Focus Control | Fixed |
Mechanical
| Specification | Value |
|---|---|
| Color | Black |
| Material | Plastic, Metal |
| Product Dimensions | W30xH27.9xD45mm |
| Product Weight | 328g |
| Supported Products | XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
