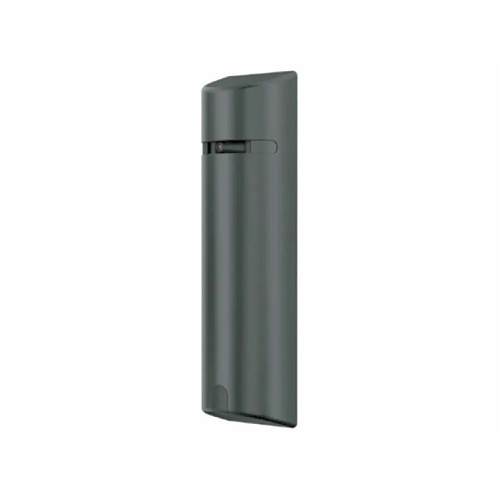

Door Jamb head with a 4.6mm lens, compatible with PNM-9000QB, and XNB-6002 (not included), cable length 8m (26 feet), black color
Product notes: Compatible with XNB-6002, PNM-9000QB, and PNM-C20000QB.
Available as Hanwha Vision part number SLA-T4680DA.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/2.8" |
| Imaging Device — Type | CMOS |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.06 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.06 |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 4.6 |
| Max. Aperture Ratio (F number) — Wide | 2.5 |
| Max. Aperture Ratio (F number) — Tele | 2.5 |
| Angular Field of View — Horizontal | 73° |
| Angular Field of View — Vertical | 39° |
| Angular Field of View — Diagonal | 85° |
| Min. Object Distance | 0.3m(0.98ft) |
| Mount Type | RJ12 connected with main unit |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | Flexible panning ±30° |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Operating Condition — Humidity | Less than 90% RH |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | Less than 90% RH |
Mechanical
| Specification | Value |
|---|---|
| Color | Black |
| Material | Plastic |
| Product Dimensions | Housing: 42.9(W)x33.0(H)x170.0(D)mm(1.69"x1.30"x6.69"), Lens: 30(W)x27.9(H)x45(D)mm(1.18"x1.10"x1.77"), Cable: 8m(26.2ft) |
| Product Weight | Housing: 70g(0.15lb), Lens: 41g(0.09lb) |
| Supported Products | XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
