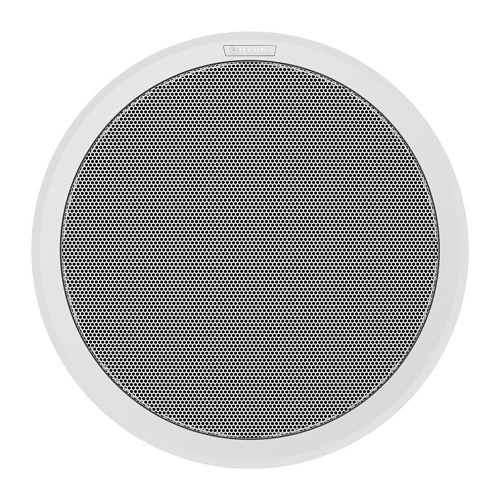

IP Audio Speaker, Two-way audio, Scheduler, Background Music, Text To Speech, 10W, 100dB Output, Freq. Range 120Hz-20kHz, 1GB Internal Storage, Single Micro SD slot (Up to 32GB), Built in Relay, SUNAPI, Onvif, SIP, P2P-SIP, PoE, PoE+, White Color
Available as Hanwha Vision part number SPA-C110W.
Technical specifications
Product
| Specification |
Value |
| IP Audio Type |
IP Ceiling Speaker |
Line Ouput
| Specification |
Value |
| Output Level |
+6 dBV ±3 dB |
| Frequency Response |
20Hz~20kHz |
| THD + N Ration (AES17LPF) |
Less than 0.1% |
| S/N Ration (20kHz LPF, A-WTD) |
Greater than 91 dB |
Amplifier
| Specification |
Value |
| Description |
Built in 10W Class D |
Network
| Specification |
Value |
| Ethernet |
10/100 Base-T |
Memory
| Specification |
Value |
| Internal Memory |
1 GBytes |
| External Memory (Micro SD) |
SDHC upto 32GB (SANDISK) |
Contact
| Specification |
Value |
| Contact Input. Dry contact |
One Channel |
| Contact Output. Dry contact (NO) |
One channel |
General
| Specification |
Value |
| Operating Temperature |
-20°~+50°C(-4°F~+122°F) |
| Operating Humidity |
10~85%RH(Non-Condensing) |
| IP Code |
N/A |
| Weight |
2.7Kg (5.95lb) |
| Size |
ø269*156.5(H)mm |
| Color |
White |
| Certificate |
EMC : FCC Part 15 Subpart B, ICES-003, Safety : UL 2043, UL 62368-1, CAN/CSA 62368-1 |
Speaker
| Specification |
Value |
| Speaker Component |
2 Way 8" LF Drive & 2" HF Driver. Passive type |
| Max. Sound Pressure Level (PoE) |
96 dB |
| Max. Sound Pressure Level (PoE+) |
100 dB |
| Frequency Range (-10 dB) |
120 Hz~20 kHz |
| Sensitivity (1 Watt) |
90 dB |
| Coverage Pattern |
(HxV) : 90° (1 kHz) / 60° (4 kHz) |
Network Protocol
| Specification |
Value |
| Supported Protocols |
IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Specification |
Value |
| Application Programming Interface |
SUNAPI(HTTP API), ONVIF Profile S |
| Multi-source Dynamic PA control |
Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH)
(Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups |
| VoIP |
Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 |
| TTS |
English (US, UK), German, French, Spanish, Russian |
| Audio Monitoring |
Speaker test by graphic level meter (Built in test tool) |
| Event & Preset |
Virtual Contact, Dry contact |
| Functional Monitoring |
Connection verification, Built-in system logging |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
