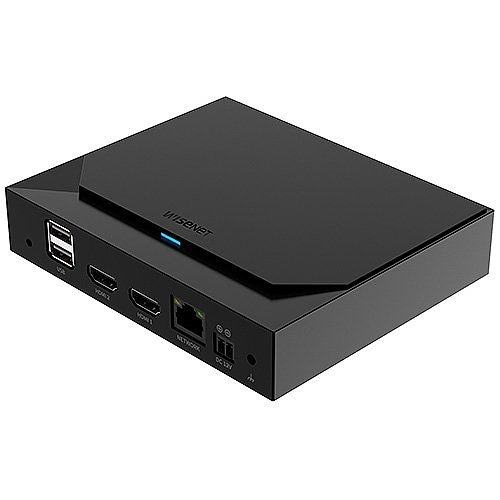

Hanwha SPD-152 64CH Network Video Decoder

Hanwha SPD-152 64CH Network Video Decoder

64CH Network Video Decoder

$850.00 USD

Request a quote

Video decoding up to 64 cameras, Dual HDMI output (HDMI#1 UHD, HDMI#2 FHD), Supported resolution: 4K@60FPS ~ 2M@360FPS, ONVIF, SUNAPI, RTSP, H.265 / H.264 / MJPEG codec, up to 20 Layout, Sequence Support, 12V DC, PoE

Available as Hanwha Vision part number SPD-152.

Technical specifications

System

Specification Value
CPU Embded CPU
Operating System Embedded Linux
Video Output — HDMI#1 1EA (up-to 4K), Audio support
Video Output — HDMI#2 1EA (up-to 1080p), Audio not support
Video Output — Video-out Format 3840 X 2160@30Hz (HDMI#1)
2560 X 1440@30Hz (HDMI#1)
1920 X 1080@60Hz (HDMI#1, HDMI#2)
1280 X 1024@60Hz (HDMI#1, HDMI#2)
1280 X 720@60Hz (HDMI#1, HDMI#2)
External — Ethernet 1EA (10/100/1000BASE-T)
External — USB 2EA(USB 2.0)
External — LED Power, Network
Network — Bandwidth Max. 150Mbps

Environmental

Specification Value
Operating Temperature 0°C to +40°C (32℉ to 104℉)
Operating Humidity 20% ~ 85% RH

Electrical

Specification Value
Power Input 12VDC, PoE (IEEE802.3af)
Power Consumption Max. 11.0W (12V DC), Max. 12.95W (PoE)

Mechanical

Specification Value
Color / Material Black / Metal & Plastic
Dimension(WxHxD) 140.0 x 29.5 x 115.4mm(5.51 x 1.16 x 4.54")
Weight 260g (0.58 lb)

Software

Specification Value
Video — Codec H.265/H.264/MJPEG
Video — Max. Decoding Performance 8M@60fps, 12ch*2MP@30fps
Video — Division/Monitor Clone mode :
(HDMI#1) Max. 64,
Expand mode :
(HDMI#1) Max. 36,
(HDMI#2) Max. 25
Video — Layout Up to 20, Sequence support
Audio — Codec G.711 / G.726 / AAC
Management Local UI, Web-Viewer, SSM
Time Setting NTP/Manual
Export/Import Configuration Export/Import
Log Max. 100,000 (System log)
Protocol RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF
Security IP address filtering,
User access Log, 802.1x,
Encryption,
Device certificate(Hanwha Techwin Root CA),
Signed firmware

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
