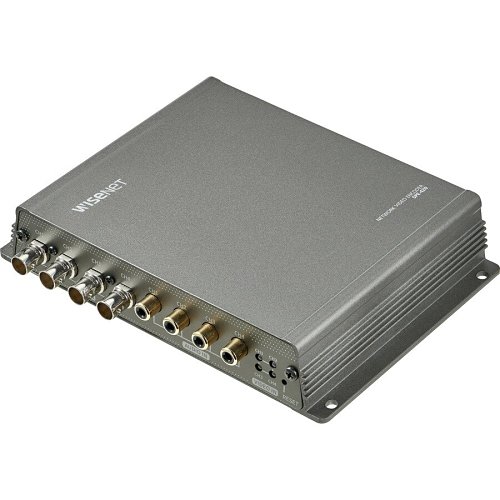

Hanwha SPE-420 4 Channel Encoder

Hanwha SPE-420 4 Channel Encoder

4 Channel Encoder

$535.00 USD

Request a quote

Encoder, 4CH H.265/H.264/MJPEG, 5MP : 12fps/CH, 4MP : 15fps/CH, 1080p : 30fps/CH, 720p/WD1/4CIF/CIF: 30fps, AHD/CVI/TVI/CVBS compatible, RS-485/422 Interface, Pelco C when using CVBS or ACP up-coax protocol @ AHD,  ONVIF protocol support, HDMI output, I/O 4/2, Audio in/out 4/1, DC12V, PoE(IEEE 802.3af)

Available as Hanwha Vision part number SPE-420.

Technical specifications

Video

Specification Value
Input Channel 4CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL
Input Signal & Resolution CVBS, AHD/CVI/TVI (1, 2, 4, 5MP) Auto Detection
Video Out 1 HDMI OUT (4 multi Image, 1920×1080)

Operational

Specification Value
Motion Detection Off / On
Privacy Masking Off / On (4ea rectangular zones)
De-Interlacing Support
Alarm I/O 4 Input / 2 Output(1 NO/COM/NC, 1 NO/COM)
Alarm Trigger Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect
Alarm Events File Upload Via FTP, E-mail
Audio I/O 4 Line Input / 1 Line Output
OSD Title, Date(Y/M/D), Time(H/M)
Remote Control Interface 1ea RS-485(Half Duplex)
RS-485 Protocol SAMSUNG-T, PELCO-P/D
Coaxial Control CVBS(Pelco-C) AHD, TVI, CVI

Network

Specification Value
Ethernet 1 RJ-45 10/100 Base-T
Video Compression Format H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 2560×1920, 2560×1440, 1920×1080, 1280×720, 928×480(N), 928×240(N), 704×480(N), 704×240(N), 640×368, 352×240(N) 928×576(P), 928*288(P), 704×576(P), 704×288(P), 640×368, 352×288(P)
Max. Framerate – Main Stream
5MP : 12fps/CH, 4MP : 15fps/CH,
1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P)
– Sub Stream
WD1/4CIF : 30fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P), – MJPEG : 1fps @ 640×368, 352×240,
SD Camera : 2fps @ 480×240, 352×240
* Enabling Time Display function in the OSD menu may cause up to 50 percent frame drop of the original setting.
Bitrate Control Method H.265, H.264 : CBR or VBR
Streaming Capability Multiple Streaming (Up to 2 Profiles per channel)
Audio Compression G.711 u-law
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour
Security HTTPS (SSL) Login Authentication,
Digest Login Authentication
IP Address Filtering,
User Access Log,
802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access max. 16 users(4 Users/CH) at Unicast Mode
Webpage Language English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek
Web Viewer Supported OS: Windows 10 or later, Windows 7, 8, 10, Mac OS X 10.13 or later, Non-plugin WebViewer Supported Browser:
Google Chrome 80 or later, MS Edge 83 or later, Mozilla Firefox 72 or later,
Apple Safari 11.0.1 or later
Application Programming Interface ONVIF profile S, SUNAPI (HTTP API)
Compatabile Software & Recorder SmartViewer, SSM, NVR(Hanwha Techwin, P/X/Q/L series)

Environmental

Specification Value
Operating Temperature / Humidity 0°C ~ +50°C / 20% ~ 80% RH

Electrical

Specification Value
Input Voltage / Current DC12V, PoE(IEEE 802.3af)
Power Consumption MAX : 5W (12V, 0.417A)

Mechanical

Specification Value
Color/Metal Dark Gray / Metal
Dimension(WxHxD) 178.0 × 34.0 × 127.8(include Connector 148.7)mm
Weight 520g(1.15lb)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
