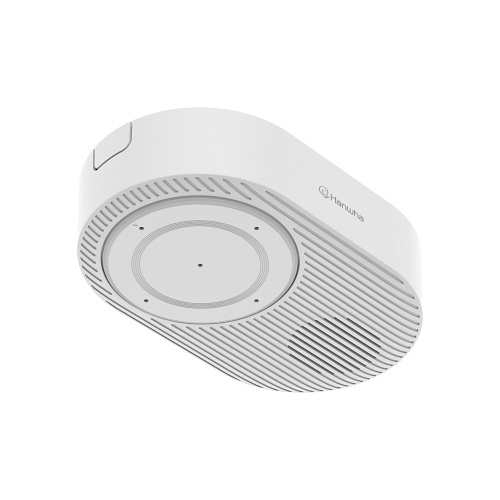

Audio Beacon – Speaker with Max. Sound Pressure Level 90dB at 1m(3.28ft) and Frequency Range of 144Hz~20kHz, 5 Digital Microphones with Two-Way/One-Way selectable, Full Duplex communication with Echo Cancellation and Noise Reduction. Sound Classification (Glass Break, Scream, Extreme Decibel Event, Event Metadata (Sound Direction, Confidence, Audio Clip, dB level), LED Ring(Green, Blue, Red, Pink, Sky blue, Purple), Initial and Post-duration action setting, USB-C for installation app, 2 configurable digital I/O, PoE+, ONVIF Profile S, SUNAPI(HTTP API), Wisenet open platform, AI Sound Classification pack included, Secure element (FIPS 140-3 level3), Indoor Rated, Operating Temperature / Humidity -20°C ~ +55°C (-4°F ~ +122°F) / Less than 90% RH, Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Available as Hanwha Vision part number SPS-A100M.
Technical specifications
Video
| Specification |
Value |
| Resolution |
1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate — H.265/H.264 |
10fps |
| Max. Framerate — MJPEG |
5fps |
| Max. Framerate — Others |
Static image video |
| Video Out |
USB: Micro USB Type C, setting true north point using Wisenet installation |
Operational
| Specification |
Value |
| Alarm Interface |
2 configurable I/O ports |
| Alarm Triggers |
Analytics, Network disconnect, Alarm input, App event(Sound classification), Time schedule, MQTT subscription, Case tampering |
| Audio Streaming |
Two-way/one-way selectable, Full duplex, Echo cancellation, Noise reduction |
| Alarm Events When Alarm Trigger Occurred |
File upload(audio): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback(6MB, WAV), MQTT: publication, LED, Speaker |
| Audio In |
Built-in MEMS 5mics |
| Audio Out |
Built-in speaker, Max. Sound Pressure Level 90dB at 1m(3.28ft), Frequency Range: 144Hz~20kHz |
| Light Type |
LED Ring(Green, Blue, Red, Pink, Sky blue, Purple), for event action |
Analytics
| Specification |
Value |
| Analytics Events Based on AI Engine |
Sound classification |
| Classified Sound Type |
Crashing glass, Screaming, Vehicle horn, Tire screech |
| Event Metadata |
Sound type, Sound direction, Confidence, Timestamp, Best sound(audio file), dB(±10dB) |
| Sound Direction |
Ceiling mounting: ±15 degrees |
Network
| Specification |
Value |
| Ethernet |
RJ-45(10/100 BASE-T) |
| Audio Compression |
G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 16kHz(48kbps) |
| Streaming — Unicast |
Up to 6 users |
| Streaming — Multicast |
Support |
| Streaming — Multiple Streaming |
Up to 6 profiles |
| Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT, SIP 2.0(RFC 3261 and companion RFCs) |
| Application Programming Interface — ONVIF |
S |
| Application Programming Interface — Others |
SUNAPI(HTTP API), Hanwha Vision Open Platform, AI Sound Classification pack included |
Security
| Specification |
Value |
| OS / Firmware Protect |
Encrypted firmware, Secure boot, Signed firmware |
| User authentication |
Digest authentication, Prevent brute-force attack |
| Network authentication |
IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication |
SRTP, HTTPS, WSS(WebSocket Secure) |
| Access Control |
IP-based access control |
| Data Protect |
Encryption credentials, Encrypt compress for live recording file export |
| Audit |
Access / System / Event Log management |
| Device ID |
Device certificate(Hanwha Vision Root CA) |
| Secure Storage |
Secure element |
| Security Certificate |
Secure element(FIPS 140-3 level3, CC EAL6+) |
General
| Specification |
Value |
| Memory — RAM |
4GB |
| Memory — Flash |
512MB |
Environmental & Electrical
| Specification |
Value |
| Operating Condition — Temperature |
-20°C~+55°C(-4°F~+122°F) |
| Operating Condition — Humidity |
0~90% RH(non-condensing) |
| Storage Condition — Temperature |
-50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity |
0~90% RH(non-condensing) |
| Input Voltage |
PoE+(IEEE802.3at, Class4) |
| Power Consumption — PoE |
Max 18.5W, typical 8.2W |
Mechanical
| Specification |
Value |
| Color |
White |
| Material |
Plastic, Aluminum |
| RAL Code |
RAL9003 |
| Product Dimensions |
215.1(W)x135.1(D)x52.8(H)mm(8.47"x5.32"x2.08") |
| Product Weight |
973g(2.15 lb) |
| Compatible Conduit Hole |
Support conduit compatibility via optional adaptor |
| Compatible Gang Box |
Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification |
Value |
| EMC |
FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A |
| Safety |
UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC/EN 62471 |
| Environment |
IEC/EN 63000 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
