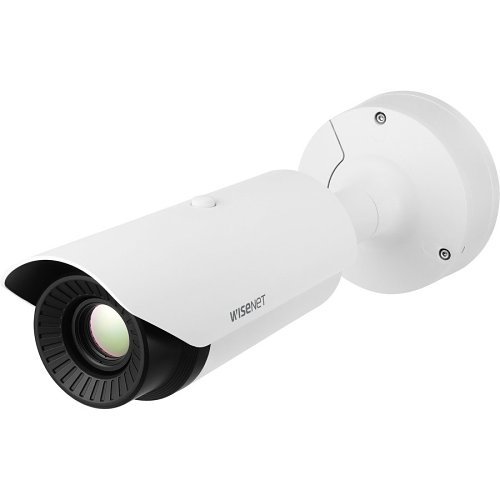

Hanwha TNO-3050T QVGA Thermal Bullet
, ,

Hanwha TNO-3050T QVGA Thermal Bullet

QVGA Thermal Bullet

$6,250.00 USD

Request a quote

QVGA Thermal camera, Max. 320 x 240 resolution support, built-in 35mm fixed lens, H.265, H.264, MJPEG codec, Max. 30fps@all resolutions, full video and audio analytics, temperature detection, shock detection, micro SD Max. 256GB, Hallway View, WiseStreamII, PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10
This product is subject to the Thermal agreement.

Product notes: Limited Stock; Recommended replacement; TNO-C3060T; Special Order; Non-cancellable/Non-returnable.

Available as Hanwha Vision part number TNO-3050T.

Technical specifications

Video

Specification Value
Imaging Device — Type Uncooled micro bolometer (320×240)
Resolution 320×240
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 30fps
Spectral Range 8~14㎛
NETD ≤60mK
Pixel Size 12㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 35
Max Aperture Ratio (F number) — Wide 1.0
Angular Field of View — Horizontal 6.3°
Angular Field of View — Vertical 4.7°
Angular Field of View — Diagonal 7.8°
iFoV 0.34mRad
Min. Object Distance 51m(167.32ft)
Focus Control Fixed

Operational

Specification Value
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection — Quantity 8ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 32ea
Privacy Masking — Shape Polygonal zones
Privacy Masking — Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out Input 1ea, Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
Audio In Selectable(mic in/line in)
Audio Out Line out
Color Pallettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Analytics

Specification Value
Analytics Events — Normal Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature detection

Network

Specification Value
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 20 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
Application Programming Interface — ONVIF S, G, T
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

Specification Value
OS / Firmware Protect Encrypted firmware
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)

General

Specification Value
Memory — RAM 1GB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 256GB x 1slot

Environmental & Electrical

Specification Value
Operating Condition — Temperature -40°C~+60°C(-40°F~+140°F)
Operating Condition — Humidity 0~90% RH(non-condensing)
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~90% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3), 12VDC, 24VAC
Power Consumption — PoE Max. 8.7W, typical 7.5W
Power Consumption — 12VDC Max. 7.8W, typical 6.7W
Power Consumption — 24VAC Max. 9.2W, typical 8.0W

Mechanical

Specification Value
Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions ø147.51×401.3mm(5.81×15.79")
Product Weight 2742g(6.05lb)

Certifications & Standards

Specification Value
Environment IEC 60529 IP66, NEMA 250 type 4X

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
