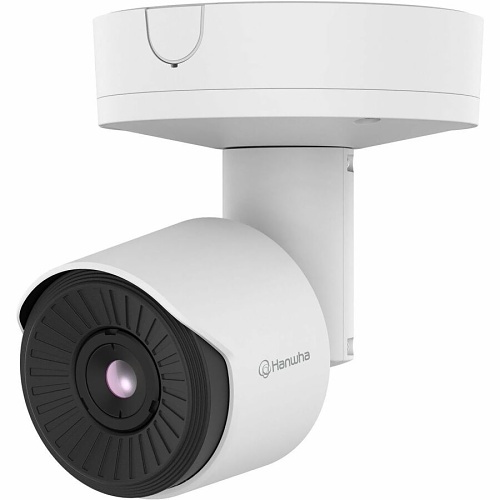

Hanwha TNO-C3012TRA AI QVGA Radiometric Bullet
AI QVGA Radiometric Bullet
$6,329.00 USD
Wisenet T network AI Radiometric compact bullet camera (uncooled), 384 x 288 @ 8fps,＜30mK (NETD), 4.4mm fixed focal lens (HFoV: 90.0°), Triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support, Analytics events based on AI engine: Object detection (Person/Vehicle), Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Analytics events: Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), PTZ handover, Radiometrics: whole FoV area or up 10 user programmable polygonal ROIs, temperature detection range from -40°C to 550°C (-40°F to 1022°F), built-in SD card slot (1x1TB), integrated back box, IP66, NEMA4X, IK10, PoE/12VDC, white color
Product notes: Thermal cameras with frame rates under 9fps versions do not require end user export documentation.
Available as Hanwha Vision part number TNO-C3012TRA.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Type | Uncooled micro bolometer (384×288) |
| Resolution | 768×576, 384×288 |
| Max. Framerate — H.265/H.264 | 8fps |
| Max. Framerate — MJPEG | 8fps |
| Spectral Range | 8~14㎛ |
| NETD | ≤30mK |
| Pixel Size | 17㎛ |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 4.4 |
| Max Aperture Ratio (F number) — Wide | 1.0 |
| Angular Field of View — Horizontal | 90° |
| Angular Field of View — Vertical | 65° |
| Angular Field of View — Diagonal | 119° |
| iFoV | 3.9mRad |
| Min. Object Distance | 0.6m(1.97ft) |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 0°~350° |
| Pan / Tilt / Rotate Range — Tilt | 0°~90° |
| Pan / Tilt / Rotate Range — Rotate | 0°~350° |
Operational
| Specification | Value |
|---|---|
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 6ea |
| Privacy Masking — Shape | Rectangular zones |
| Privacy Masking — Color / Option | Gray, Black, White |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Serial Interface | RS-485 |
| Alarm Interface — In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Vehicle |
| Thumbnail | BestShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Analytics Events — Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), Tank level detection |
Radiometry
| Specification | Value |
|---|---|
| Temperature Detect Range | -40°C~550°C |
| Temperature Accuracy | ±2°C(≤150°C), ±15%(>150°C) |
| Temperature Detection ROI Zones — Quantity | 10ea |
| Temperature Detection ROI Zones — Shape / Option | Polygonal |
| Hybrid Pallettes | Support |
| Spot Temperature Reading | Support |
| ROI Condition Monitoring | Above, Below, Increase, Decrease |
Network
| Specification | Value |
|---|---|
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamⅡ, WiseStreamⅢ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Specification | Value |
|---|---|
| Memory — RAM | 2GB |
| Memory — Flash | 512MB |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -40°C~+60°C(-40°F~+140°F) |
| Operating Condition — Humidity | 0~95% RH(non-condensing) |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~95% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption — PoE | Max. 10.8W, typical 9W |
| Power Consumption — 12VDC | Max. 9.4W, typical 7.7W |
Mechanical
| Specification | Value |
|---|---|
| Color | White |
| Material | Aluminum, PC(Polycarbonate) |
| RAL Code | RAL9003 |
| Product Dimensions | ø93.8×233.5mm(ø3.69×9.19") |
| Product Weight | 1700g(3.75lb) |
| Compatible Conduit Hole | Support conduit compatibility via optional adaptor |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X |
DRI (Johnson's Criteria)
| Specification | Value |
|---|---|
| Detection — Person(1.67PPM) | 115m(378ft) |
| Detection — Vehicle(0.65PPM) | 294m(966ft) |
| Recognition — Person(6.67PPM) | 29m(94ft) |
| Recognition — Vehicle(2.61PPM) | 74m(241ft) |
| Identification — Person(13.33PPM) | 14m(47ft) |
| Identification — Vehicle(5.22PPM) | 37m(121ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202409 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
