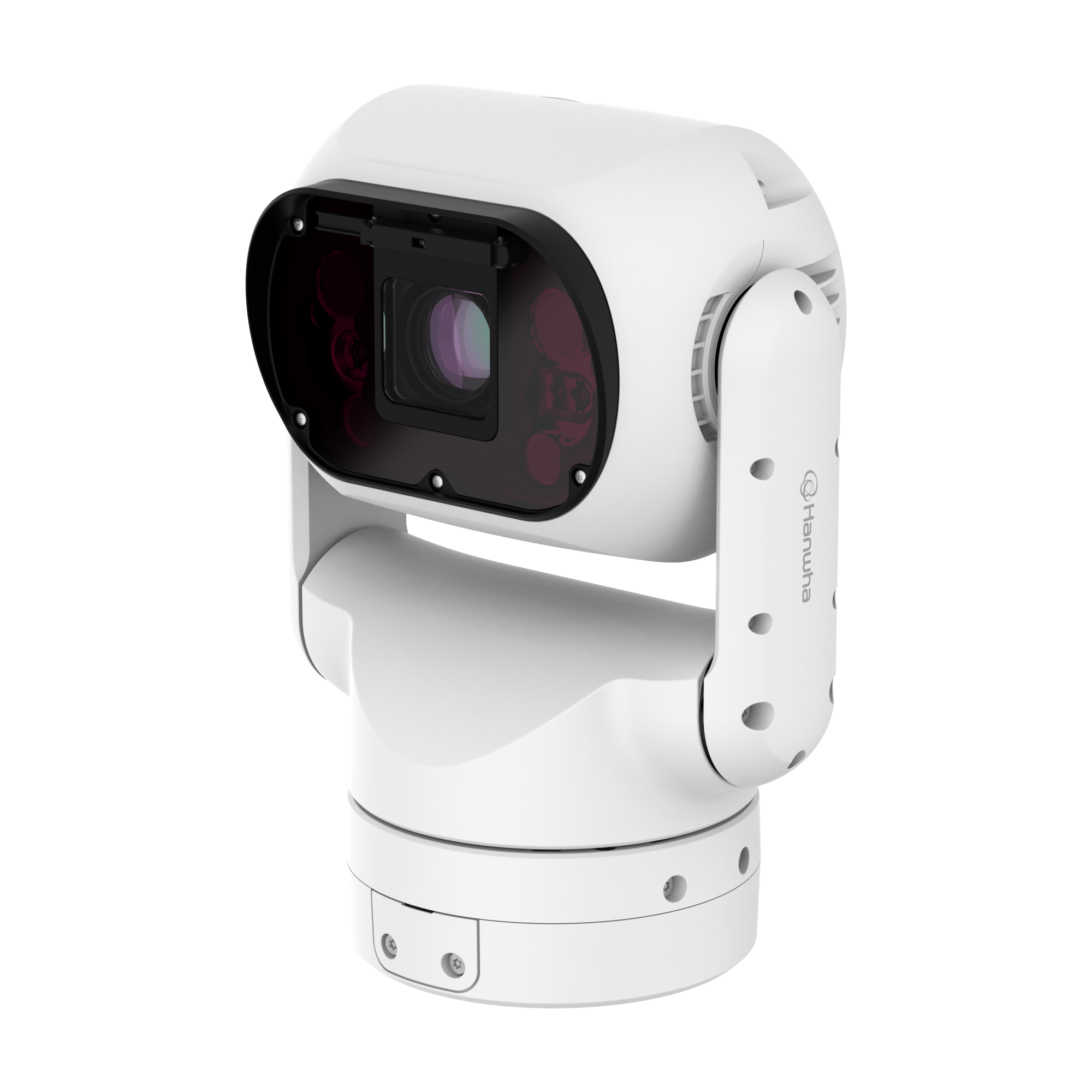

Hanwha TNP-A9430RW 4K AI IR, Ruggedized PTZ Positioning Camera
4K AI IR, Ruggedized PTZ Positioning Camera
$11,159.00 USD
Powered by WN9, AI Ruggedized PTZ Positioning Camera, 8MP resolution @ 30FPS, 6.1mm~262.4mm(43x) autofocus lens, Adaptive Wise IR (500m), extremeWDR 120dB, Day & Night (ICR), H.265/H.264/MJPEG codec, Optical image stabilization, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine: Motion & Object detection, Line crossing(Crossing/Direction), IVA area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Slip & Fall, Classified object types: (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: type/color), BestShot, Analytics events (Tampering, Shock detection, Audio detection), AI object auto-tracking (Person/Vehicle) with target lock tracking, Secure element with FIPS 140-3 level3, Built-in microSD card slot (Up to 1TB), IP66/IP68, IK10 (except window), NEMA 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9), MIL-STD-810H ASTM B117, Operating temp: -50°C~+60°C (-58°F~+140°F), Wind load 257km/h (160mph), Power: HPoE (injector included), Metal shielded RJ-45, White.
Available as Hanwha Vision part number TNP-A9430RW.
Technical specifications
Video
| Specification | Value |
|---|---|
| Imaging Device — Size | 1/1.8" |
| Imaging Device — Type | CMOS |
| Resolution | 3840×2160, 3328×1872, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate — MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) | 0.06 Lux(F1.69, 1/30sec, 30 IRE) |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) | 0.006 Lux(F1.69, IR LED Off), 0Lux (IR LED On) |
Lens
| Specification | Value |
|---|---|
| Focal Length (mm) | 6.1~262.4 |
| Zoom Ratio — Optical | 43 |
| Zoom Ratio — Digital | 1367 |
| Max Aperture Ratio (F number) — Wide | F1.69 |
| Max Aperture Ratio (F number) — Tele | F4.92 |
| Angular Field of View — Horizontal | 63.62˚(Wide)~1.77˚(Tele) |
| Angular Field of View — Vertical | 37.69˚(Wide)~0.99˚(Tele) |
| Angular Field of View — Diagonal | 70.9˚(Wide)~2.05˚(Tele) |
| Min. Object Distance | 5m(16.4ft) |
| Focus Control | Auto, Manual, Oneshot AF, Focus save |
| Lens Type | P iris(IR corrected) |
Pan / Tilt / Rotate
| Specification | Value |
|---|---|
| Pan / Tilt / Rotate Range — Pan | 360° Endless |
| Pan / Tilt / Rotate Range — Tilt | Upright: 140°(50°~-90°), Canted: 165°(75°~-90°), Inverted: 140°(90°~-50°) |
| Pan Speed — Preset | Max. 160°/sec |
| Pan Speed — Manual | 0.024°/sec~160°/sec |
| Tilt Speed — Preset | Max. 160°/sec |
| Tilt Speed — Manual | 0.024°/sec~160°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.07° |
Operational
| Specification | Value |
|---|---|
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRâ…¡(Based on AI engine), SSNRâ…¤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Optical Image Stabilization | Support |
| Defog | Support |
| Motion Detection — Quantity | 8ea |
| Motion Detection — Shape | 8point Polygonal zones |
| Privacy Masking — Quantity | 32ea |
| Privacy Masking — Shape | 4point Quadrangle zones |
| Privacy Masking — Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Privacy Masking — Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| Electronic Shutter — Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter — Speed Range | 2~1/30,000sec |
| Video Rotation | Flip&Mirror |
| Installation Direction | Upright, Inverted, Canted |
| Alarm Interface — Others | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Support via optional I/O box |
| Audio Out | Support via optional I/O box |
| Light Type | IR LED |
| Light Viewable Length — IR | 500m(1,640.42ft) |
| IR Wavelength | 850nm |
| Water Removal | Support(with Wiper) |
| Ice Removal | Window, Pan |
| Auto Tracking | Support, Object auto tracking(Person/Vehicle), Target lock tracking |
Analytics
| Specification | Value |
|---|---|
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes — Person | Upper/Lower clothes color, Gender, Bag |
| Attributes — Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes — Face | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events — Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking |
| Analytics Events — Normal | Tampering, Audio detection, Shock detection |
Network
| Specification | Value |
|---|---|
| Ethernet | RJ-45 Push-pull Connector(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast | Up to 20 users |
| Streaming — Multicast | Support |
| Streaming — Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205, Syslog |
| Application Programming Interface — ONVIF | S, G, T, M |
| Application Programming Interface — Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
Security
| Specification | Value |
|---|---|
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| Specification | Value |
|---|---|
| SoC — Type | Wisenet 9 |
| SoC — Dual NPU | Support |
| Memory — RAM | 4GB |
| Memory — Flash | 8GB eMMC |
| Edge Storage — Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) — Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Specification | Value |
|---|---|
| Operating Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Operating Condition — Humidity | 0~100% RH(condensing) |
| Operating Condition — Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition — Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition — Humidity | 0~90% RH(non-condensing) |
| Wind Load | Sustained 257km/h (160mph) |
| EPA(Effective Projected Area) | 0.095㎡ |
| Input Voltage | PoE++(IEEE802.3bt type4, Class8) |
| Power Consumption — PoE | Max 71W, Typical 33.2W |
| WisePower | Power mode, Power monitoring, Eco mode |
Mechanical
| Specification | Value |
|---|---|
| Color | White, Black |
| Material | Aluminum, PC(Polycarbonate), ITO Glass |
| Material Management — Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003, RAL9005 |
| Product Dimensions | Upright Normal/Inverted : 293.4(W)x205.6(D)x399.9(H)mm (11.55×8.09×15.74") Upright Canted : 293.4(W)x301.9(D)x363.6.9(H)mm (11.55×11.89×14.31") |
| Product Weight | 10.5kg(9.5kg: Excluding installation part) |
Certifications & Standards
| Specification | Value |
|---|---|
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 55035 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471, IEC/EN/UL 62368-1 GS UL cUL CE FCC VCCI CB |
| Environment | IEC 60529 IP66, IEC 60529 IP68, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 503.7, MIL-STD-810H 505.7, MIL-STD-810H 506.6, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 510.7, MIL-STD-810H 521.4, IEC |
DORI (EN62676-4 standard)
| Specification | Value |
|---|---|
| Detect (25PPM/ 8PPF) — Wide | 123.8m(406.23ft) |
| Detect (25PPM/ 8PPF) — Tele | 4972m(16311ft) |
| Observe (63PPM/ 19PPF) — Wide | 49.5m(162.49ft) |
| Observe (63PPM/ 19PPF) — Tele | 1989m(6525ft) |
| Recognize (125PPM/ 38PPF) — Wide | 24.8m(81.25ft) |
| Recognize (125PPM/ 38PPF) — Tele | 994.3m(3262ft) |
| Identify (250PPM/ 76PPF) — Wide | 12.4m(40.62ft) |
| Identify (250PPM/ 76PPF) — Tele | 497.2m(1631ft) |
Ver
| Specification | Value |
|---|---|
| Ver | 202509 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
