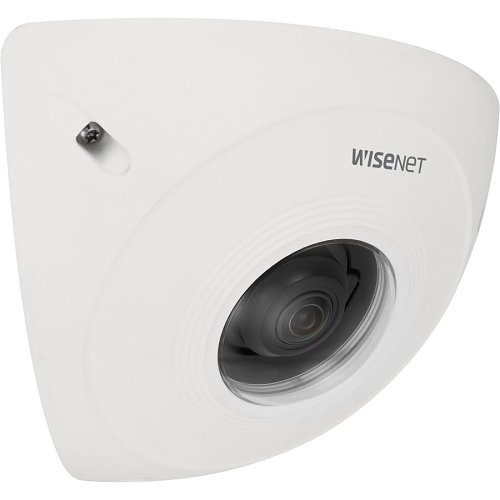

Hanwha TNV-8011C 5MP Compact corner mount camera
,

Hanwha TNV-8011C 5MP Compact corner mount camera

5MP Compact corner mount camera

$900.00 USD

Request a quote

Compact corner mount camera, 5MP @ 30fps, triple codec, WDR 120dB, 2.3mm fixed, USB and CVBS, true D/N, built-in SD card slot (1x128GB), hallway view, HLC, defog detection, PoE, Audio-in/Audio-out, Wisenet open platform
IP66, IP6K9K, IK10, video analytics- Defocus, Directional, Motion, Enter/Exit, Tampering, Virtual line, Audio

Available as Hanwha Vision part number TNV-8011C.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Resolution 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate — H.265/H.264 30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG 15fps
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.1
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.02
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification Value
Focal Length (mm) 2.3
Max Aperture Ratio (F number) — Wide 2.3
Angular Field of View — Horizontal 131°
Angular Field of View — Vertical 93.4°
Angular Field of View — Diagonal 174°
Focus Control Fixed

Operational

Specification Value
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction SSNR
Digital Image Stabilization Support
Defog Support
Motion Detection — Quantity 4ea
Motion Detection — Shape 8point Polygonal zones
Privacy Masking — Quantity 6ea
Privacy Masking — Shape Rectangular zones
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
LDC Support
Electronic Shutter — Mode Minimum, Maximum, Anti flicker
Electronic Shutter — Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out Input 1ea, Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
Audio In Selectable(mic in/line in)
Audio Out Line out

Analytics

Specification Value
Analytics Events — Normal Defocus detection, Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)

Network

Specification Value
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast Up to 6 users
Streaming — Multicast Support
Streaming — Multiple Streaming Up to 3 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PIM-SM
Application Programming Interface — Others SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

Specification Value
OS / Firmware Protect Encrypted firmware
User authentication Digest authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure Communication HTTPS, SRTP
Access Control IP-based access control
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt(AES-256)

General

Specification Value
Memory — RAM 512MB
Memory — Flash 256MB
Edge Storage — Micro SD/SDHC/SDXC Max. 128GB x 1slot

Environmental & Electrical

Specification Value
Operating Condition — Temperature -10°C~+55°C(+14°F~+131°F)
Operating Condition — Humidity 0~95% RH(non-condensing)
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity 0~95% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class2)
Power Consumption — PoE Max 6.49W, typical 4.6W

Mechanical

Specification Value
Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions 170(W)x165(H)x78.8(D)mm(6.69×6.49×3.10")
Product Weight 830g(1.83lb)

Certifications & Standards

Specification Value
EMC FCC 47 CFR 15 Subpart B Class A, CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A
Environment IEC/EN 63000, IEC 60529 IP66, ISO 20653 IP6K9K, IEC 62262 IK10

DORI (EN62676-4 standard)

Specification Value
Detect (25PPM/ 8PPF) — Wide 23.6m(77.51ft)
Observe (63PPM/ 19PPF) — Wide 9.4m(31.00ft)
Recognize (125PPM/ 38PPF) — Wide 4.7m(15.50ft)
Identify (250PPM/ 76PPF) — Wide 2.4m(7.75ft)

Ver

Specification Value
Ver 202409

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
